Electric Cable Reel

Features

• Durable Construction: Made from high-grade materials to withstand heavy-duty use.
• Smooth Operation: Electric model features a chain and sprocket drive powered by an electric motor, while the manual model includes a cam-lock drag brake and removable direct crank rewind.
• Versatile Compatibility: Handles various types of cables, including 12/3 and 10/3 cords.
• High Capacity: Can hold up to 200' of 12/3 cord or 150' of 10/3 cord.
• Adjustable Cam-Lock Brake: Available on crank rewind models for secure operation.
• Optional Strap Brake: Available on power rewind models for enhanced control.

What is it?

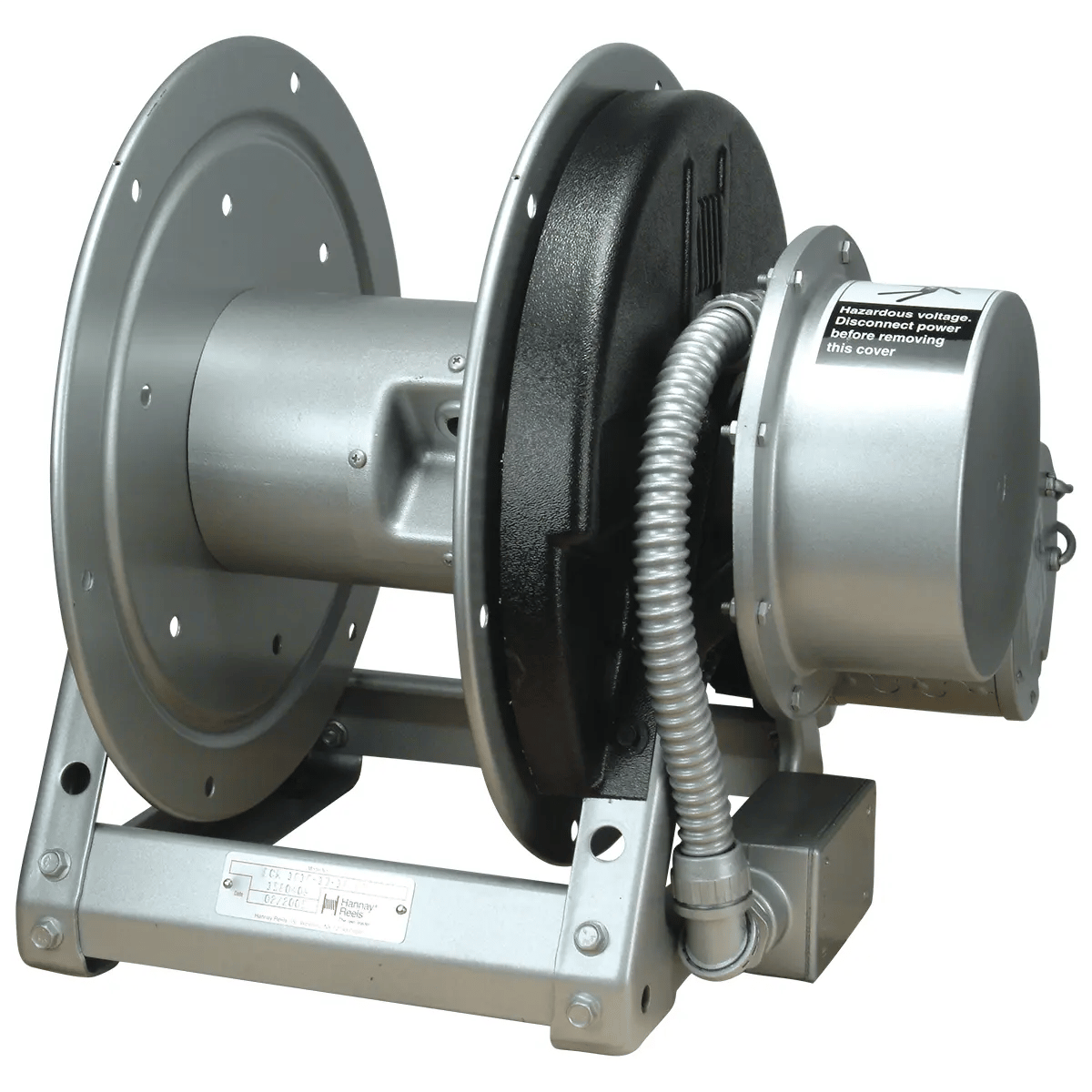

The Hannay Reels Electric Cable Reel with Electric Rewind and Manual Rewind are high-capacity cable reels designed for efficient cable management. They are available in both electric and manual versions to suit different operational needs.

How is it used?

These reels are used to manage cables in various applications, ensuring smooth deployment and retrieval. The electric model uses a chain and sprocket drive powered by an electric motor, while the manual model uses a cam-lock drag brake and removable direct crank rewind for manual operation.

Who uses it?

These reels are used by professionals in various industries, including construction, industrial settings, and emergency services, where reliable cable management is critical.

Tools Needed to Install

• Wrench set
• Screwdriver set
• Socket set
• Pliers

Installation Instructions

• Preparation
  • Ensure the reel is securely mounted and stable.
  • Gather all necessary tools and the reel components.
• Mounting the Reel
  • Position the reel in the designated mounting location.
  • Align the mounting holes on the reel with the corresponding holes on the mounting surface.
• Secure the Reel
  • Insert the bolts through the mounting holes and secure them with nuts.
  • Use a wrench or socket to tighten the bolts, ensuring the reel is firmly attached.
• Connecting the Cable
  • Attach the cable to the reel's inlet and outlet connections.
  • Ensure all connections are secure and leak-free.
• Testing the Operation
  • For the electric model, connect the power supply and test the motor operation.
  • For the manual model, test the crank rewind mechanism to ensure smooth operation.
• Maintenance Information
  • Regular Inspection: Periodically check for signs of wear or damage.
  • Cleaning: Keep the reel and cable clean from debris.
  • Lubrication: Apply appropriate lubricants to moving parts to maintain efficiency.

What is it used with?

The Hannay Reels Electric Cable Reel with Electric Rewind and Manual Rewind are used with various types of cables for different applications, including construction, industrial settings, and emergency services.

Real-Life Examples

• Construction Sites: Ensures quick deployment and retrieval of electrical cables for tools and machinery.
• Industrial Settings: Facilitates the handling of cables for power distribution and equipment operation.
• Emergency Services: Manages cables for lighting and power supply during rescue operations.

Material Used

The reels are constructed from high-grade steel and durable polymers, providing resistance to harsh conditions and ensuring long-lasting performance.
