Task Force Tips
EF1 RC Monitor - 200 GPM (750 LPM), 2″ NPT Swivel Inlet & Rigid Outlet, 12/24 VDC, RS485
SKU#: BP037
Typically ships in 7-8 weeks
Ships via Standard Ground
High‑performance 200 GPM remote-controlled wildland firefighting monitor with 2″ NPT swivel inlet and rugged anodized aluminum construction.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase

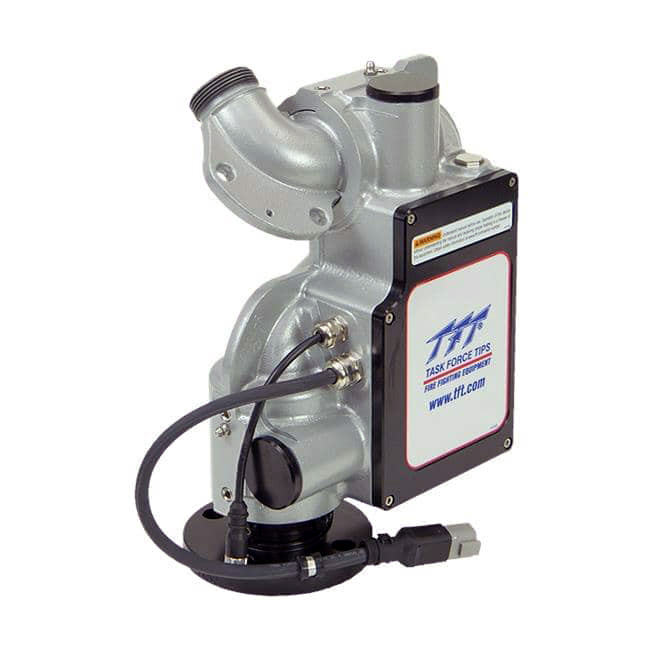

The EF1™ Remote-Controlled Monitor is a compact, high‑performance firefighting monitor engineered specifically for wildland and interface operations. Built from hard coat anodized aluminum and measuring just 12.6" tall, it delivers powerful water flow in a rugged, space‑efficient design ideal for forestry bumper turrets, off‑road firefighting vehicles, and harsh operational environments.
Features
- High‑Performance Flow: Supports up to 200 GPM (757 LPM) for demanding wildland and interface firefighting needs
- Compact Design: At only 12.6" tall and 6.1" deep, it fits easily onto forestry and off‑road applications
- Durable Construction: Hard coat anodized aluminum with powder‑coated finish ensures long‑lasting durability
- Wide Travel Range: 270° horizontal travel and 135° vertical travel for broad directional coverage
- Programmable Features: Park and oscillation modes enhance operational flexibility
- Easy Installation: Single factory‑installed plug and compatibility with multiple inlet and outlet configurations
- Waterproof Components: Sealed electric drives and control box protect from water, dust, and environmental exposure
- Adjustable Travel Stops: Horizontal stops can be tuned for a restricted 180° range when needed
How Is It Used?
The EF1 is mounted on wildland firefighting vehicles, forestry trucks, and off‑road units where compact yet powerful remote‑controlled water delivery is required. Operators control horizontal and vertical movement electronically using RS485 protocol, enabling precise aim and consistent flow in challenging terrain.
Who Uses It?
Wildland firefighters, forestry service teams, municipal departments with interface apparatus, and emergency response units use the EF1 for its powerful flow, compact profile, and rugged reliability.
Maintenance Information
Routine checks include verifying the integrity of sealed electric drives, ensuring travel stops remain properly set, and inspecting the inlet/outlet threads. Periodic cleaning of exterior surfaces and confirmation of electrical connections help maintain long‑term performance.
Storage Information
Store in a clean, dry environment when not mounted on apparatus. Protect the monitor from prolonged exposure to corrosive elements to extend service life.
What Is Included
- EF1™ Remote-Controlled Monitor
- Factory‑installed wiring plug
- Standard mounting configuration
- 2" NPTF Swivel Rocker Inlet
- Rigid NPT male outlet
- Color: Silver
- Brand: EF1™
- Product Dimensions (L × W × H in): 5.8 × 9.2 × 13.7
- Product Dimensions (L × W × H mm): 147.3 × 233.7 × 348.0
- Weight: 17.300 lbs
- Bundle: Monitor Only
- Monitor Type: Standard Mounting
- Electronic Protocol: RS485
- Accessory Power: 12/24 VDC
- Supply Size (Imp): 2"
- Supply Size (Met): 52 mm
- Supply Type: NPT Female
- Supply Style: Rocker
- Supply Swivel: Swivel
- Horizontal Control: Electronic
- Horizontal Range: 270°
- Vertical Control: Electronic
- Vertical Range: -45° to 90°
- Control: Remote Control
- Supply Inlets: Single
- Outlet Size (Imp): 1.5"
- Outlet Size (Met): 38 mm
- Outlet Type: NH Male
- Outlet Style: Male Threads
- Outlet Swivel: Rigid
- Max Flow Rate: 200 GPM (750 LPM)
- Swing Radius (in): 7
- Swing Radius (mm): 177.8
- Model: Y1-E82A
