Pressure/Suction Elbow – 90°
Compact 90° pressure suction elbow, anodized aluminum, 250 PSI, NFPA compliant. Multiple NH and Storz swivel options for firefighting fluid transfer.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- Durable Construction: Cast and anodized aluminum, powder-coated for abrasion and corrosion resistance.
- High-Pressure Rated: 250 PSI working pressure for demanding fire suppression applications.
- NFPA Compliant: Meets or exceeds NFPA standards for safety and reliability.
- Versatile Fitment: Offers NH swivel and rocker lug, Storz couplers in multiple inlet/discharge sizes for customization.
- Compact Design: 90° angle allows installation in confined spaces without sacrificing flow.
- Swivel Handles: Long-handle or rocker-lug options enable quick connection and ease of use.
What is it?

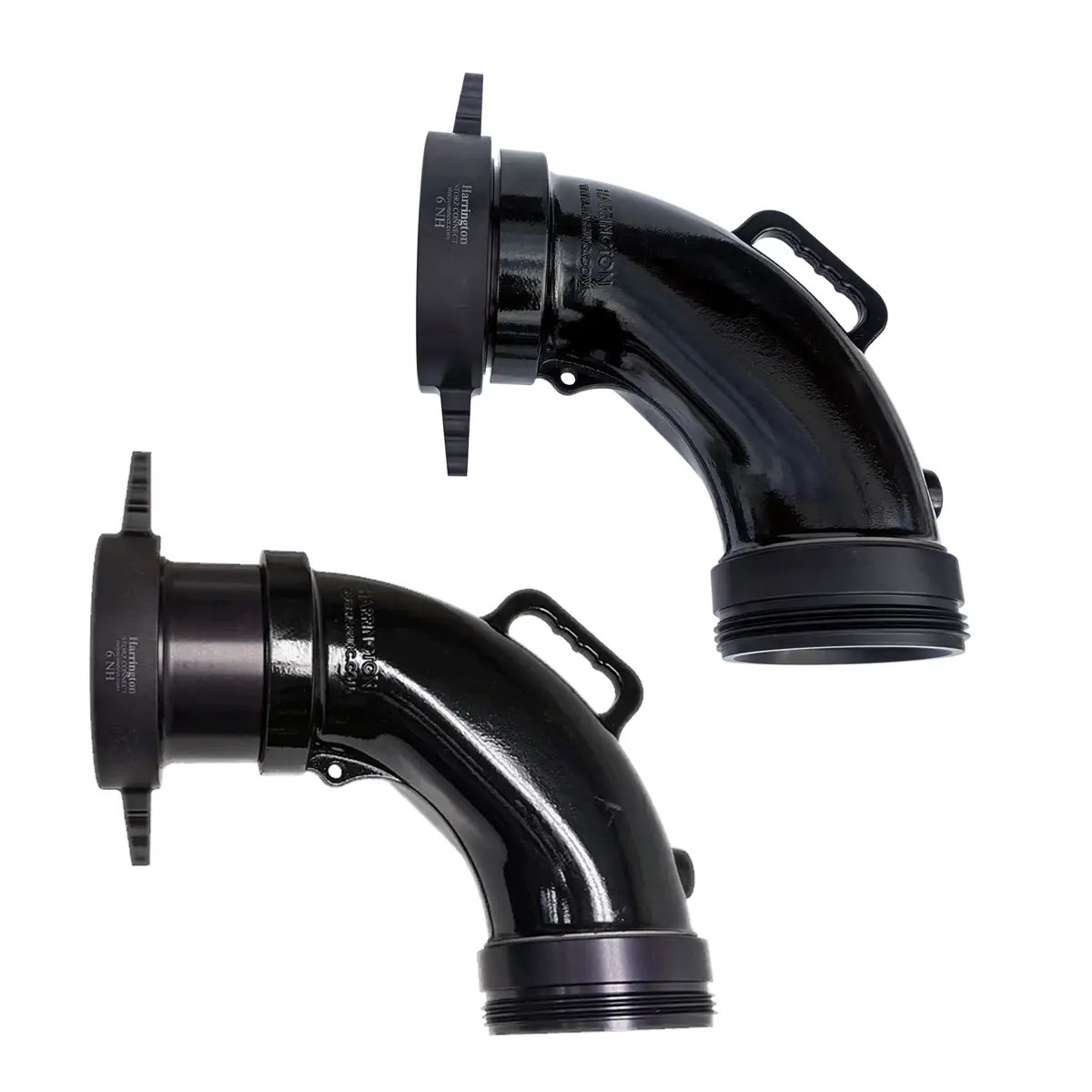

The 90° Pressure Suction Discharge Elbow is a compact, aluminum 90-degree elbow designed to transition between suction and discharge connections on fire pumps, folding tanks, or secondary pumpers. Engineered for high-volume fluid transfer in tight spaces, this elbow maintains clear access lanes while delivering efficient flow.
How is it used?
It's threaded directly onto pump suction or discharge ports, often used where a sharp change in direction is required but space is limited. Ideal for firefighting apparatus, tank fill operations, or emergency water relay systems.
Who used it?
Fire departments, industrial fire suppression teams, and municipal emergency services rely on this elbow due to its rugged construction and compliance with NFPA standards.
Maintenance information
This elbow requires minimal upkeep, periodic inspection for wear or corrosion, lubrication of swivel joints, and cleaning after exposure to debris or chemicals. Replace O-rings or seals as needed to maintain rated working pressure.
What is it used with?
It pairs seamlessly with NH (National Hose) male/female swivel or rocker lug couplings, Storz couplers, hard suction hoses, folding water tanks, and fire pump intakes/discharges.
What material is it made from?
Constructed of military Type III anodized aluminum for valve and connectors, with a cast aluminum body featuring a black anodized and powder-coated finish for superior corrosion and abrasion resistance.
- Pressure Rating: 250 PSI working pressure
- Compliance: Meets or exceeds all NFPA standards
- Connections: 4″–6″ NH male(s) and 4″–6″ NH female swivel or rocker lug or Storz configurations
- Finish: Anodized and powder-coated black cast aluminum
- Configurations Available:
- 5″ NH Male × 5″ NH Female Swivel – Long Handle
- Model: HPSE90-50NHM-50NHFSLH
- 5″ Storz × 5″ Storz Swivel
- Model: HPSE90-50ST-50ST/S
- 5″ Storz Lock × 6″ NH Female Swivel – Long Handle
- Model: HPSE90-50ST-60NHFSLH
- 6″ NH Male × 5″ NH Female Swivel – Long Handle
- Model: HPSE90-60NHM-50NHFSLH
- 6″ NH Male × 6″ NH Female Swivel – Rocker Lug
- Model: HPSE90-60NHM-60NHFSRL
- 6″ NH Male × 6″ NH Female Swivel – Long Handle
- Model: HPSE90-60NHM-60NHFSLH
- 6″ NH Male × 6″ NH Female Swivel – Long Handle – 3″ Extension
- Model: HPSE90-3-60NHM-60NHFSLH
- 6″ NH Male × 6″ NH Female Swivel – Long Handle – 6″ Extension
- Model: HPSE90-6-60NHM-60NHFSLH
