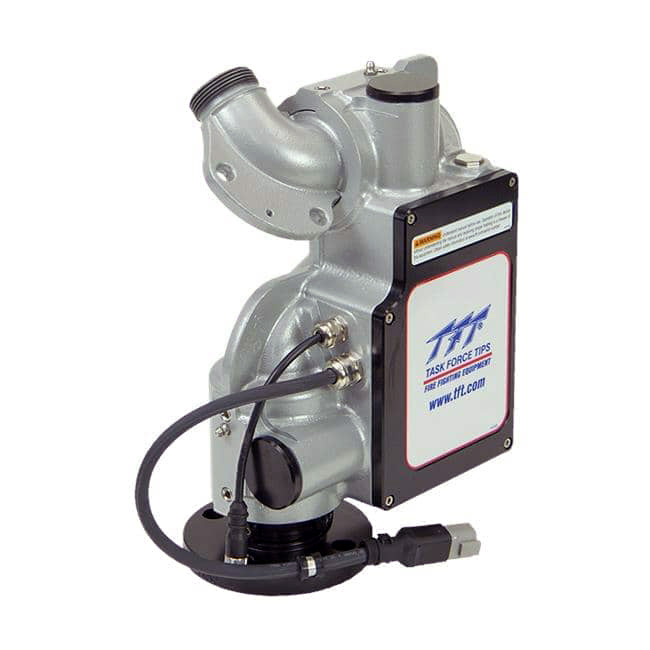

The EF1™ Remote-Controlled Monitor family consists of compact, rugged, high‑performance firefighting monitors designed for wildland, interface, and off‑road applications. Each EF1 monitor delivers up to 200 GPM (757 LPM) and is engineered with hard coat anodized aluminum to withstand extreme environments. With waterproof electronic components, programmable park and oscillation modes, and a small footprint ideal for forestry bumper turrets, the EF1 line provides reliable and precise remote‑controlled water delivery across a variety of firefighting apparatus configurations.

Features

• High‑Performance Flow: Supports up to 200 GPM (757 LPM) for effective wildland, forestry, and interface firefighting
• Compact Design: Approximately 12.6" tall with a low‑profile, space‑saving footprint suited for off‑road vehicles
• Durable Construction: Hard coat anodized aluminum body with powder‑coated finish engineered for harsh environments
• Wide Travel Range: Offers 270° horizontal rotation and 135° vertical travel for versatile coverage and precise stream positioning
• Programmable Features: Park and oscillation modes enable enhanced control and automated movement options
• Easy Installation: Factory‑installed wiring and compatibility with multiple inlet and outlet configurations across the family
• Waterproof Components: Sealed electric drives and control box protect critical components from water, dust, and debris
• Adjustable Travel Stops: Horizontal stops can be configured to restrict movement to a 180° arc when required

How Is It Used?

EF1 monitors are mounted on wildland fire apparatus, forestry equipment, and off‑road firefighting vehicles to provide accurate, remotely controlled water flow. Operators use electronic controls via RS485 to direct both horizontal and vertical movement, ensuring precise targeting in rugged, variable terrain.

Who Uses It?

Wildland firefighters, forestry service teams, municipal and rural interface departments, and specialized off‑road emergency response units use EF1 monitors for their reliable performance, compact build, and rugged durability.

Maintenance Information

Maintenance includes inspecting electric drives and control components, ensuring inlet and outlet threads are clean and intact, verifying travel stop settings, and checking overall rotation and tilt performance. Cleaning exterior surfaces and confirming secure electrical connections support long-term dependability.

Storage Information

Store the monitor in a clean, dry environment when not installed on apparatus. Avoid extended exposure to corrosive elements to protect the anodized finish and electronics.

What Is Included

• EF1™ Remote-Controlled Monitor
• Factory‑installed wiring plug
• Standard mounting configuration
• Rigid outlet
