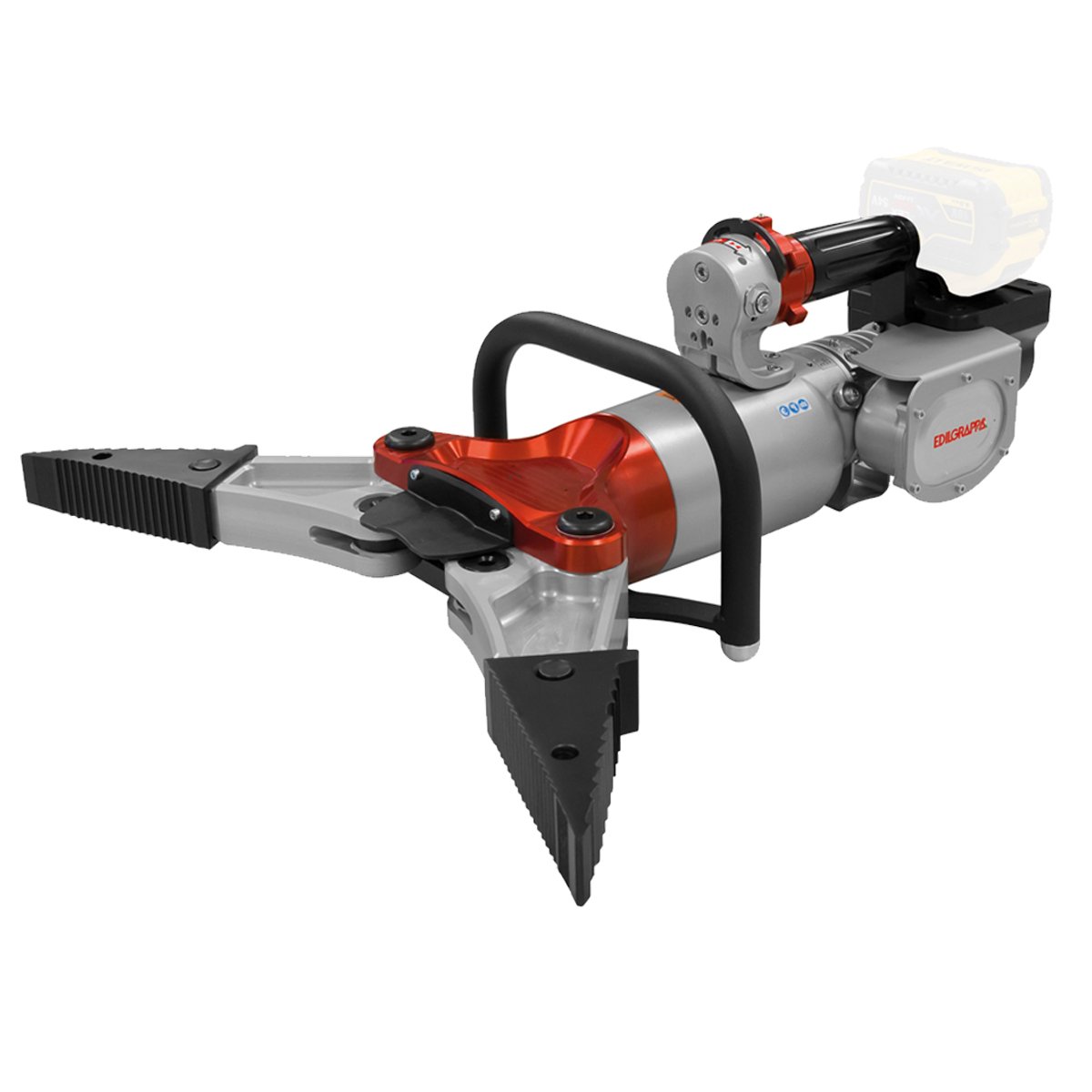

DE625N-E Battery Powered Hydraulic Spreader
SKU#: BP962
10-week lead time
State-of-the-art tool designed for efficient and powerful vehicle extrication and rescue operations. Battery and charger not included. Certified Compliant with NFPA 1936 - Current Edition.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
This spreader combines lightweight design with robust performance, making it an essential addition to any rescue team’s toolkit.
Features
- Lightweight and Powerful: Weighing only 21.5 kg, the DE625N-E delivers a formidable spreading force of 174 kN (17.7 tons), ensuring it can handle the toughest tasks with ease.
- Impressive Spreading Distance: With a maximum spreading distance of 625 mm, this tool is capable of addressing a wide range of extrication scenarios.
- High Performance: The spreader operates at a working pressure of 70 MPa (700 bar), providing consistent and reliable performance.
- Brushless Motor: Equipped with a 54V/60V brushless motor, the spreader ensures efficient and long-lasting operation.
- Compact Dimensions: When closed, the tool measures 787 x 282 x 244 mm, and when open, it measures 701 x 625 x 244 mm, making it easy to handle and store.
Performance Metrics
- Highest Spreading Force (HSF): 60.6 kN (6.2 tons)
- Lowest Spreading Force (LSF): 32.9 kN (3.4 tons)
- Highest Force (HPF): 46 kN (4.7 tons)
- Lowest Force (LPF): 26 kN (2.7 tons)
- Squeezing Force: 69 kN (7.0 tons)
Applications
The DE625N-E is ideal for urban search and rescue (USAR) operations, vehicle extrication, and other emergency scenarios. It complements other battery-powered hydraulic rescue equipment such as cutters, rams, combi-tools, and pedal cutters, providing a comprehensive solution for rescue professionals.
Certification and Compliance
- EN 13204 Classification: AS 45/625-19
- Certified Compliant with NFPA 1960 - Current Edition.
The DE625N-E Cordless Battery-Powered Spreader is a testament to Edilgrappa’s commitment to innovation and quality in rescue equipment. Its combination of power, portability, and precision makes it an invaluable asset for any rescue operation
- Dimensions (L x W x H): 31.0 in x 11.1 in x 9.6 in (787 mm x 282 mm x 244 mm)
- Weight (without battery): 47.4 lb (21.5 kg)
- Weight (with battery): 49.7 lb (22.5 kg)
- Max spreading distance: 24.6 in (625 mm)
- Max spreading force: 39,120 lb (174 kN)
- Highest spreading force (HSF): 13,620 lb (60.6 kN)
- Lowest spreading force (LSF): 7,410 lb (32.9 kN)
- Highest pulling force (HPF): 10,350 lb (46.0 kN)
- Lowest pulling force (LPF): 5,850 lb (26.0 kN)
- Protection rating: IP54
- Model: 150.03625
*Dimensions and weight without battery
Battery and charger not included
