Darley

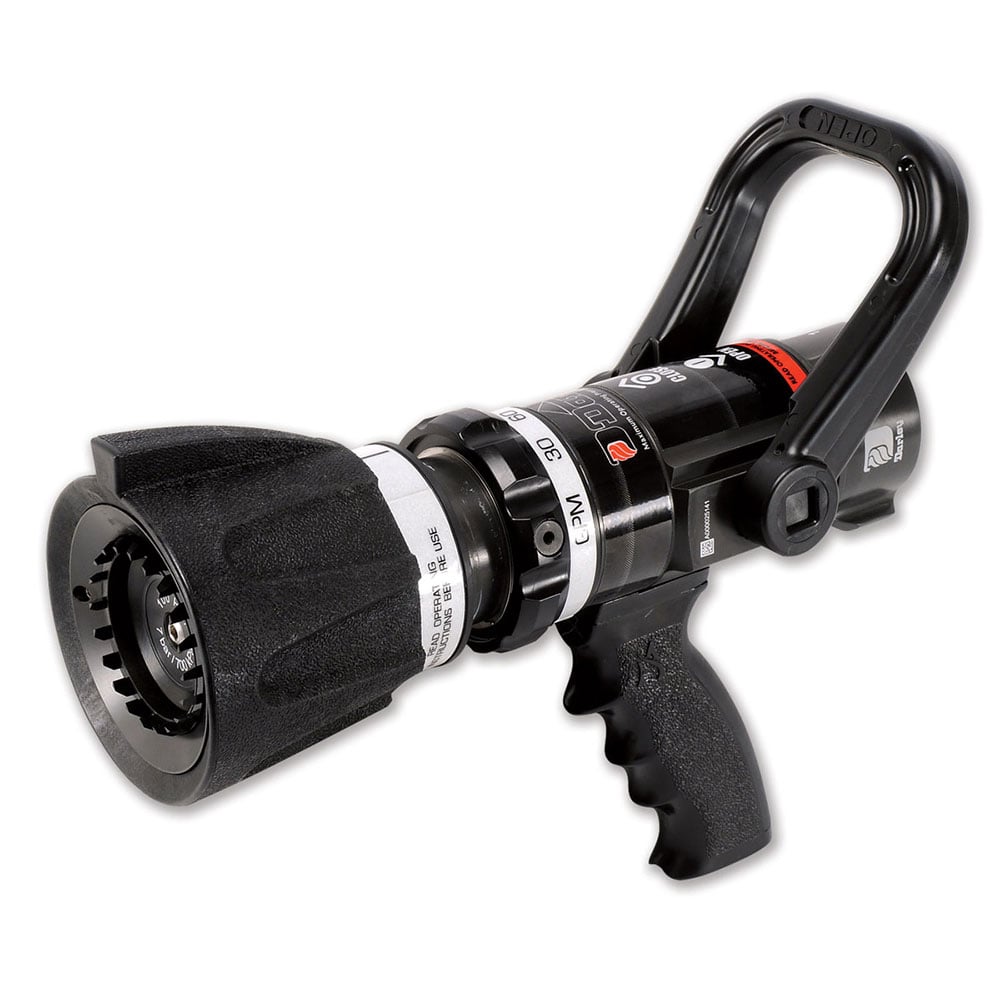

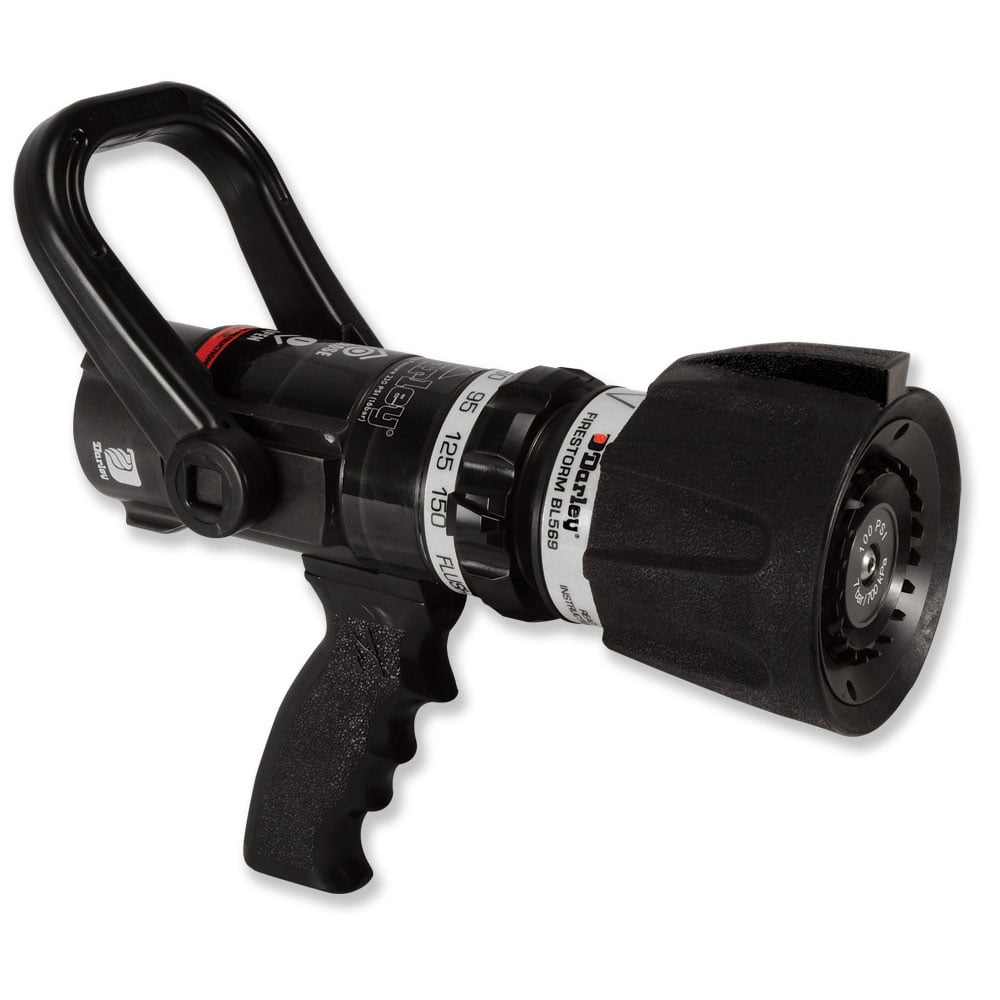

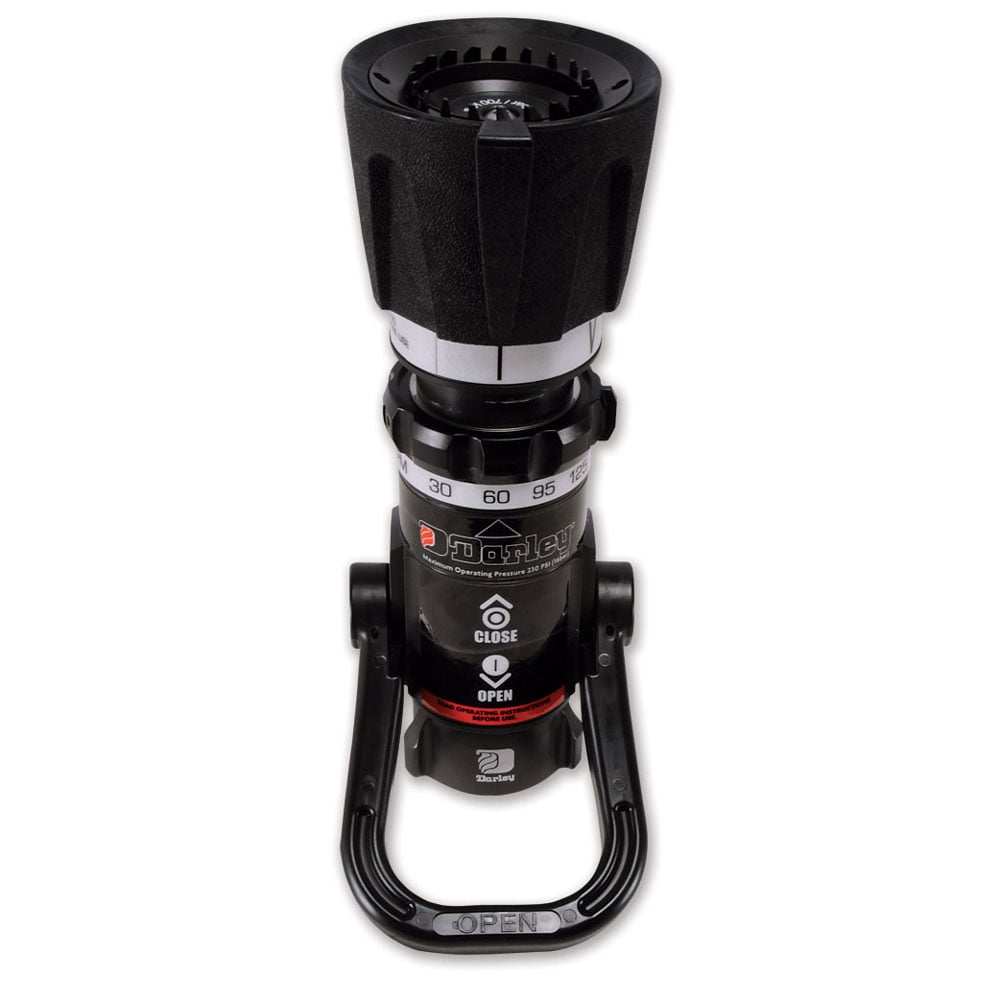

Darley Fire Storm Nozzle

SKU#: BL569

Typically ships in 1-2 days

Ships via Standard Ground

The Darley Fire Storm Nozzle offers unbeatable value with selectable gallonage, great stream performance, and easy pattern control, perfect for structural and wildland firefighting.

Price:$756.95

Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.

Enter a value between 1 and 100000000 in increments of 1.

Earn Darley Dollars with this purchase

Questions? Contact Us

The Darley Fire Storm Nozzle is a selectable gallonage fire hose nozzle designed for frontline flow control. It offers constant gallonage, meaning the flow remains consistent across all patterns, providing unbeatable value and performance.


Features

  • Great Stream Performance: Ensures effective firefighting with excellent stream quality.
  • Affordably Priced: Offers high performance at a competitive price.
  • Standard Swivel Inlet: 1 1/2" NH (38 mm) for easy connection.
  • Adjustable Flow Settings: 30-60-95-125-150 GPM (115-230-360-475-550 LPM) at 75, 87, or 100 PSI (5, 6, or 7 bar).
  • Simple Pattern Control: Easy 1/4 turn from straight stream to fog.
  • Raised Lug Marks: Helps identify straight stream in low visibility conditions.
  • Compliance: Meets NFPA 1964 standards, FM approved, and EN-15182 certified.


Applications

  • Structural Firefighting: Suitable for combating structural fires.
  • Wildland Forestry Firefighting: Effective in wildland and forestry fire scenarios.
  • Industrial Firefighting: Ideal for handling fires in industrial settings.
  • Marine Firefighting: Effective for use on ships and in marine environments.


  • Flow Indicating Detents: 30, 60, 95, 125, and 150 GPM (115, 230, 360, 475, and 550 LPM) at 75, 87, or 100 PSI (5, 6, or 7 bar).
  • Construction: One-piece solid nylon reinforced bumper, one-piece solid rubber-like handle with dual stops, dual drive trunnions, and an extruded single piece Pyrolite body.
  • Optional Grip: Solid rubber-like pistol grip, easily removable.
  • Fog Pattern: Minimum 110° fog pattern.
  • Swivel Inlet: 1 1/2" NH Full-time swivel inlet.
  • Flushing Capability: Can flush without shutting down or changing stream patterns.
  • Warranty: 5-year warranty.
  • Length: 10 1/2 inches.
  • Maximum Flow: 150 GPM (550 LPM)
  • Model: 1616/2000
