Darley

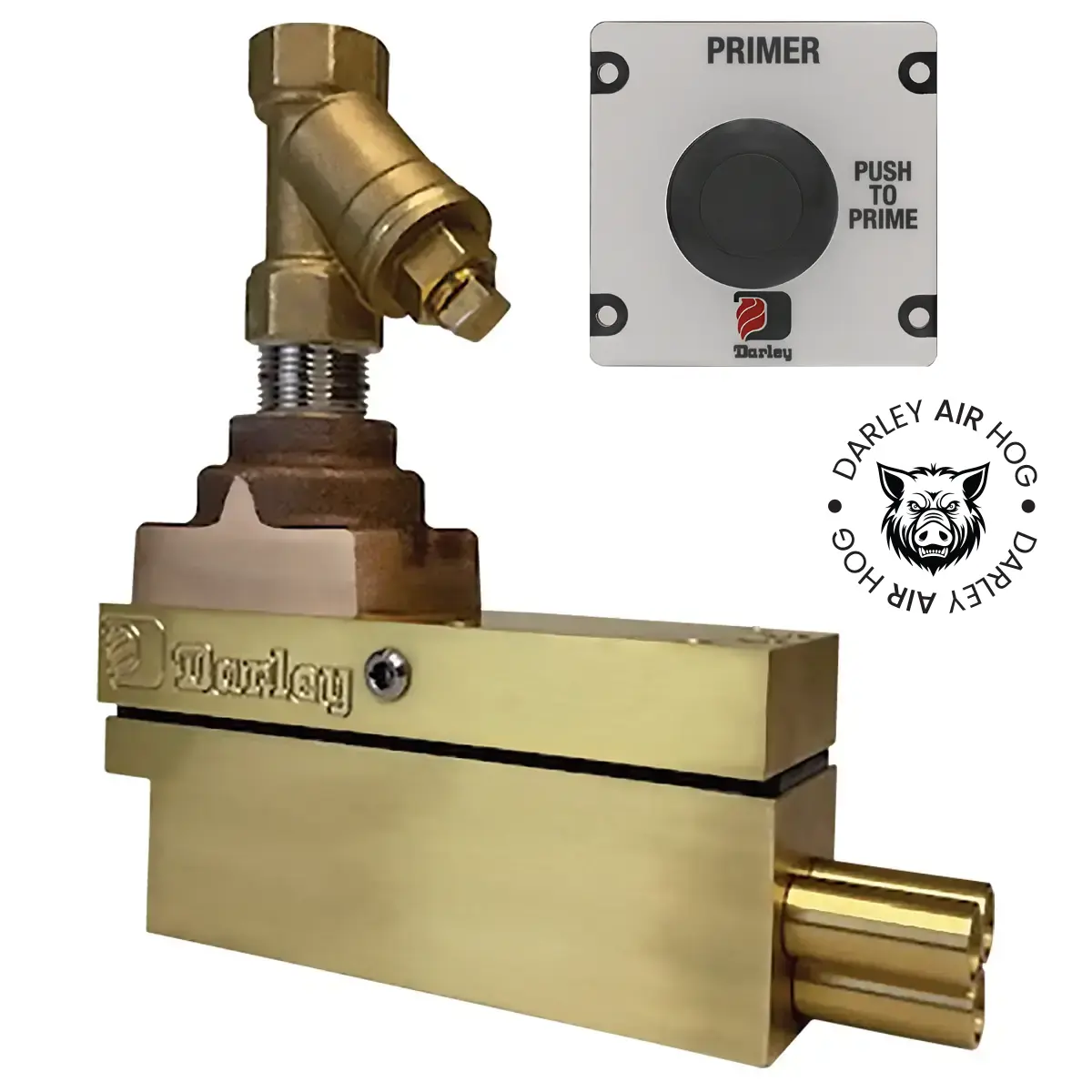

Darley Air-Powered Primer
SKU#: AirHog
Available with Manual or Electronic Control Options
Darley’s new air-powered priming system is designed to utilize the air power from the air brakes system on fire trucks, offering a reliable and efficient solution for fire departments.
Features
- High-Corrosion Resistance – Brass and stainless-steel components allow this unit to stand up to harsh conditions in both fresh and saltwater applications.
- Few Moving Parts – This system utilizes simple components to make any maintenance quick and easy.
- Control Options – Comes with manual and electronic control options to fit your needs and style. The available control systems come as plug-and-play solutions for easy installation.
- 12V or 24V – Darley also offers a 12V and 24V rotary vane primer for applications without compressed air.
- Any air primer application requires a compressor capable of outputting at least 15.6 CFM.
- Primer can be used with pumps rated 2000 GPM and smaller.
- NFPA compliant

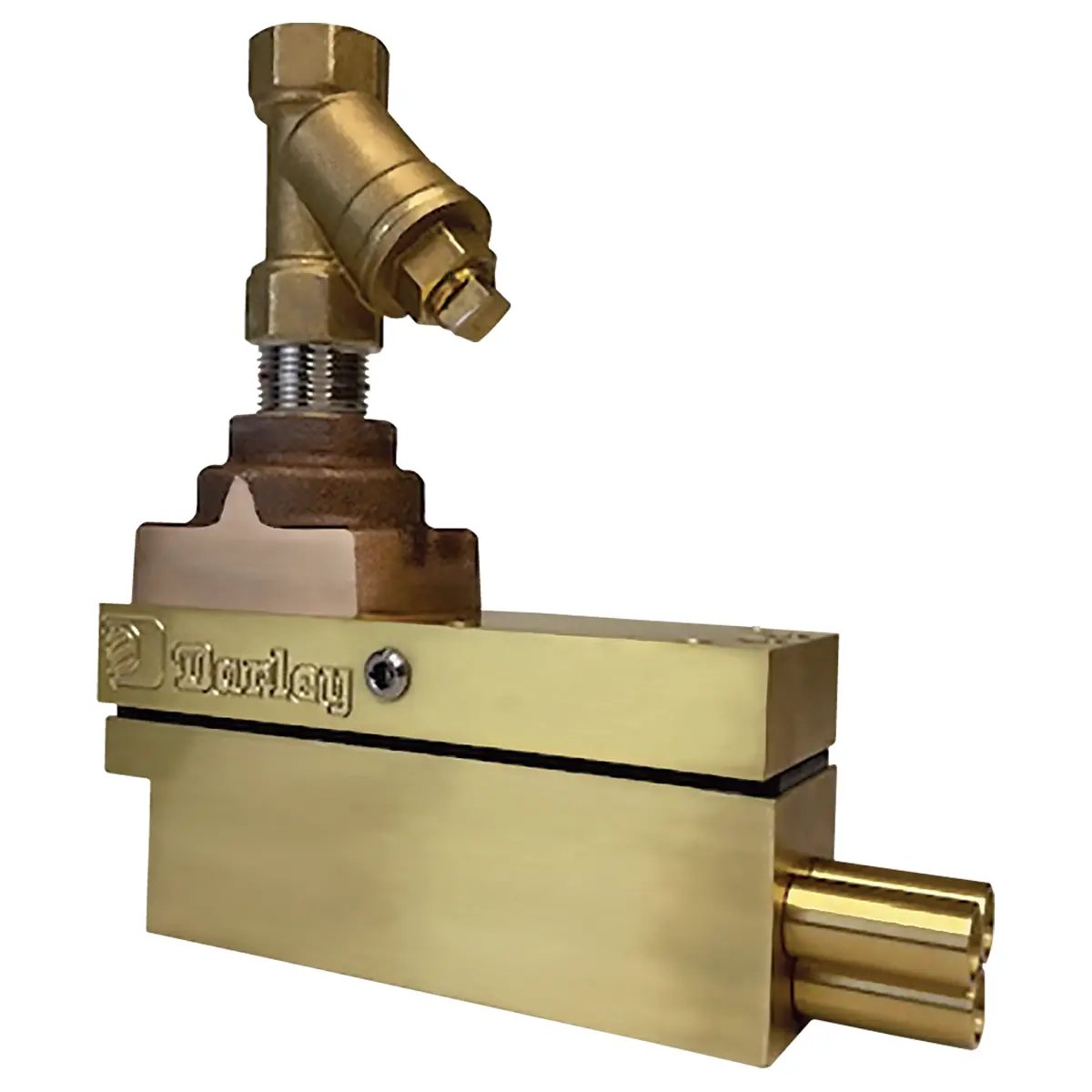

The Darley Air Hog is an innovative priming system that utilizes compressed air from trucks’ air brake systems to create a vacuum, drawing water up to the pump impeller. This prepares the pump for efficient operation.
Why is this needed?
Achieving a reliable prime is crucial for optimal performance in many pumping applications. The Darley Air Primer addresses this need with a dependable, efficient solution that minimizes maintenance and maximizes operational readiness.
How does it work?
The primer uses venturis to generate a vacuum, which draws water into the pump. Powered by compressed air, it eliminates the risk of overrunning and damaging the primer, ensuring longevity and consistent performance.
Base Model Manual Panels

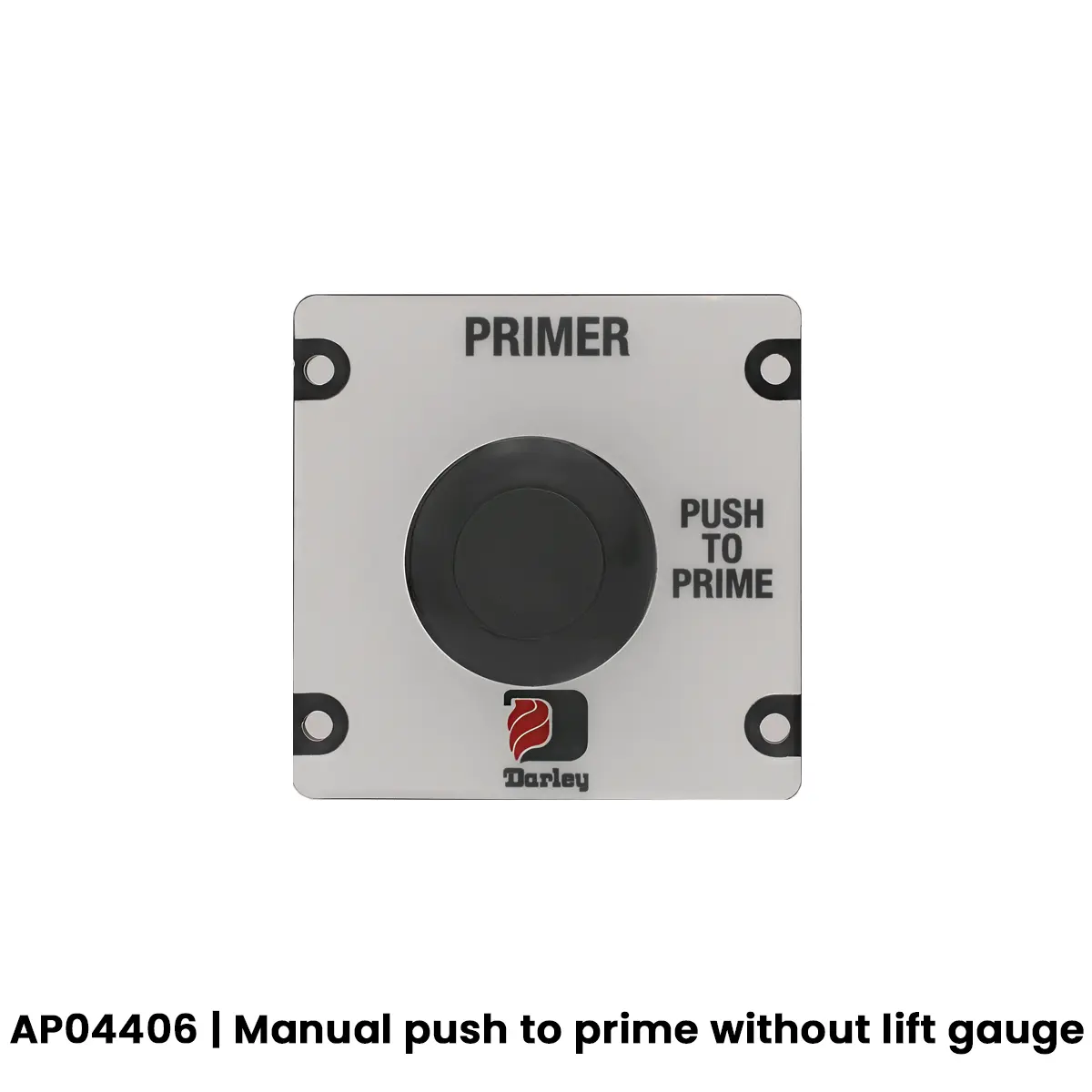

AP04406 | Manual push to prime without lift gauge

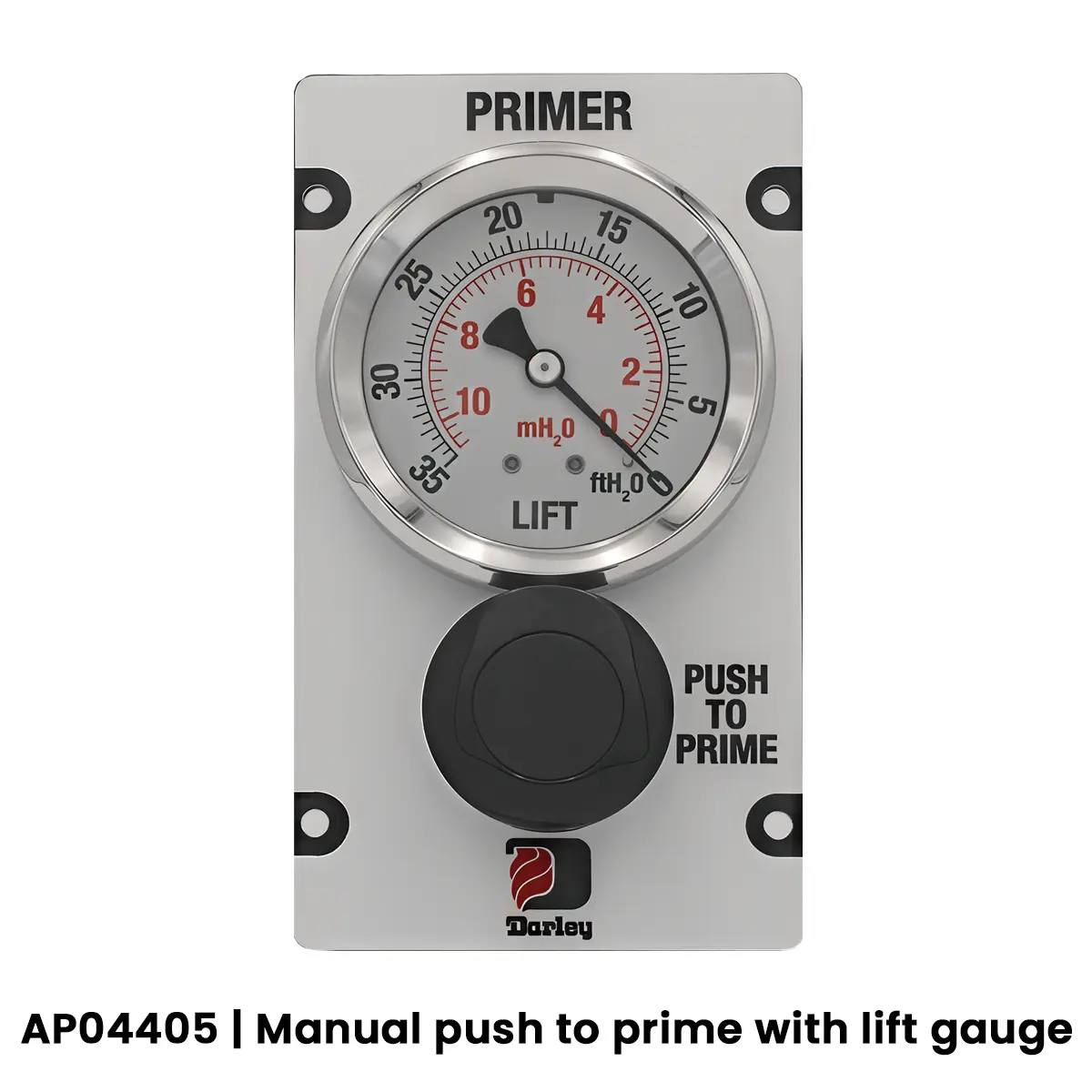

AP04405 | Manual push to prime with lift gauge
Optional Electronic Panels

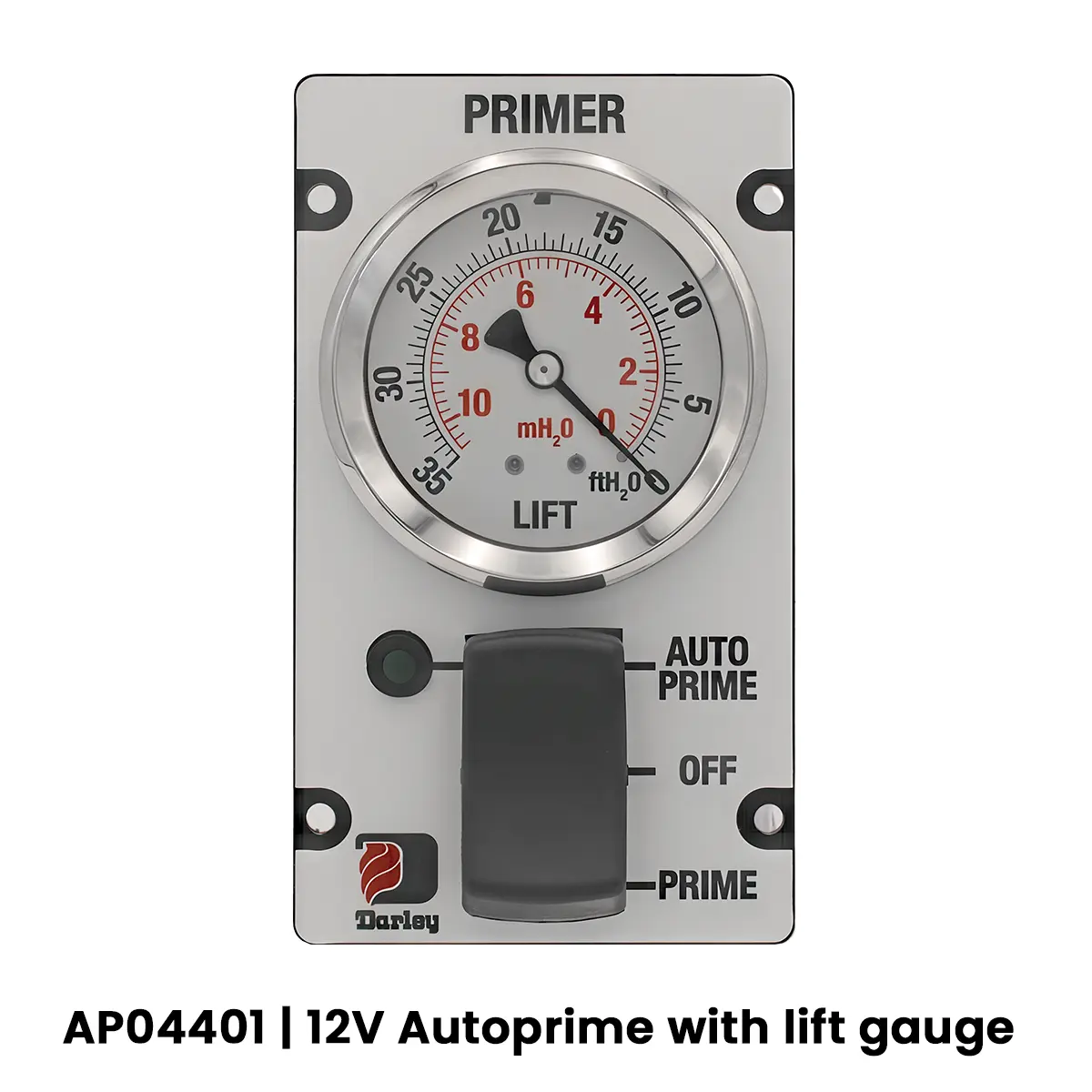

AP04401 | 12V Autoprime with lift gauge

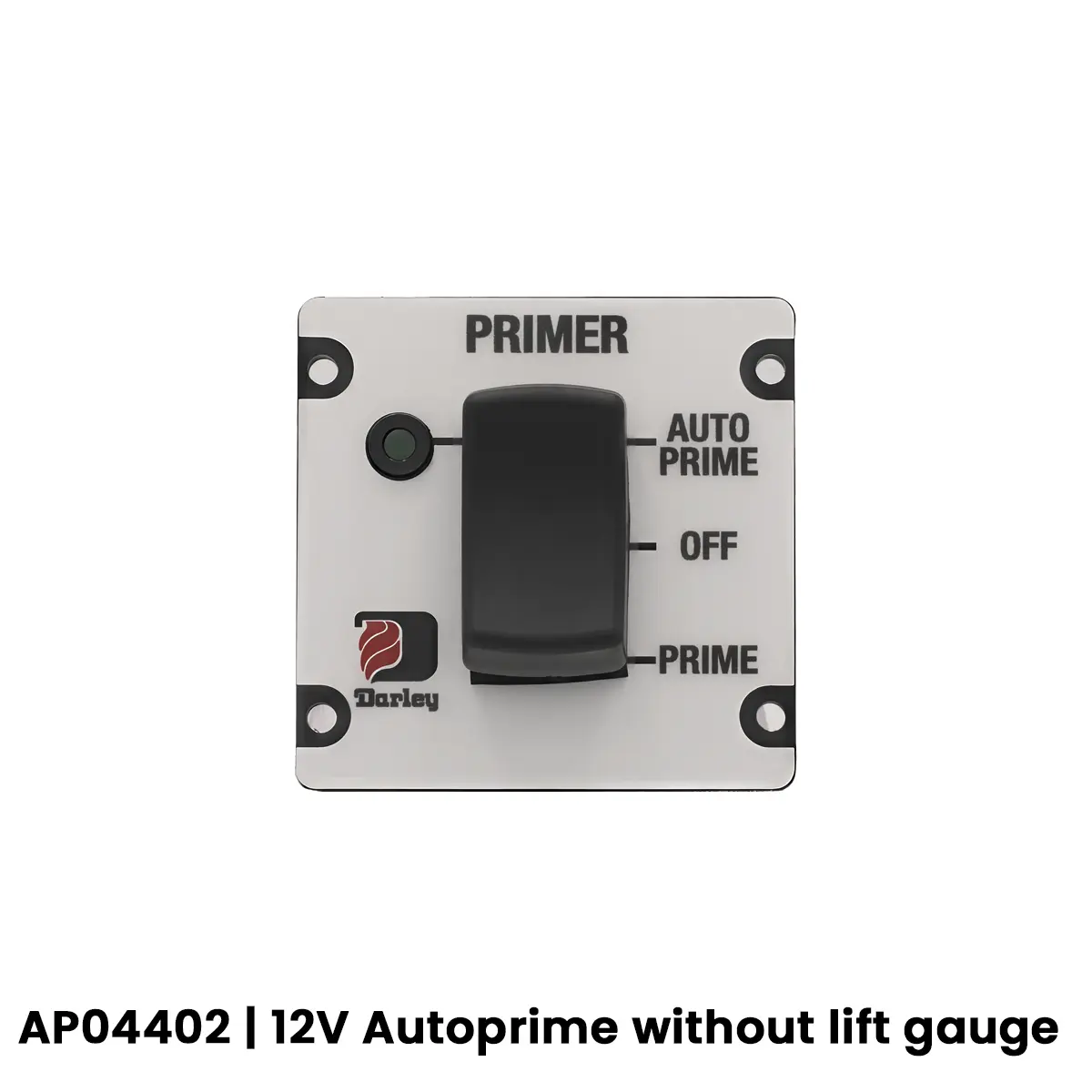

AP04402 | 12V Autoprime without lift gauge
AP04403 | 24V Autoprime with lift gauge
AP04404 | 24V Autoprime without lift gauge
Choose the Darley Air Primer for a reliable, low-maintenance, and efficient priming solution that meets the demands of modern pumping applications.
- Product Name: Darley Air Hog (Air-Powered Primer)
- Applications: For use with pumps rated 2000 GPM and smaller
- Compliance: NFPA 1901 compliant
- Weight: 10 lbs
- Power Requirements: Utilizes the air brake system on fire apparatus
- Model: airhog
