Task Force Tips
Crossfire® Monitor With Smooth Bore Stacked Tips and Storage Bracket
SKU#: AF249
Ships via Standard Ground
Features
- Comprehensive Package: Includes monitor top, base, nozzle, stream straightener, and storage bracket
- Nozzle Variety: Smooth bore stacked tips for customizable flow and reach
- High Flow: Supports up to 1250 GPM (4500 LPM) for powerful suppression
- Safety-Focused: Equipped with safety inlets, tie-down strap, and secure base
- Connection Flexibility: Dual 2.5″ NHF swivel inlets for versatile hose connections
- 360° Horizontal Range: Full rotation for maximum coverage
- Durable Construction: Hard coat anodized aluminum for corrosion resistance
- Quick Deployment: Foldable legs and intuitive controls for rapid setup
- Stream Optimization: Integrated 5″ stream straightener enhances stream quality
- Visual Indicators: Laser-engraved tip sizes and pressure charts for quick reference
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Crossfire® Monitor With Smooth Bore Stacked Tips and Storage Bracket is a high-performance, portable ground monitor system engineered for aggressive fireground operations. This complete package includes a CrossFire® monitor top, SafeTak base, smooth bore stacked tip nozzle, 5″ stream straightener, and a dedicated storage bracket—delivering unmatched stream reach, flow capacity, and deployment flexibility.
How is it used?
This monitor system is deployed on the ground during firefighting operations to deliver high-volume water streams with precision and stability. The dual 2.5″ NHF swivel inlets connect to supply lines, while the smooth bore nozzle and stream straightener ensure a focused, penetrating stream. The monitor can be manually adjusted for 360° horizontal and 90° vertical range, making it ideal for wide-area suppression or targeted attacks.
Who uses it?
Designed for professional firefighters and emergency response teams, this monitor is used by municipal fire departments, industrial fire brigades, and wildland/urban interface teams. Its rugged design and high flow capacity make it suitable for both urban structure fires and large-scale industrial incidents.
Maintenance Information
Routine maintenance includes flushing the monitor and nozzle with clean water after use, inspecting the swivel joints and safety strap for wear, and checking the pressure gauge and drain valve for proper function. Lubricate moving parts as needed and store the unit in its designated bracket to prevent damage.
Storage Information
The included CrossFire® storage bracket allows for secure mounting in apparatus compartments. Foldable legs on the base and compact nozzle design ensure space-efficient storage. Always store in a dry, clean environment to preserve the anodized finish and mechanical integrity.
What is included?

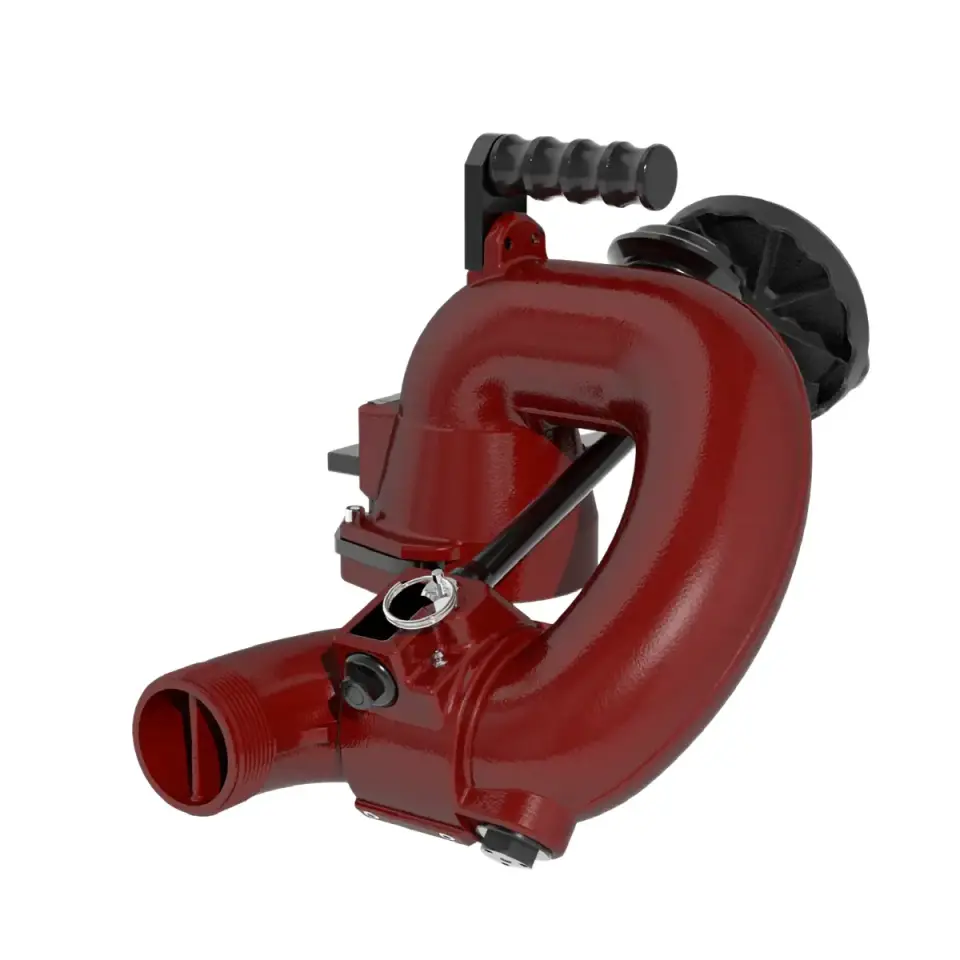

- CrossFire® Monitor Top, 2.5″ NH Male Outlet

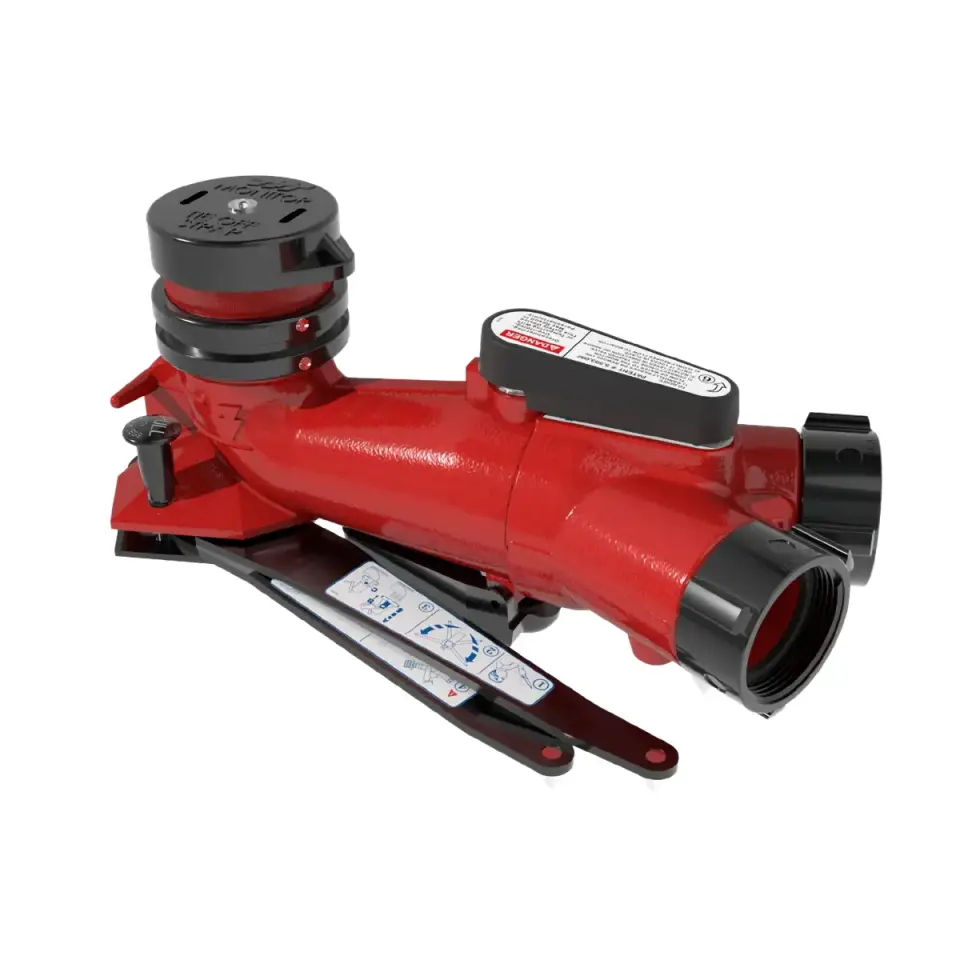

- SafeTak Base, Dual 2.5″ NHF Rocker Swivel Inlets
- Smooth Bore Stacked Tips Nozzle (1-3/8″, 1-1/2″, 1-3/4″)
- Stream Straightener, 2.5″ NHF

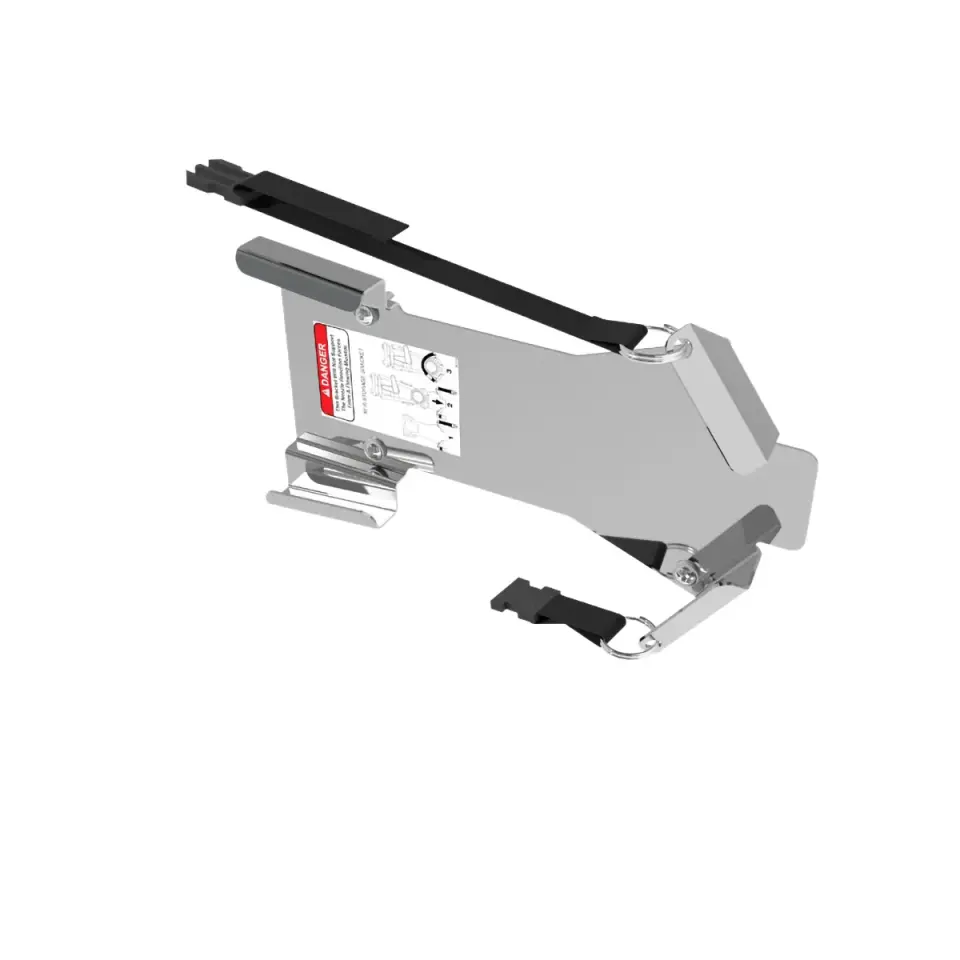

- CrossFire® Storage Bracket
- Monitor Type: Ground Attack
- Monitor Control: Manual
- Horizontal Range: 360°
- Vertical Range: 90° – 90°
- Max Flow Rate: 1250 GPM (4500 LPM)
- Inlet Size: Dual 2.5″ NHF Rocker Swivel
- Outlet Size: 2.5″ NHM Rigid
- Nozzle Type: Smooth Bore Stacked Tips (1-3/8″, 1-1/2″, 1-3/4″)
- Stream Straightener: 5″, NHF to NHM
- Material: Aluminum alloy with hard coat anodization
- Weight: Monitor Top – 17 lbs, Base – 25 lbs, Nozzle – 3 lbs, Straightener – 1.8 lbs
- Color: Red (Monitor & Base), Black (Nozzle)
- Mounting: Storage bracket included
- Model: XFC-42-2NJ-S
