CMC Triskelion™ Tripod
SKU#: BP524
Typically ships in 3 weeks
Ships via Standard Ground
The CMC Triskelion™ Tripod offers versatile height ranges, multiple rigging options, and user-friendly features for efficient and safe technical rescue operations.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The CMC Triskelion™ Tripod is designed to adapt to various rescue scenarios, offering impressive working height ranges that fit low-clearance areas and extend to haul patients in full-size litters. This tripod is packed with unique features that enhance its usability and efficiency in technical rescue operations.
Features
- Versatile Height Range: 10ft max working height for hauling patients from confined spaces using a harness or litter, and 5.5ft min working height for low-clearance areas.

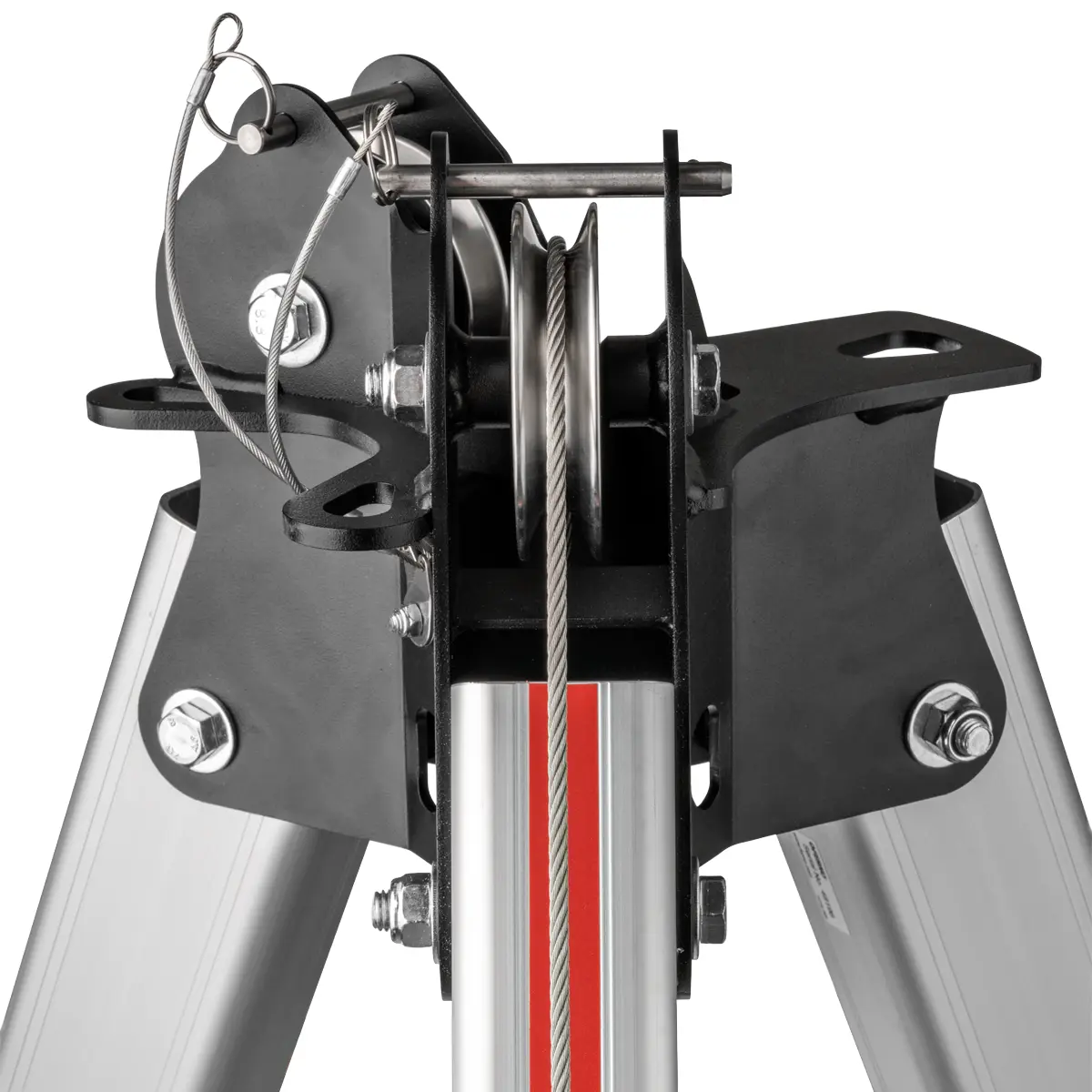

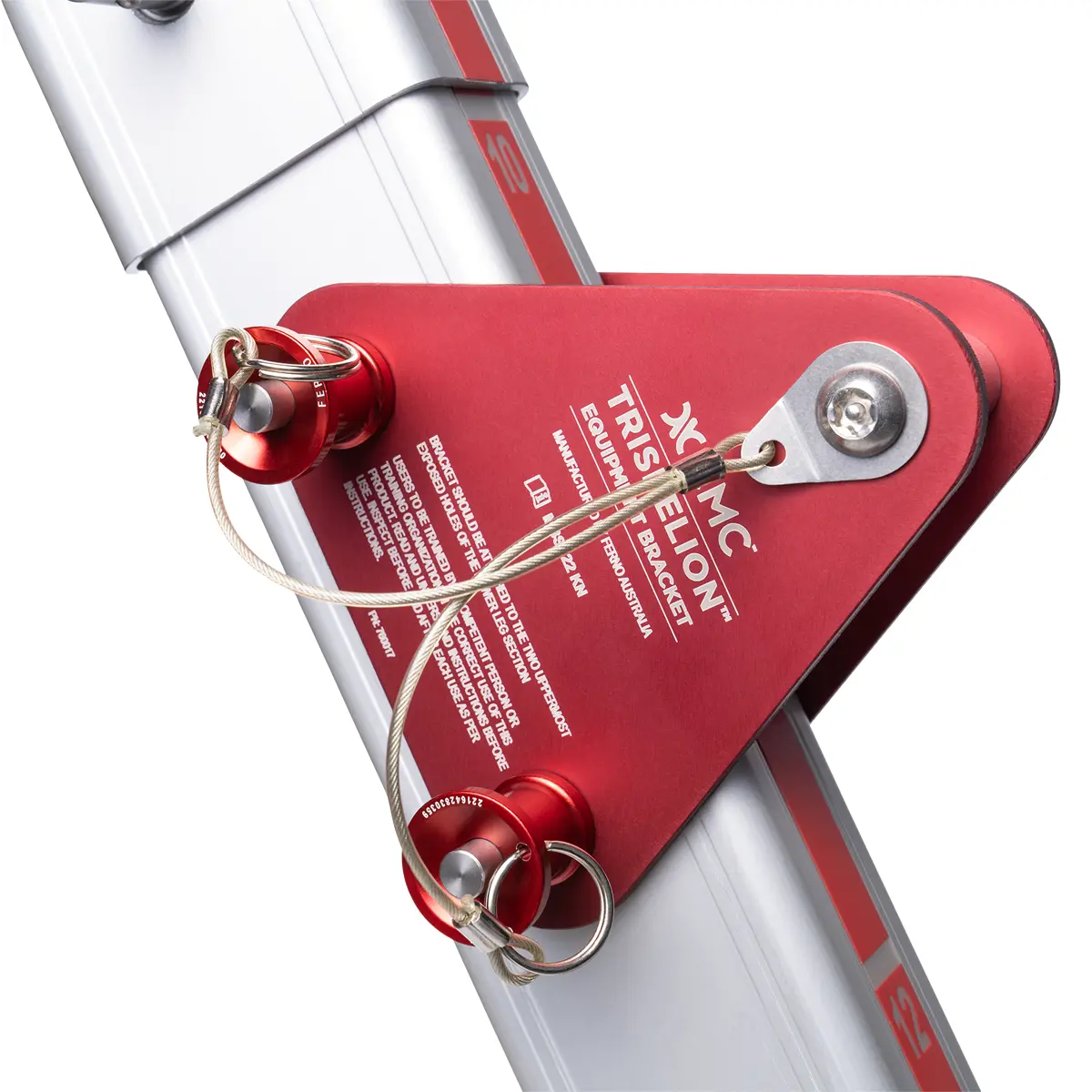

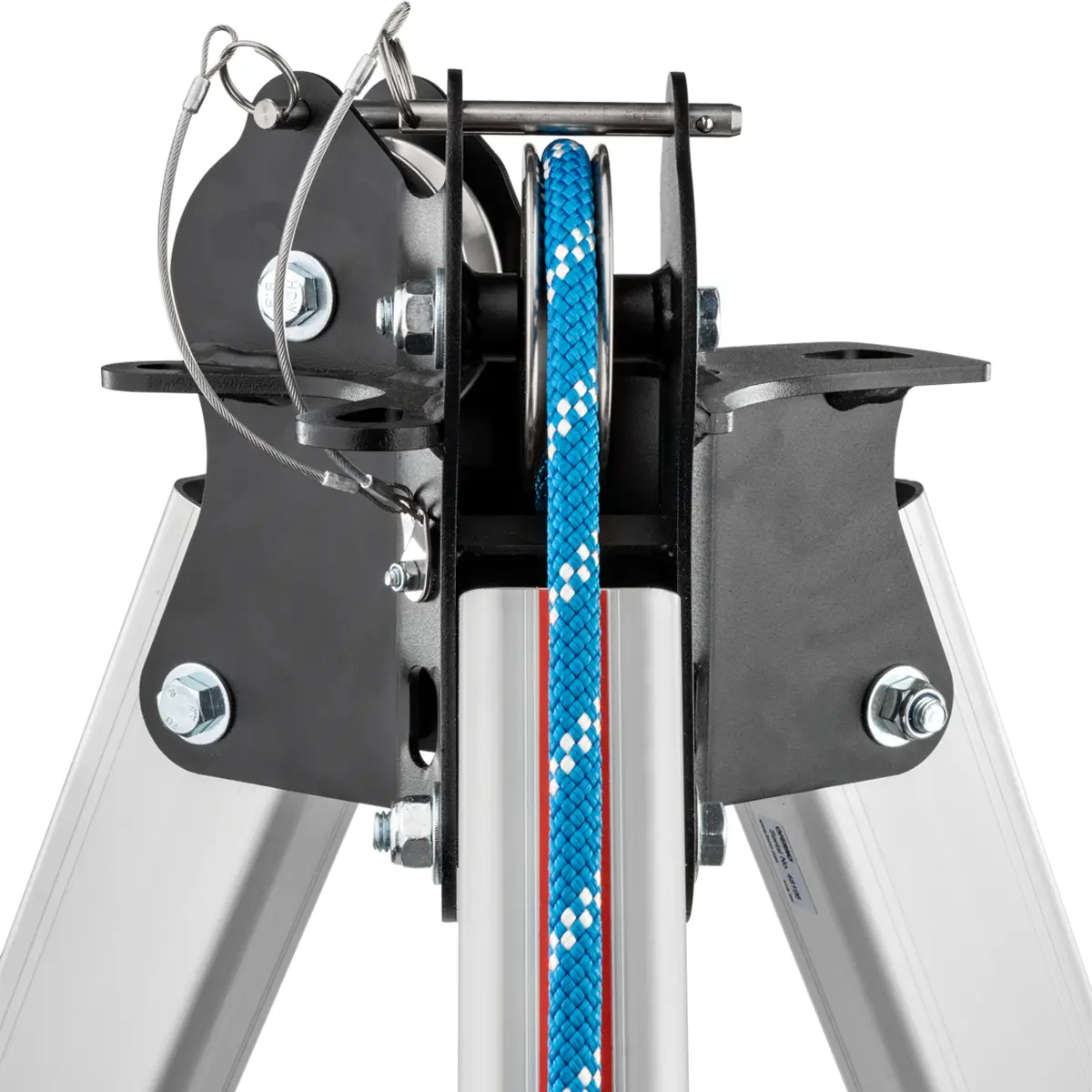

- Rigging Options: Two head-mounted stainless steel pulleys compatible with cable and rope up to 13 mm (1/2 in), three side-plate anchor points, and three tie-off points for additional rigging or stabilization.

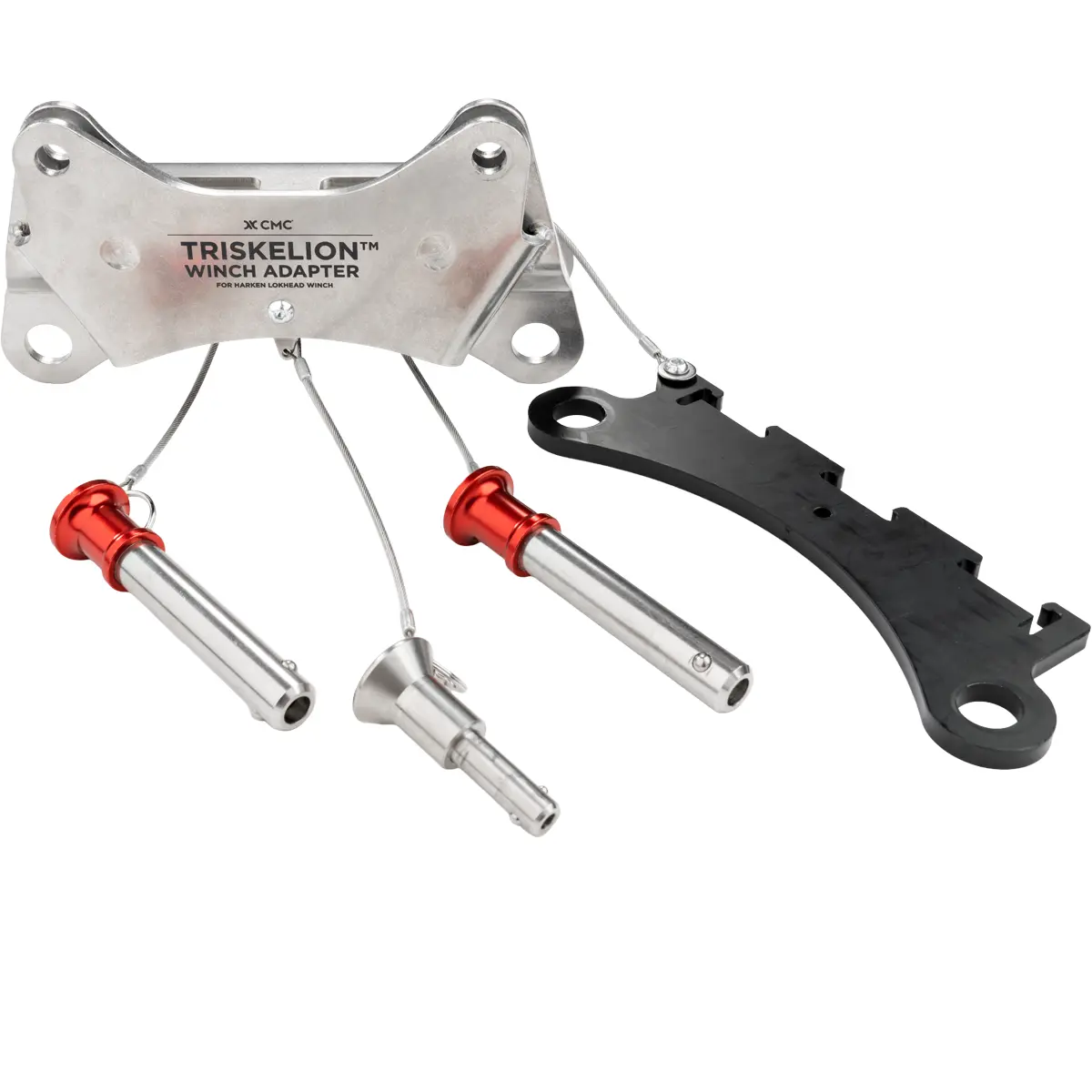

- Multiple Winch Mounting Options: Compatible with Harken LokHead Winch and DBI-Sala Salalift II Winch.
- Rectangular Legs: Prevent spinning and properly align adjustment holes and tripod feet, with built-in stoppers to keep inner legs from pulling out all the way.
- Quick-Action Pins: Large, ball-lock push pins that snap into place and are easily handled with gloves, with robust lanyards to prevent loss.
- High Contrast Graphics: Easy to see in low light, with leg height numbering and icons guiding winch installation.

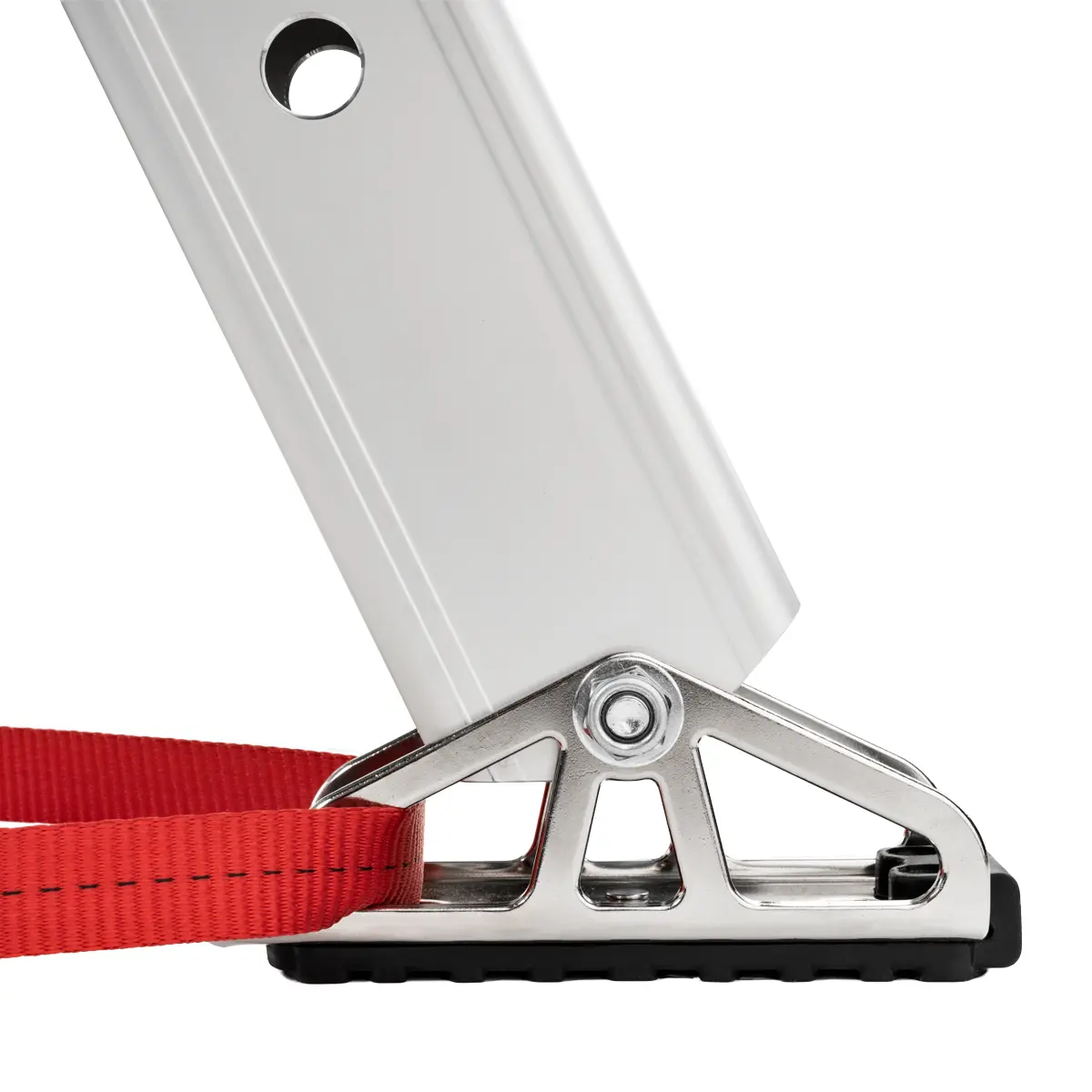

- Pivoting Feet: Adapt to various surfaces and angles, with non-slip tread for hard floors and spiked tips for soft earth.
- Quick-Connect Hobble Strap: Red webbing hobble strap secures all three legs at the base with a single quick-connect Cobra Buckle.
- Reinforced Carry Bag: Includes a diagram for balanced single-person transport, easily carried by two people using end handles or a single person using the padded center shoulder strap.

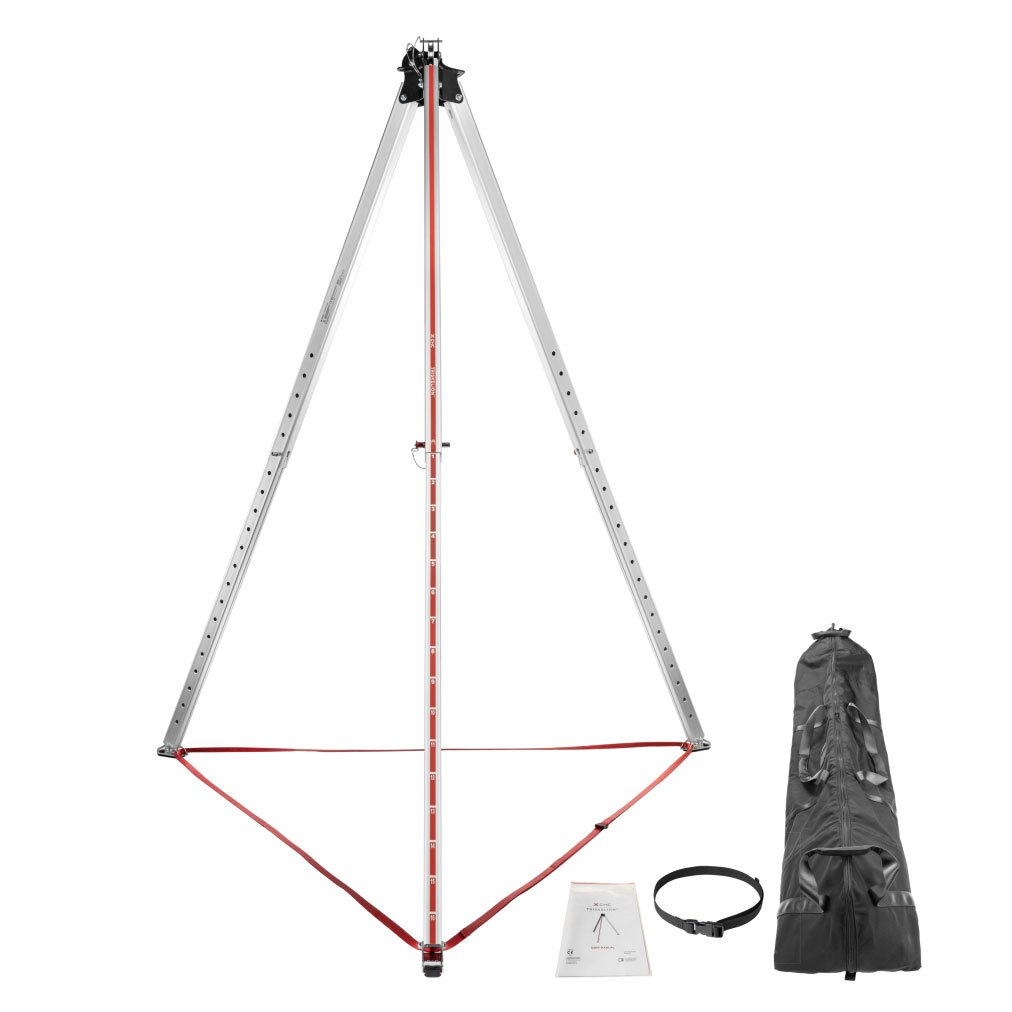

Kit Contents
- Triskelion Tripod
- Hobble Strap
- Carry Bag
- Leg Strap
- User Manual
Certification
- NFPA 1983 (2017 ED) – General Use
- EN 795:2012 Type B for Single Person Use
- CEN/TS 16415: Type B for 2 Person Use
Why Choose This Tripod?
The CMC Triskelion™ Tripod sets a new benchmark for rapid deployment, ease of use, and versatility in industrial rescue operations. Its modern, user-friendly design increases both the safety and efficiency of each rescue, making it the most practical tripod for technical rescue scenarios.
- Min Working Height: 5.5 ft (1.7 m)
- Max Working Height: 10 ft (3.1 m)
- Tripod Weight: 70 lb (32 kg)
- Model: 760001
- Inside Diameter of Feet:
- Minimum Height: 62.2 in (1580 mm)
- Maximum Height: 111 in (2820 mm)
- Outside Diameter of Feet:
- Minimum Height: 76 in (1930 mm)
- Maximum Height: 124.8 in (3170 mm)
- MBS:
- Attached directly to head: 36 kN (8,093 lbf)
- Attached to leg over pulley: 22 kN (4946 lbf)
