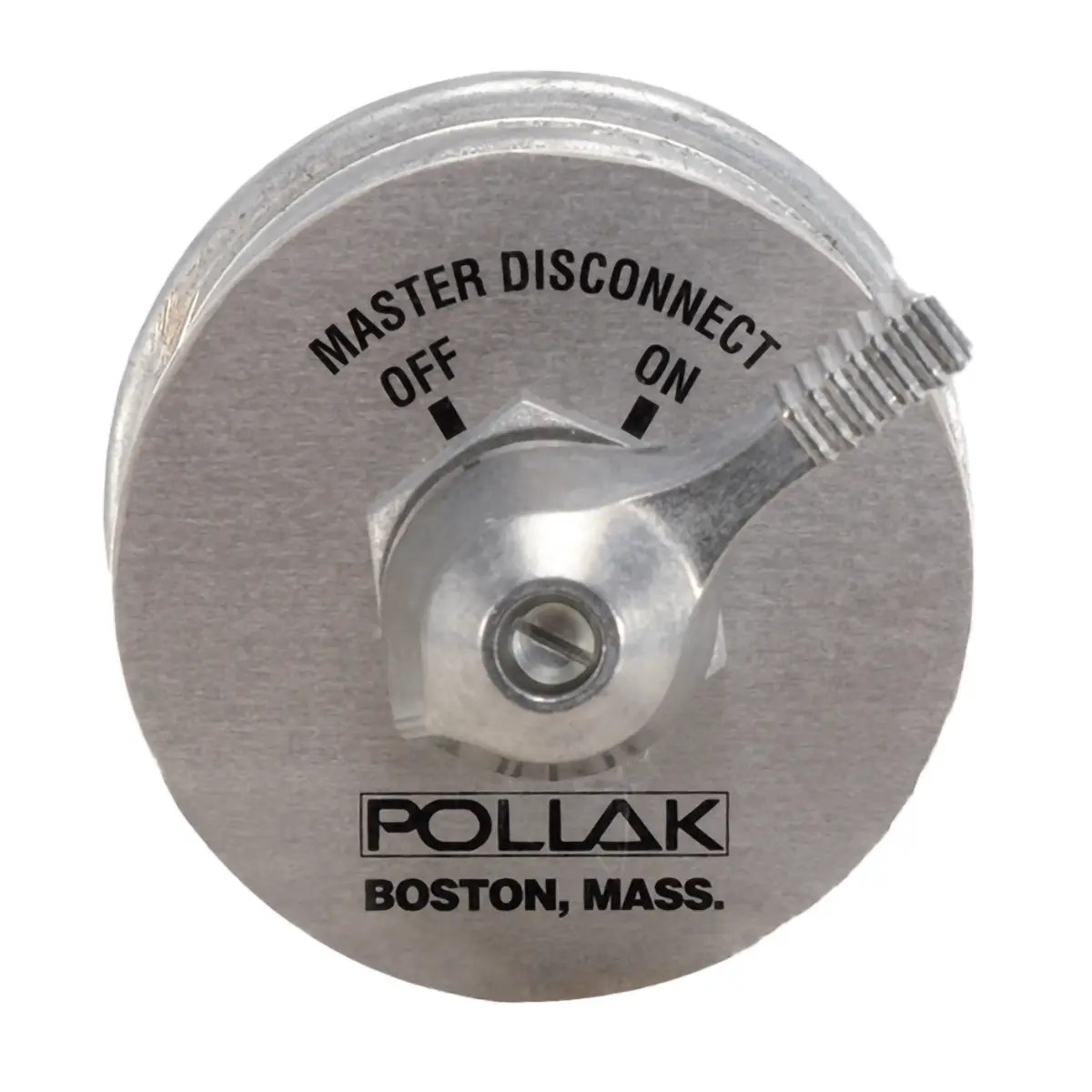

Battery Isolation Switch Retail Poly-Bag

Battery disconnect switches are essential for safeguarding against electrical fires by cutting off power when the equipment is not in use. They also provide a reliable way to shut down electrical power during maintenance and protect batteries from excessive drains.

Features

• Lever Operated: Easy to use with a large die-cast lever for smooth operation.
• Voltage Range: 6-36 VDC.
• Current Capacity: 180 Amps continuous capacity; 1000 Amps inrush.
• Switch Type: Single Pole Single Throw (S.P.S.T.) Off-On.
• Terminals: Two 3/8" copper alloy stud terminals with hex nuts and lock washers for battery circuit only. Note: Does not disconnect alternator or generator field circuit. Ensure the engine is off to avoid potential damage to the alternator diode.
• Heavy Duty Contacts: Incorporates heavy-duty contacts for reliable performance.
• Durable Construction: One-piece die-cast housing sealed with O-rings at the base and mounting stem to keep out dust and moisture.
• Dimensions: Overall length 4 3/8", diameter 2 5/8" approx.
• Mounting: It fits panels up to 1/4" thick. The mounting stem is 3/4" in diameter and 1/2" long, with two hex nuts and a lock washer. (Note: Mounting nuts should not exceed 12 ft. lbs. torque).
• Compliance: Conforms to U.L. #558 requirements.
