Autel EVO Max 4T XE Bundle

SKU#: BN988

Features

10X Optical Zoom: Capture detailed images from a distance with the 10x optical zoom capability.
Thermal Camera: 640x512 resolution with 16x digital zoom for thermal imaging.
Wide Camera: 50MP with a 1/1.28" CMOS sensor for high-resolution wide-angle shots.
Zoom Camera: 48MP with 8K resolution and 10x optical zoom (160x max).
Laser Rangefinder: Accurate distance measurement for precise data collection.
Autel SkyLink 3.0: 12.4 miles transmission range for reliable long-distance communication.
720° Obstacle Avoidance: Comprehensive obstacle detection and avoidance for safe flights.
42 mins Max Flight Time: Extended flight duration for longer missions.
A-Mesh 1.0: Mesh networking technology for enhanced connectivity.
3D Map Planning: Multiple mission types and data security for versatile operations.
Multi-channel Projection Screen: Display multiple data streams simultaneously.
Autel SDK: Customizable software development kit for tailored applications.

The Drone EVO Max 4T XE Bundle is a cutting-edge commercial drone designed for professionals who demand the best in aerial technology. This bundle combines advanced imaging capabilities, robust flight performance, and innovative features to deliver unparalleled results in various applications.

Advanced Capabilities

Autonomy Engine: Combines binocular vision systems with millimeter wave radar technology to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.
Autonomous Path Finding: Plans 3D flight paths through complex environments such as mountains, forests, and buildings.
Navigation in GPS Denied Environments: Advanced sensors allow navigation within hardened structures, underground, or in environments without GPS.
Accurate Object Identification and Tracking: AI recognition technology for identifying and locking onto targets such as heat sources, moving people, or vehicles.

Robust Design

IP43 Weather Rating: Protected against solid objects greater than 1mm and water sprays up to 60 degrees from the vertical.
Hot-Swappable Batteries: Easily replace batteries without powering down the drone.
Anti Jam, Anti Interference: Advanced flight control modules and algorithms to counter RFI, EMI, and GPS spoofing.

Imaging and Sensing

Zoom Camera: 1/2" CMOS, 48MP, 8K resolution
Wide Camera: 1/1.28 CMOS, 50MP, 4.5 mm focal length
Thermal Camera: Uncooled VOx Microbolometer, 640x512 resolution
Laser Range Finder: ±1m accuracy, 1.2km range

Controller

7.9-inch Smart Controller: 2000nits max. brightness, 2048x1536 resolution, 128G storage, GPS +GLONASS + Galileo + Beidou.

Battery

Capacity: 8070mAh
Voltage: 14.88V
Type: LiPo 4S
Energy: 120wh
Charging Temperature: 5ºC to 45ºC

Autonomy and Safety

Non-GPS Hovering and Manual Flight: Indoor and outdoor capabilities with high precision.
Automatic Obstacle Rerouting: High-speed and high-precision obstacle rerouting.
Multi-target Recognition and Tracking: Identifies and tracks multiple targets with high accuracy.

Millimeter-wave Radar

Operating Frequency: 60G: 60Ghz - 64Ghz
Sensing Range: Upward: 0.3 - 20 m, Downward: 0.15 - 80 m, Forward & Backward: 0.3 - 50 m

Visual Sensing System

Obstacle Sensing Range: 0.2~50m
FOV: Forward/Backward/Sideward: 60°(H), 80°(V); Upward/Downward: 360°(H), 190°(V)

In the Box

1x Autel EVO Max 4T XE
1x Autel Max Intelligent Flight Battery
1x Autel Max Battery Charger with Power Cable

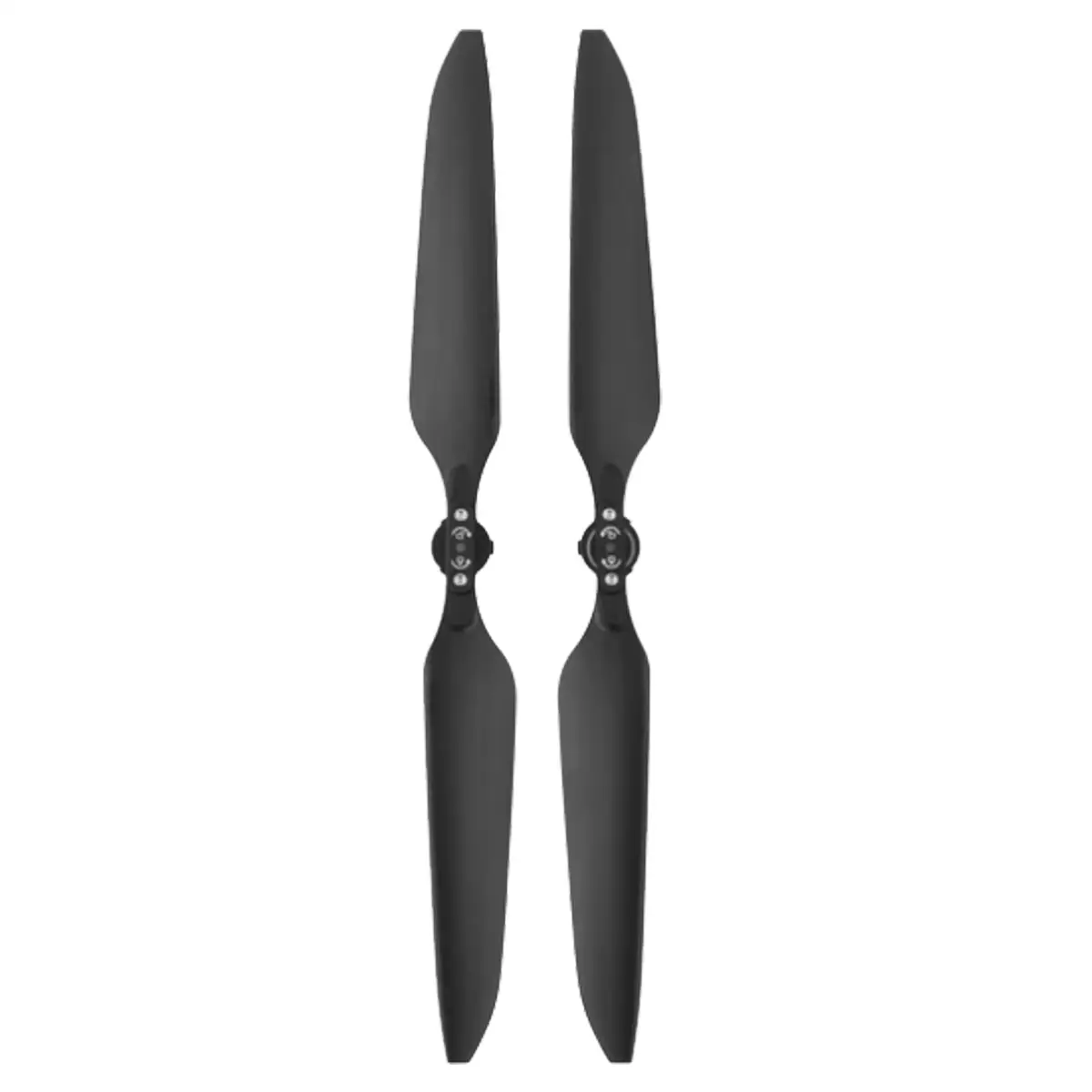

2x Autel Max Propeller Pairs
1x Autel Smart Controller V3 with Smart Controller Cover
1x Autel Smart Controller Charger with USB Charging Cable
1x Autel Smart Controller Lanyard
1x Autel Max 4T XE Rugged Hard Case with Custom Foam

Weight: 3.5 lbs (1600g, battery and gimbal included)
Max Ascent Speed: 8m/s
Max Descent Speed: 6m/s
Max Horizontal Speed: 22m/s
Max Service Ceiling: 23000ft (7000m)
Max Flight Time: 42 mins
Max Wind Resistance: 27mph
Operating Temperature: -4°F to 122°F (-20℃ to 50℃)
Operating Frequency: 2.4G/5.2G*/5.8G/900MHz*
Metric Units
- Width: 576 mm
- Depth: 660 mm
- Height: 149 mm
Imperial Units
- Width: 22.68 in
- Depth: 25.98 in
- Height: 5.87 in
