Odin Foam
ATP Foam Flurry
SKU#: ATP00001
Ships via Standard Ground
ATP Foam Flurry foam proportioner delivers reliable Class A foam injection without power, featuring durable all-brass construction and simple pump installation.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The ATP Foam Flurry is an economical, pump-mounted Class A foam proportioner designed to inject foam concentrate into water flow without requiring 12v power. It is simple to install, easy to operate, and built with all-brass components for durability and corrosion resistance.
Features
- Injection rate: Capable of up to .5 percent injection rate at flows up to 130 gpm
- Chemical delivery: Injects up to .65 gallons per minute of Class A chemical under full flow
- Operating pressure: Requires a minimum discharge pressure of 80 psi with optimum performance at 100 psi or above
- Suction protection: Designed for operation with little or no pressure allowed into the suction side of the fire pump during hydrant use
Construction and Durability
- All-brass construction: No plastic components used in the injection venturi or internal parts
- Corrosion resistance: Brass alloy fittings and components designed for long service life under high pressure
- Protection housing: 1/8 inch aluminum protection box houses critical injection components
Control and Operation

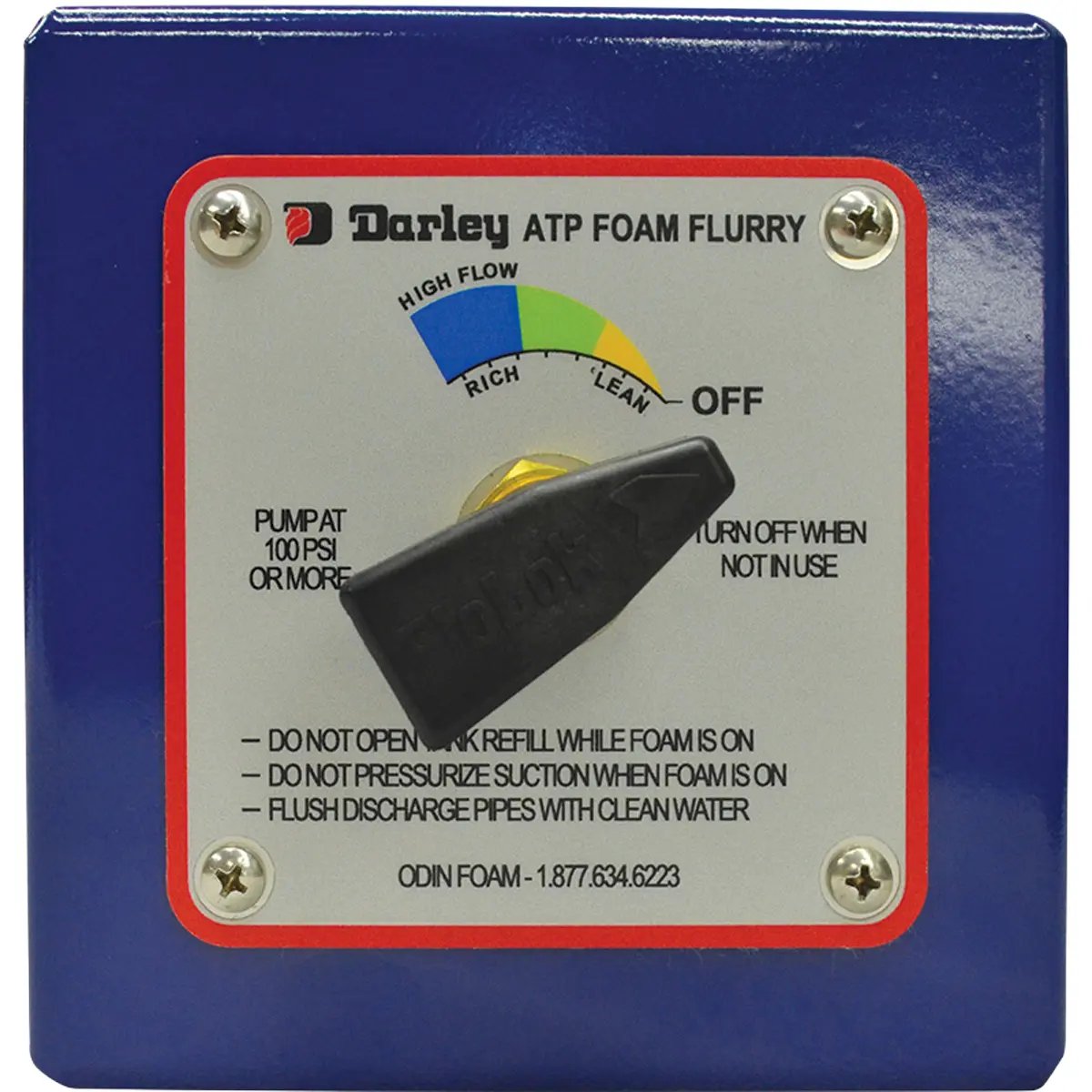

- Metering valve: Fast-adjusting variable control ball valve with pointer knob for quick volume control
- Valve design: 90 degree opening valve with all-brass internal construction
- Check valve: Integrated check valve with 1/8 inch JIC fittings for secure hose connections
Mounting and Installation
- Remote mounting: Protection box can be mounted away from pump vibration as needed
- Installation kit: Includes necessary fittings and hose for mounting within 3 feet of the pump head
- Operation placard: Stainless steel placard mounted to the protection box for remote operation reference
How is it used

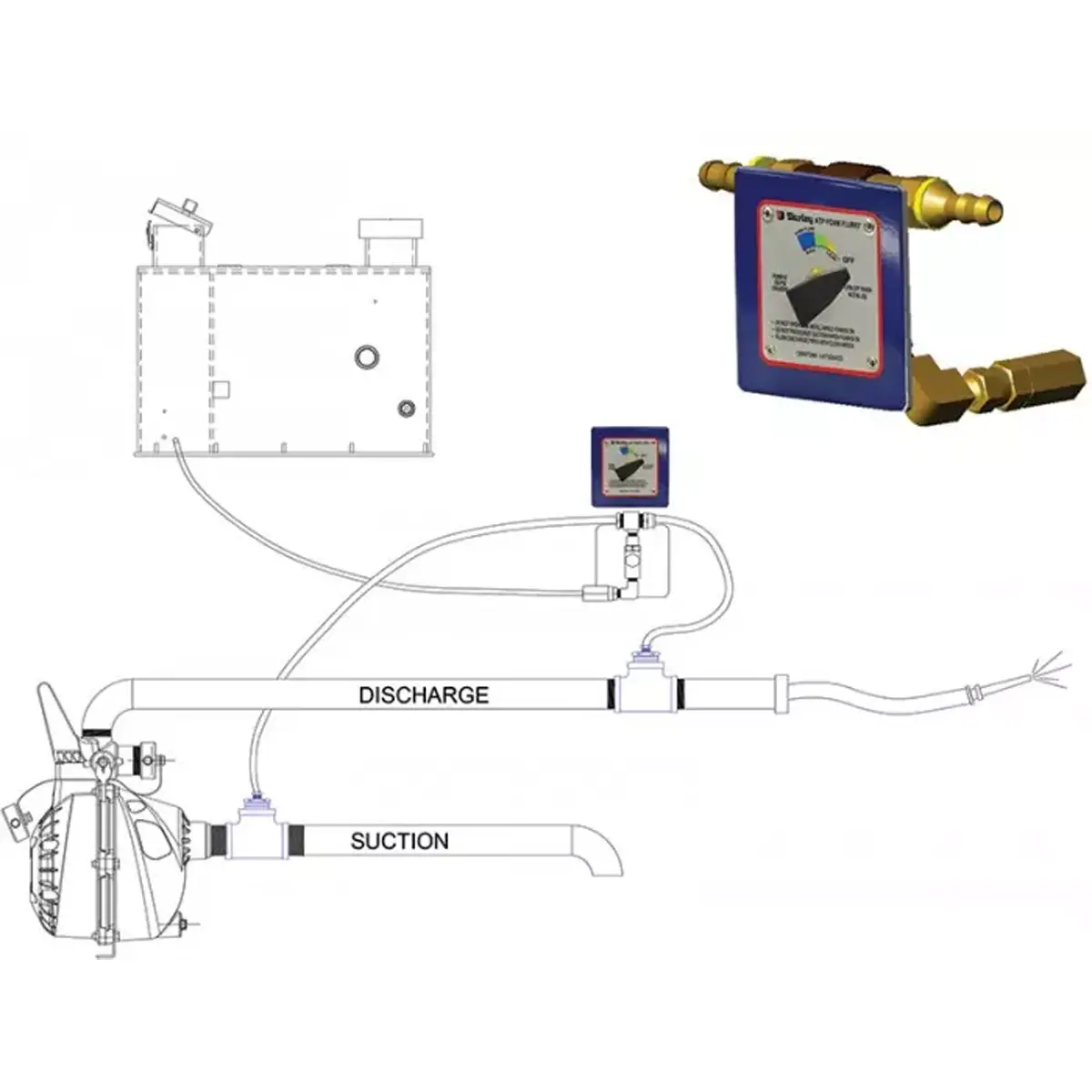

The ATP Foam Flurry is installed on a fire pump system to proportion Class A foam concentrate into the water stream. Once installed, the operator adjusts the metering valve to control the foam injection rate while maintaining the required discharge pressure for proper operation.
Who used it
The ATP Foam Flurry is designed for fire service applications, including portable pump users and departments retrofitting existing pumps that require a cost-effective foam proportioning solution without electrical power requirements.
Maintenance information
Routine maintenance includes inspecting the brass components and fittings for cleanliness and proper operation. The included strainer should be kept clean to prevent clogging of the venturi and valves, ensuring consistent foam injection performance.
Storage information
When not in use, the system components are protected within the aluminum protection box. Proper storage involves keeping the unit clean and secured to prevent damage to fittings, hoses, and internal components.

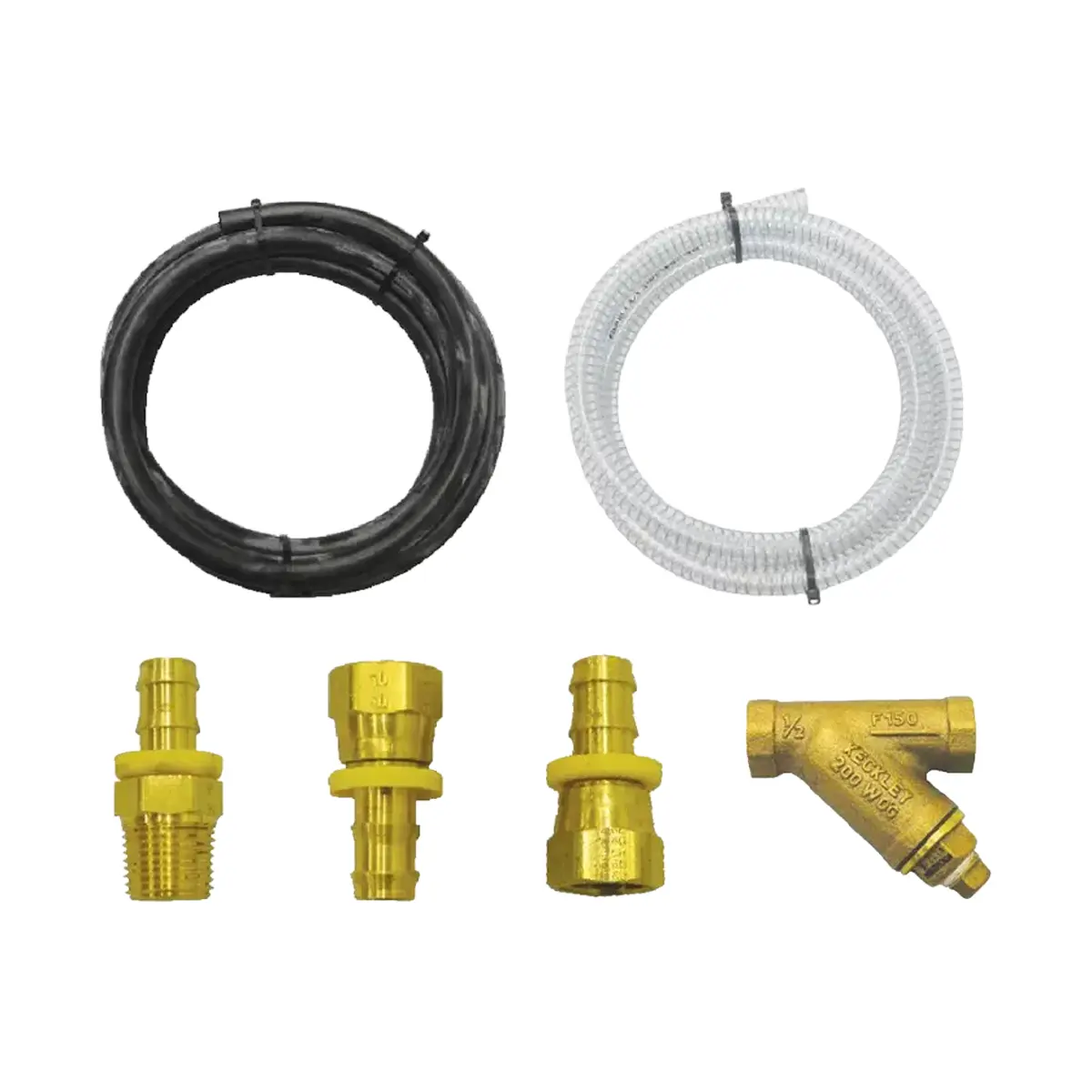

What’s included
- Installation kit with brass fittings
- Hose rated to a minimum of 250 psi working pressure
- All-brass venturi mounted in protection box
- Stainless steel remote mount operation placard
- Metering valve with pointer knob control handle
- Check valve with 1/8 inch JIC fittings
- Strainer for foam tank installation
- Aluminum protection box
- Injection capacity: Up to .65 gallons per minute
- Injection rate: Up to .5 percent at 130 gpm
- Required discharge pressure: Minimum 80 psi, optimum 100 psi or above
- Construction materials: Brass alloy components, stainless steel placard, aluminum protection box
- Hose rating: Minimum 250 psi working pressure
- Protection box dimensions: 6 inches high x 3.5 inches deep x 6 inches wide
- Model: ONATP00001
