Matjack
Aramid Lifting Bags

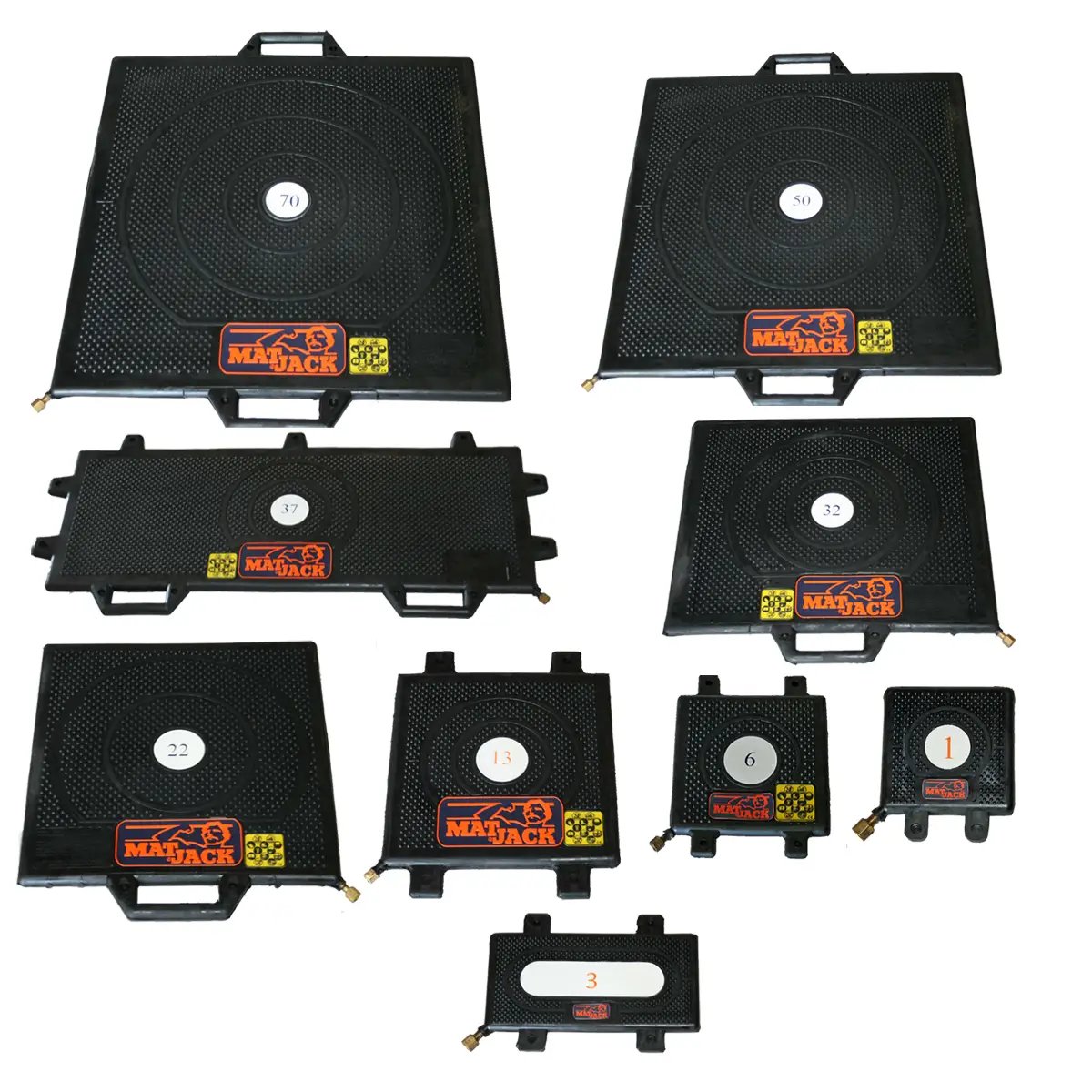

Matjack High Pressure Air Lifting Bags are advanced lifting solutions designed to lift and move heavy objects with precision and safety. These air lifting bags are available in various capacities and are reinforced with Aramid fiber, providing exceptional strength and durability. They are designed to be used in rugged, demanding, and heavy-duty applications.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- High Pressure Capability: Designed to lift and move up to 126 tons at the touch of a button.
- Reinforcement Options: Available with four full layers of Aramid fiber per side.
- Compact Design: Initial clearance of only 1 inch, allowing for use in tight spaces.
- Distinct Markings: Marked with a distinct white numbered "bulls eye" for ease of centering under the load.
- Conical Interlocking Surface: Limits slippage and aids in stacking.
- Carry Handles or Tabs: Molded right on for lifting or attaching to fixtures.
How is it used?
Matjack High Pressure Air Lifting Bags are used by placing them under the load that needs to be lifted. Once positioned correctly, the bags are inflated using a high-pressure air source. The distinct white numbered "bulls eye" marking helps in centering the bag under the load. The conical interlocking surface ensures stability and prevents slippage during the lifting process.
Who uses it?
These air lifting bags are used by professionals in various industries, including:
- Rescue Operations: Firefighters and emergency responders use them to lift and move heavy objects during rescue missions.
- Industrial Applications: Used in factories and construction sites to relocate and align heavy machinery and odd-shaped loads.
- Automotive Industry: Mechanics and vehicle recovery specialists use them to lift vehicles and heavy components.
Maintenance Information
Matjack High Pressure Air Lifting Bags come with a 5-year warranty
. Regular maintenance includes:
- Inspection: Regularly inspect the bags for any signs of wear or damage.
- Cleaning: Clean the bags after each use to remove dirt and debris.
- Storage: Store the bags in a dry, cool place away from direct sunlight and chemicals.
Storage Information
The bags should be stored in a canvas storage bag or a watertight storage case to protect them from environmental factors
Ensure that the storage area is dry and cool to prevent any damage to the reinforcement material.
What is included?
Each Matjack High Pressure Air Lifting Bag includes:
- Aramid Fiber Reinforced Matjack High Pressure Air Lifting Bag (capacity varies)

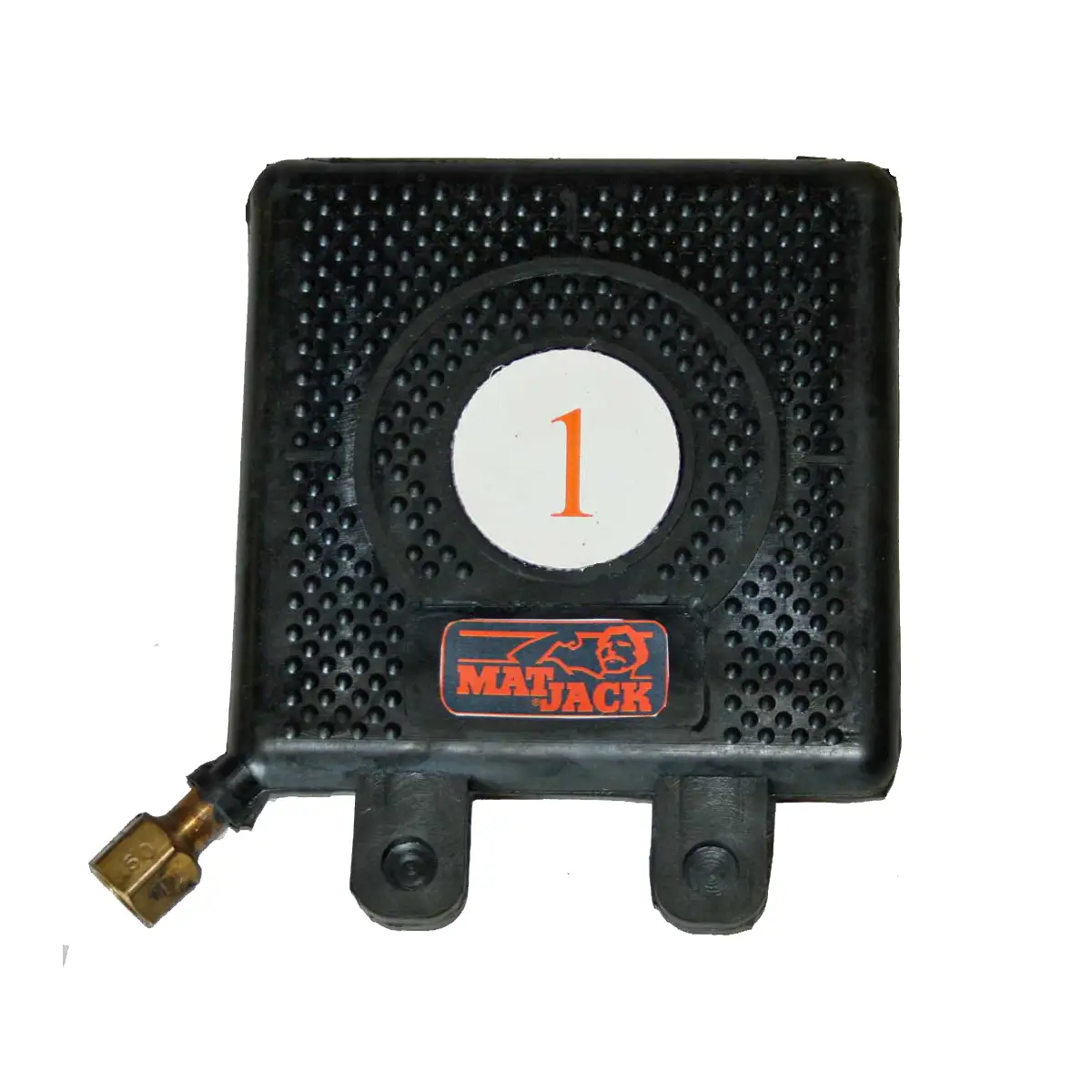

- BL950
- Dimensions: 6" x 6" x 3/4"
- Capacity: 1.5 tons
- Height: 2.5"
- Weight: 2 lbs
- Eyelets: 2
- Tabs: -
- Model: 101BK

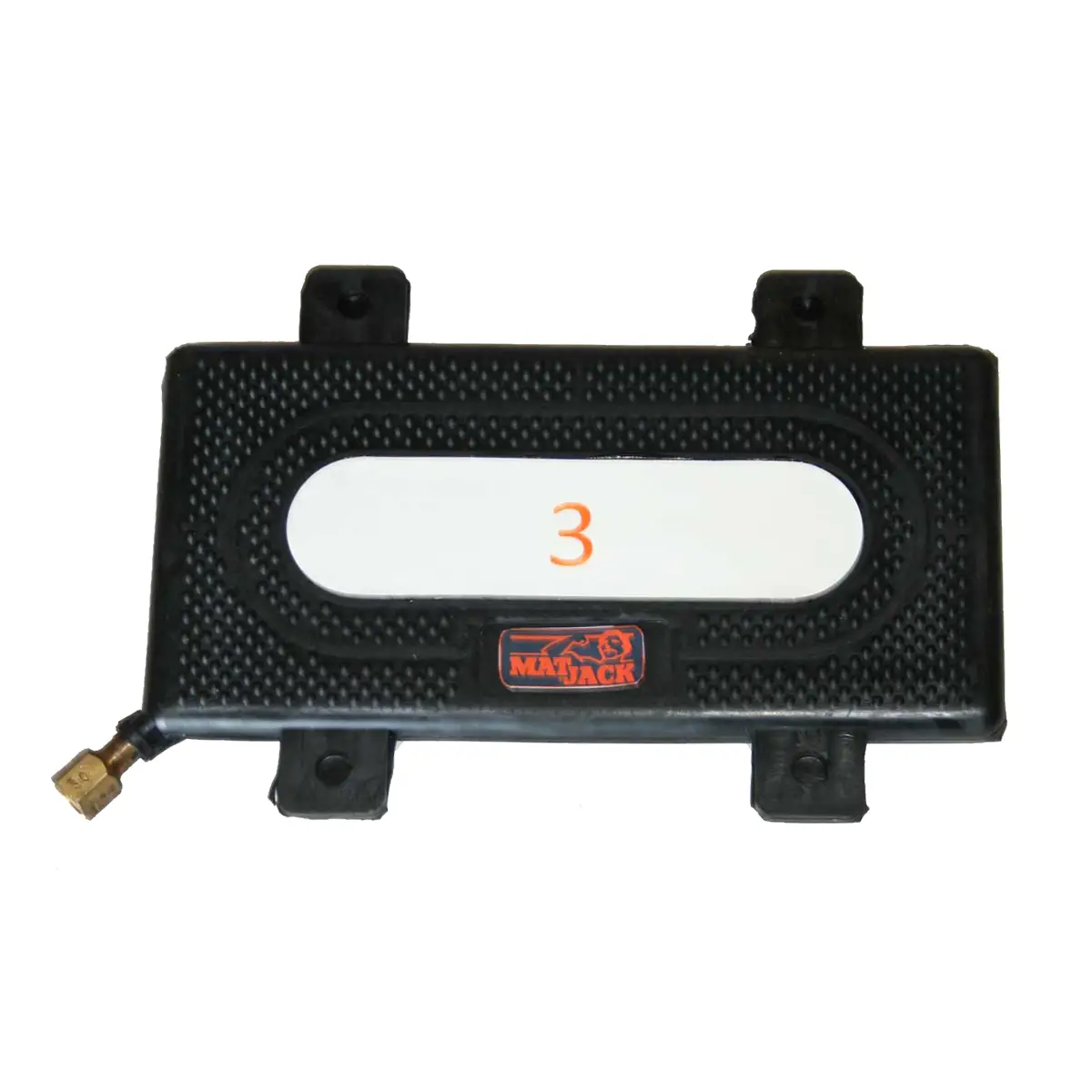

- BL951
- Dimensions: 6" x 12" x 3/4"
- Capacity: 3.3 tons
- Height: 3"
- Weight: 3 lbs
- Eyelets: 4
- Tabs: -
- Model: 103BK

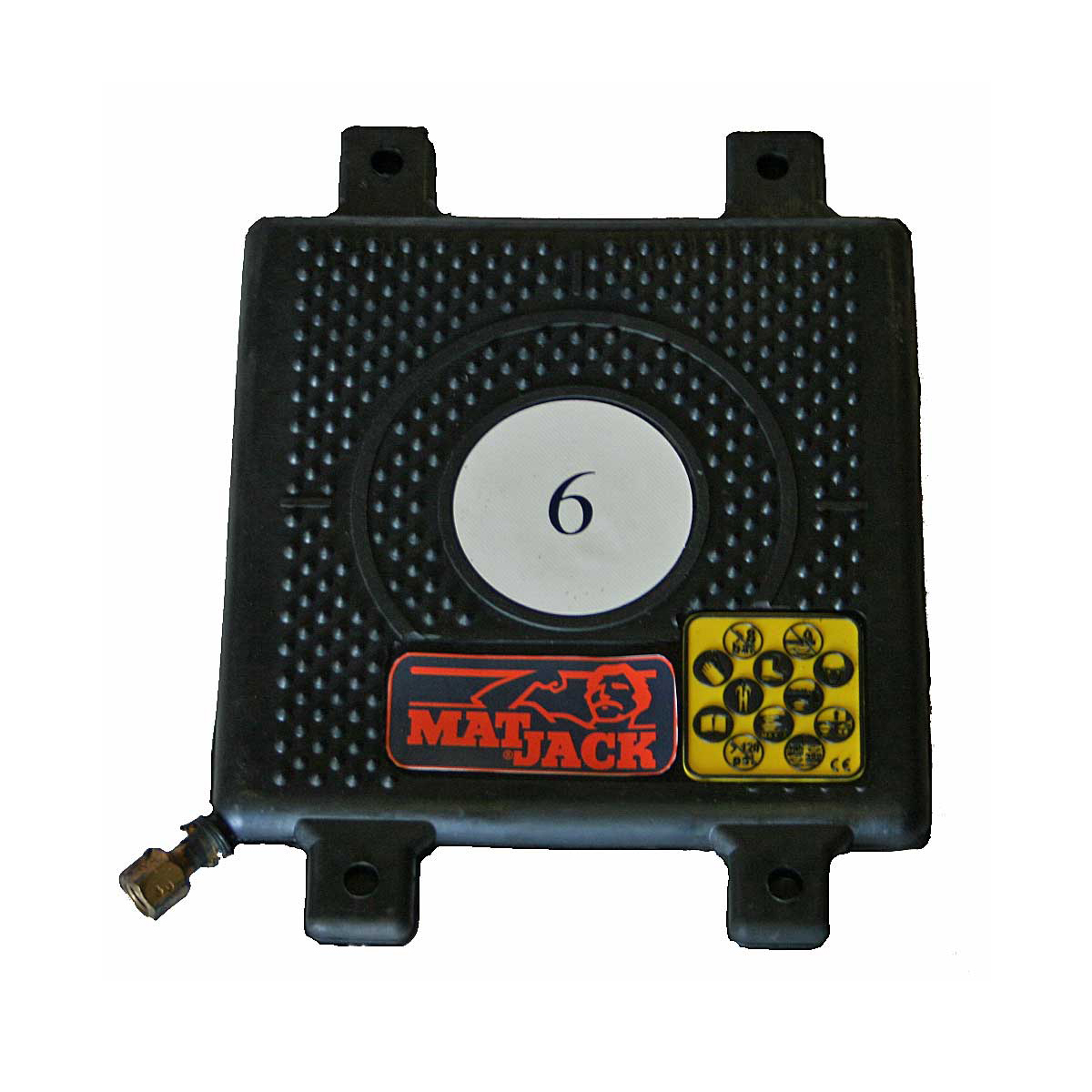

- BL952
- Dimensions: 10" x 10" x 1"
- Capacity: 6 tons
- Height: 4.5"
- Weight: 4 lbs
- Eyelets: 4
- Tabs: -
- Model: 106BK

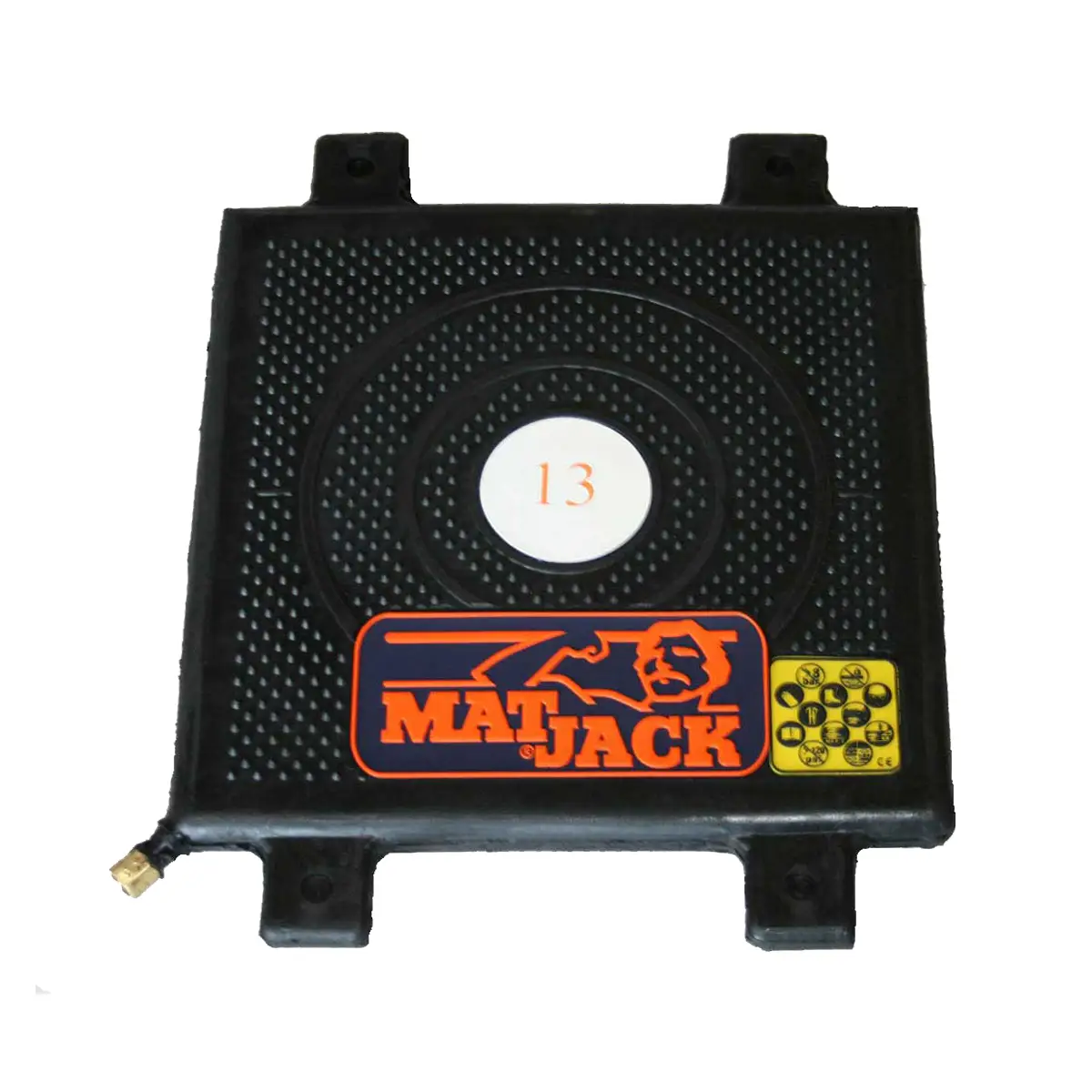

- BL954
- Dimensions: 15" x 15" x 1"
- Capacity: 13 tons
- Height: 7.5"
- Weight: 11 lbs
- Eyelets: 4
- Tabs: -
- Model: 113BK

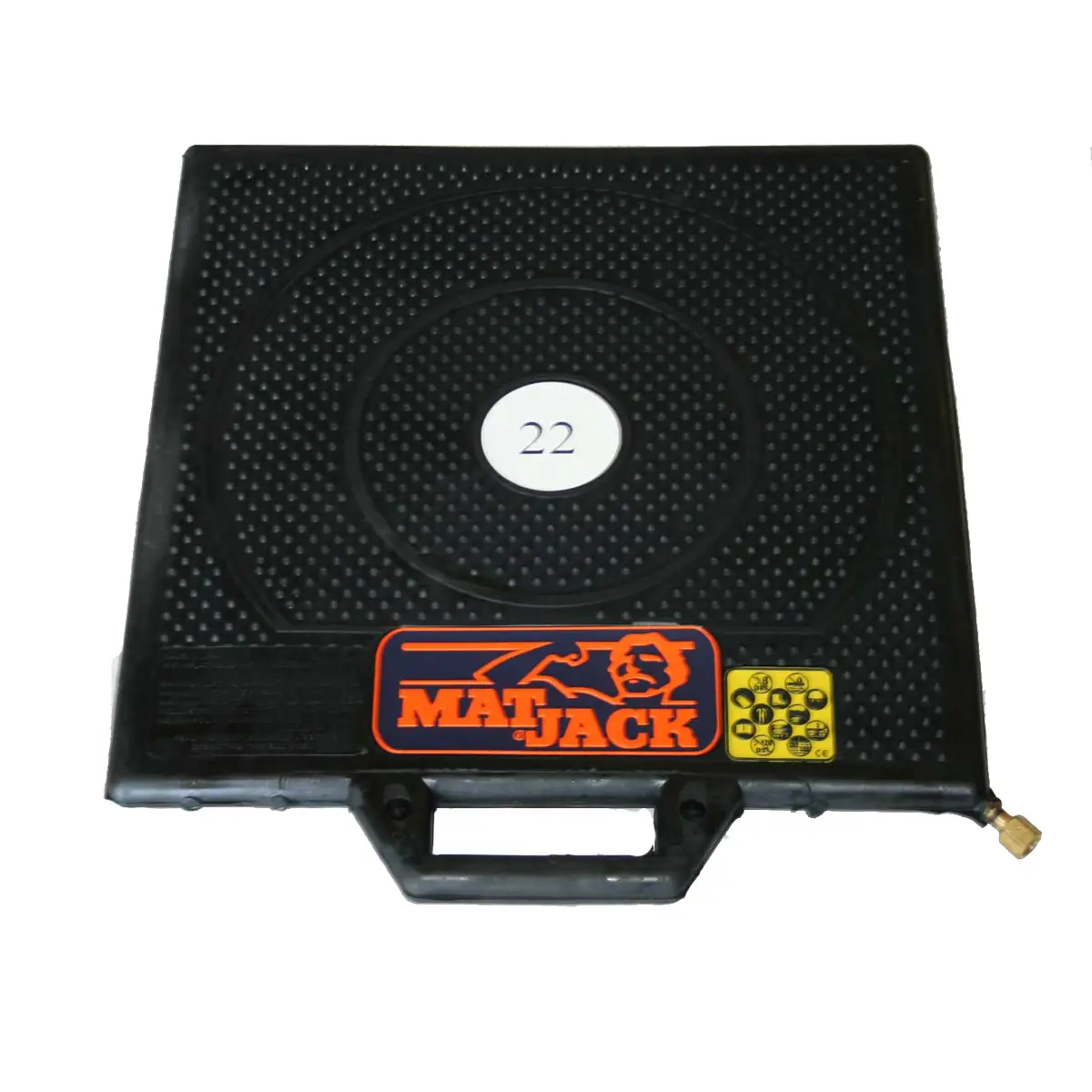

- BL956
- Dimensions: 20" x 20" x 1"
- Capacity: 22 tons
- Height: 9.5"
- Weight: 22 lbs
- Eyelets: -
- Tabs: 1
- Model: 122BK

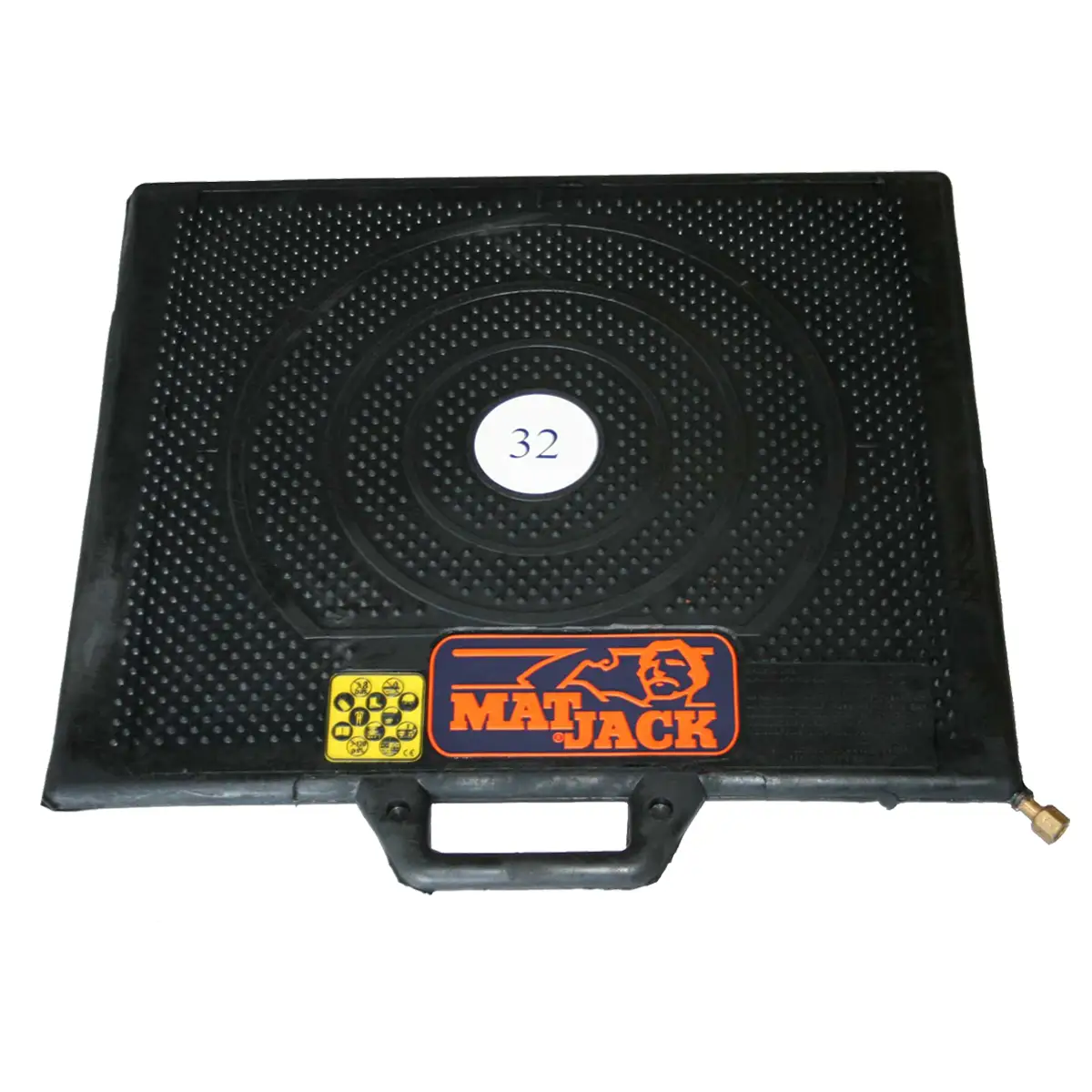

- BL958
- Dimensions: 21" x 25" x 1"
- Capacity: 32 tons
- Height: 12"
- Weight: 28 lbs
- Eyelets: -
- Tabs: 1
- Model: 132BK
- BL960
- Dimensions: 42" x 16" x 1"
- Capacity: 37 tons
- Height: 9"
- Weight: 33 lbs
- Eyelets: 7
- Tabs: 2
- Model: 137BK

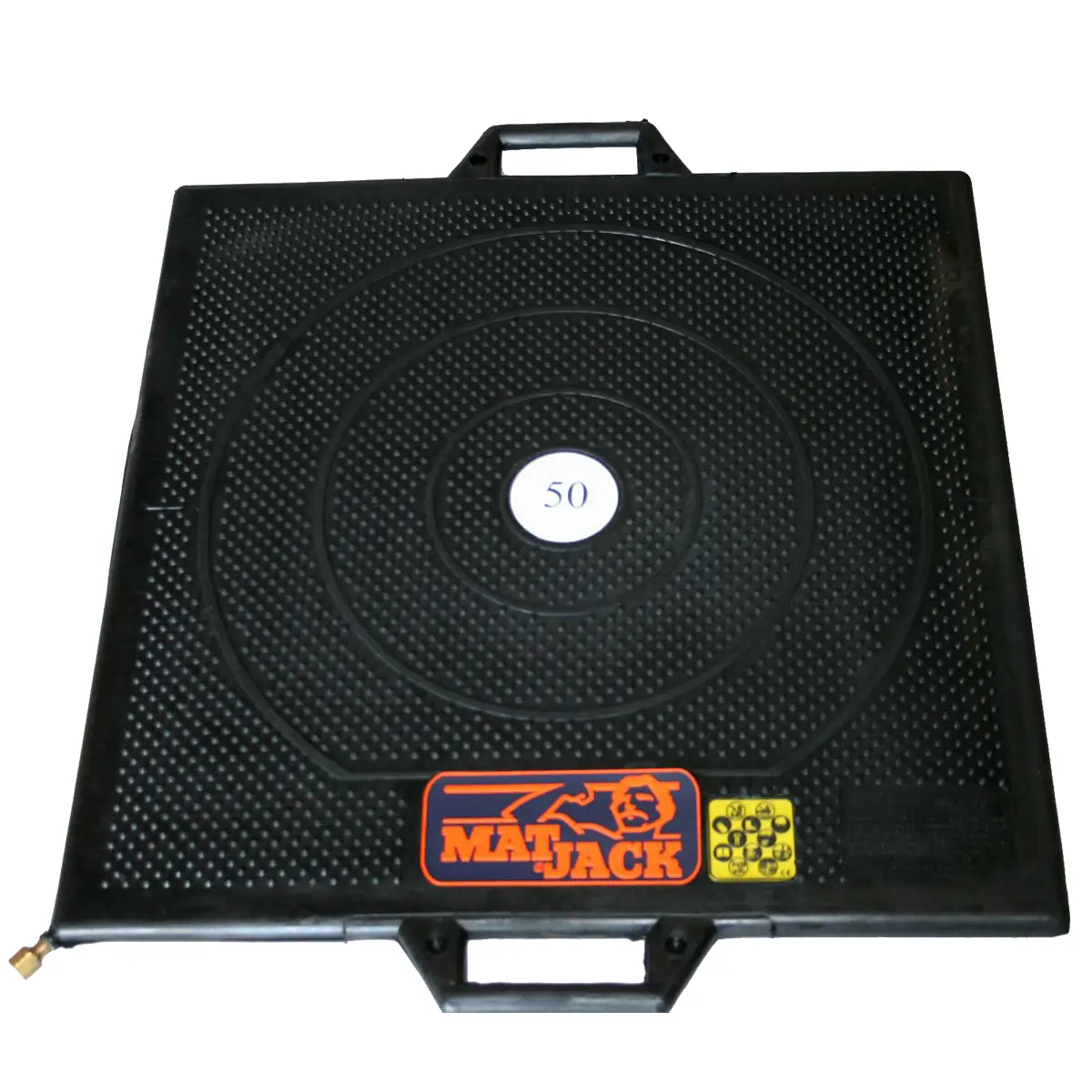

- BL962
- Dimensions: 29" x 29" x 1"
- Capacity: 50 tons
- Height: 15"
- Weight: 45 lbs
- Eyelets: -
- Tabs: 2
- Model: 150BK
- BL964
- Dimensions: 34" x 34" x 1"
- Capacity: 70 tons
- Height: 18"
- Weight: 60 lbs
- Eyelets: -
- Tabs: 2
- Model: 170BK
