Akron Brass Company

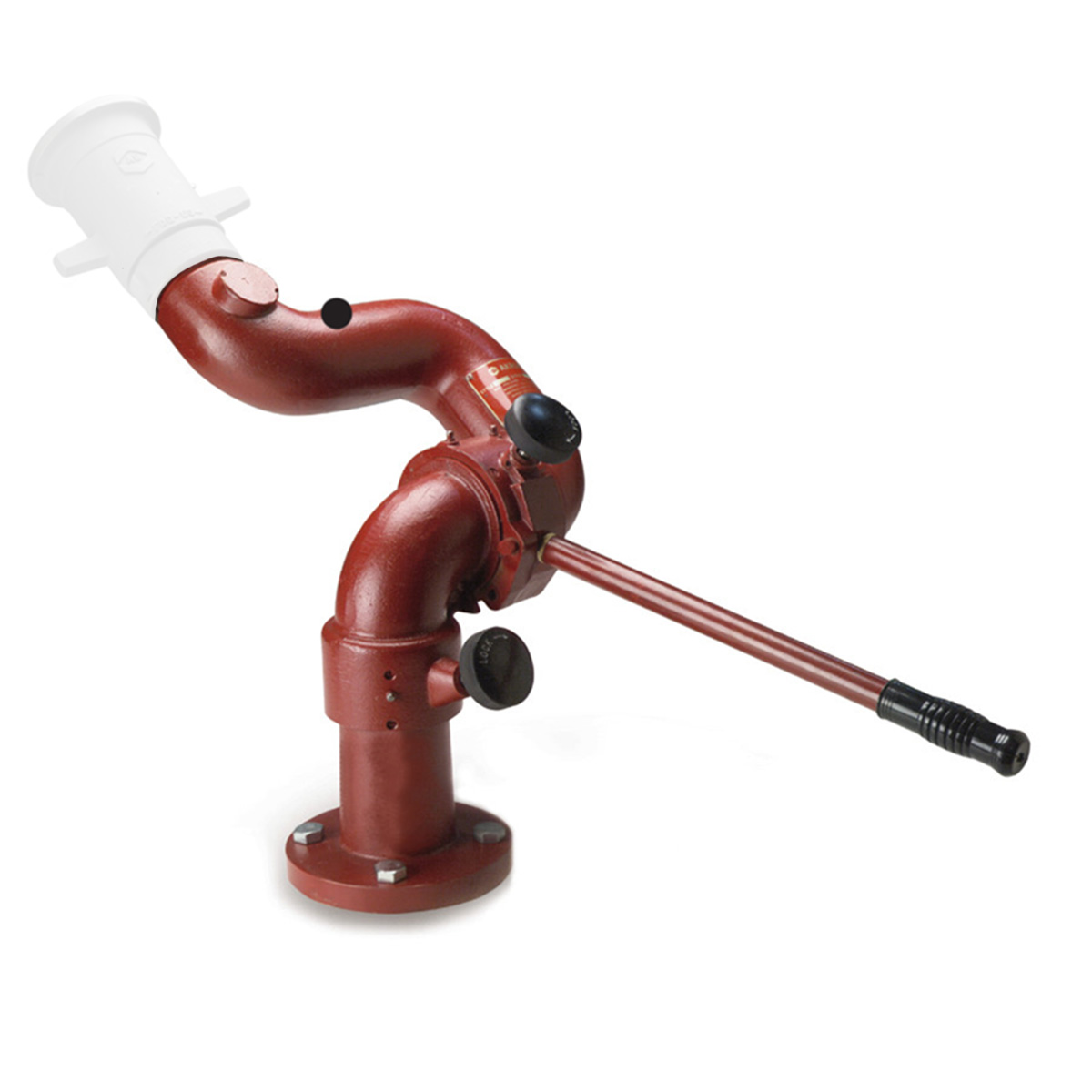

Apollo Single Waterway Monitor 3" Flange x 2.5" NH Monitor Only
SKU#: AC933
High-performance Akron Apollo Single Waterway Monitor with 3" waterway, Pyrolite construction, and 1250gpm flow for fixed fire protection installations.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Apollo Single Waterway Monitor is a durable, high‑performance water flow monitor built for fixed installations where reliable directional stream control is essential. Constructed from lightweight Pyrolite and engineered with a full 3" waterway, it delivers efficient, consistent flow rates up to 1250 gpm. Its manual tiller bar control and friction brake operation provide straightforward, dependable handling in demanding conditions.
Features
- Pyrolite construction: Lightweight yet strong material designed to withstand non-corrosive environments
- Fixed-install design: Ideal for permanent mounting where consistent stream performance is required
- Full 3 inch waterway: Enables efficient flows up to 1250gpm
- Cast-in turning vanes: Integrated vanes in each elbow for improved flow and stream quality
- 360 degree rotation: Allows comprehensive directional coverage and positioning
- Tiller bar operation: Simple, manual directional control for fast adjustments
- Friction brake: Manual brake system helps maintain the set position during operation
How Is It Used?
This monitor is installed in fixed locations and connected to a 3" flange water supply. Operators use the tiller bar to manually direct the water stream and the friction brake to hold positioning during operation. It is typically used in fire protection applications requiring controlled, high-volume water flow.
Who Uses It?
This monitor is used by fire departments, industrial facilities, and safety teams responsible for fixed fire suppression systems or high-capacity water movement needs.
Maintenance Information
Routine inspection of the tiller bar, friction brake, and swivel components is recommended to ensure smooth operation. Periodic cleaning of the waterway and visual checks of the Pyrolite body help maintain long-term performance.
Storage Information
When not in active use, the monitor should remain installed in a clean, dry, non-corrosive environment. Avoid exposure to harsh chemicals or debris that may obstruct the waterway.
What Is Included?
- Apollo Single Waterway Monitor
- 3" flange x 2.5" NH monitor connection
- Style: 3426
- Type: Deck Pipe
- Material: Pyrolite
- Width: 13.875in
- Height: 17in
- Depth: 32.75in
- Inlet: 3" flange
- Outlet: 2.5" NH
- Maximum Flow: 1250 GPM
- Maximum Pressure: 200 PSI
- Travel Range: 360° horizontal, 90° above to 60° below horizontal
