What is it?

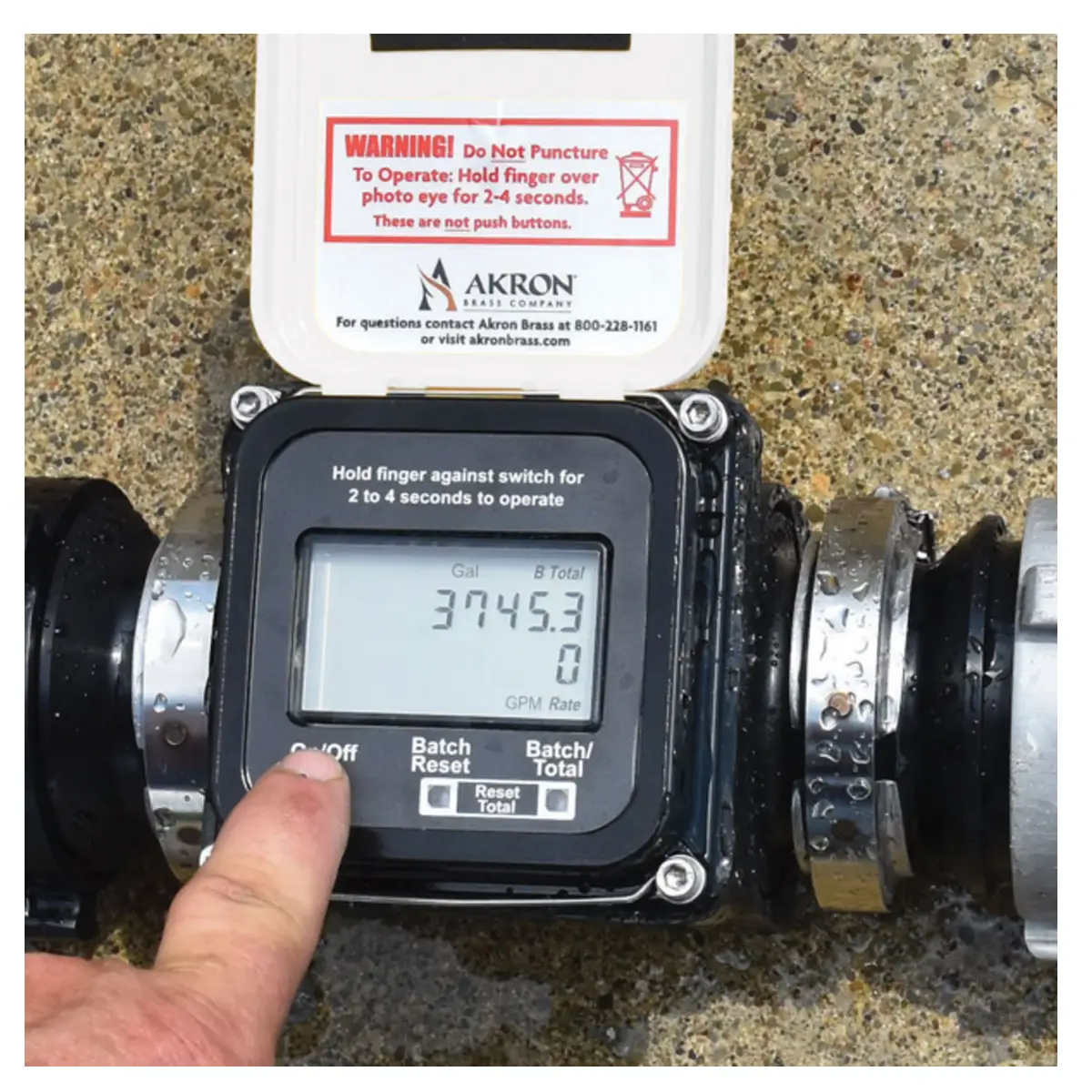

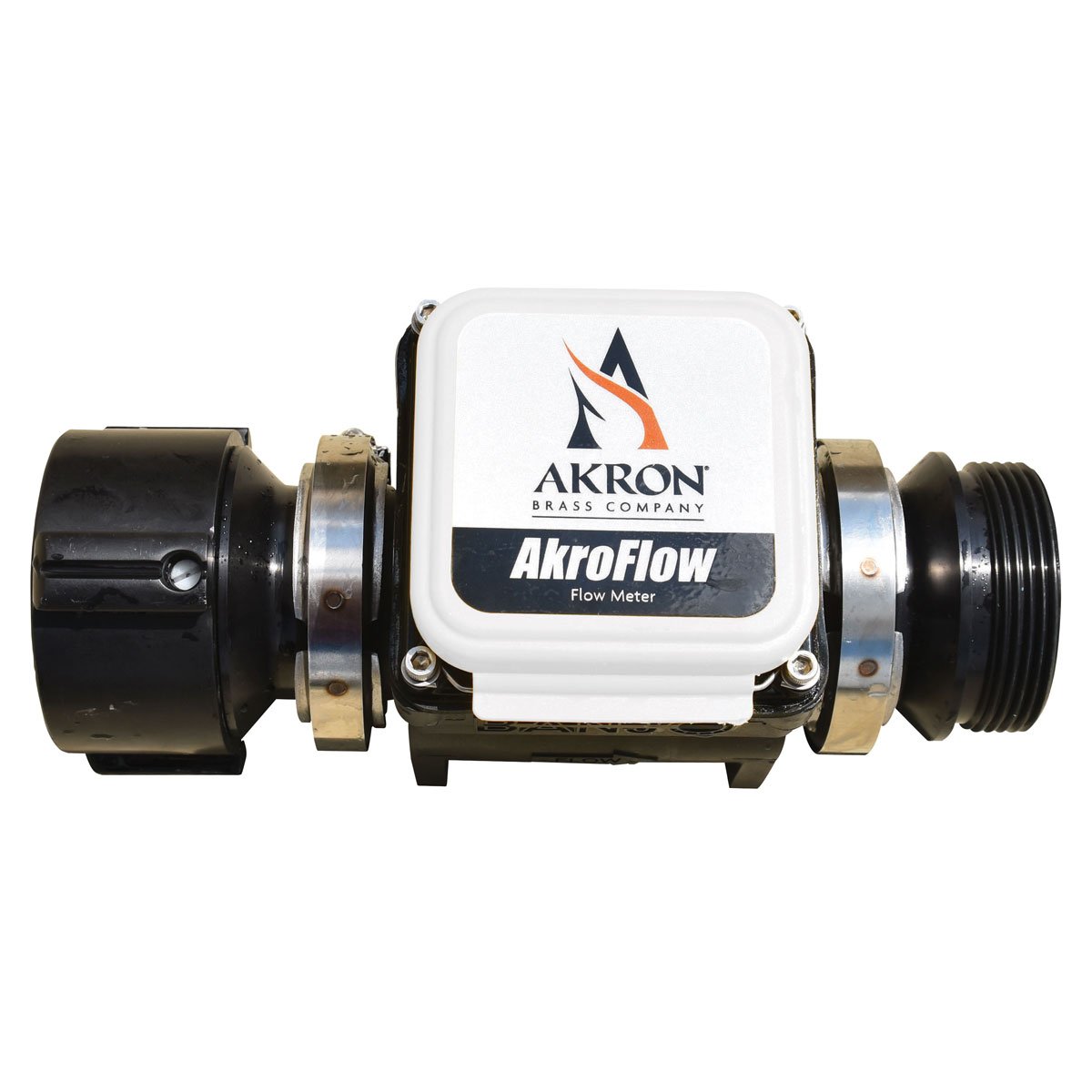

The AkroFlow™ Portable Flow Meter, Model: 93012001 is a state-of-the-art device designed for precision flow management in firefighting operations. This portable flow meter provides the most accurate flow readings in gallons per minute (GPM) or liters per minute (LPM), making it an essential tool for testing, training, and active operations on the fireground.

Features

• Best-in-Class Accuracy: Achieves an accuracy of +/-1%, outperforming competitor models.

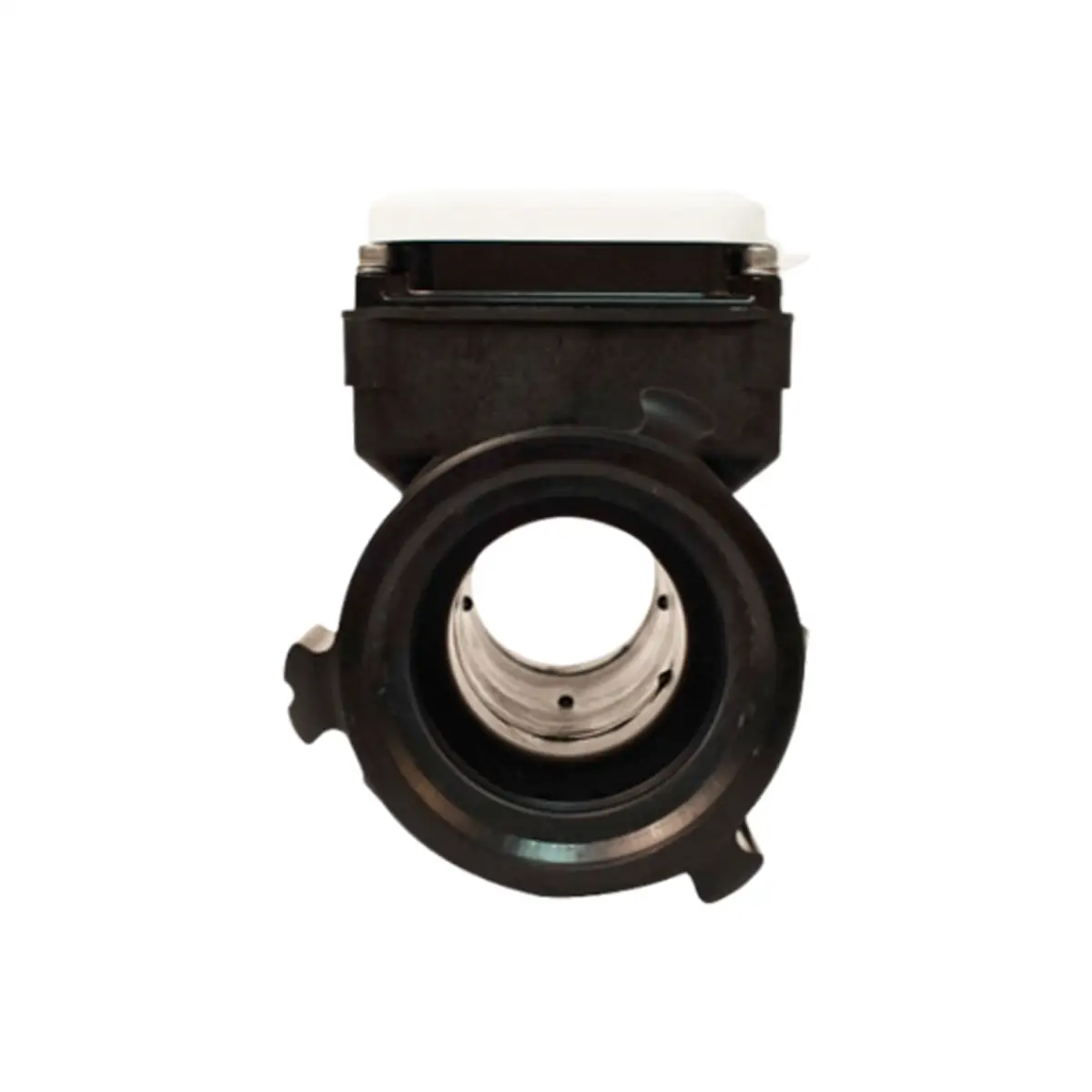

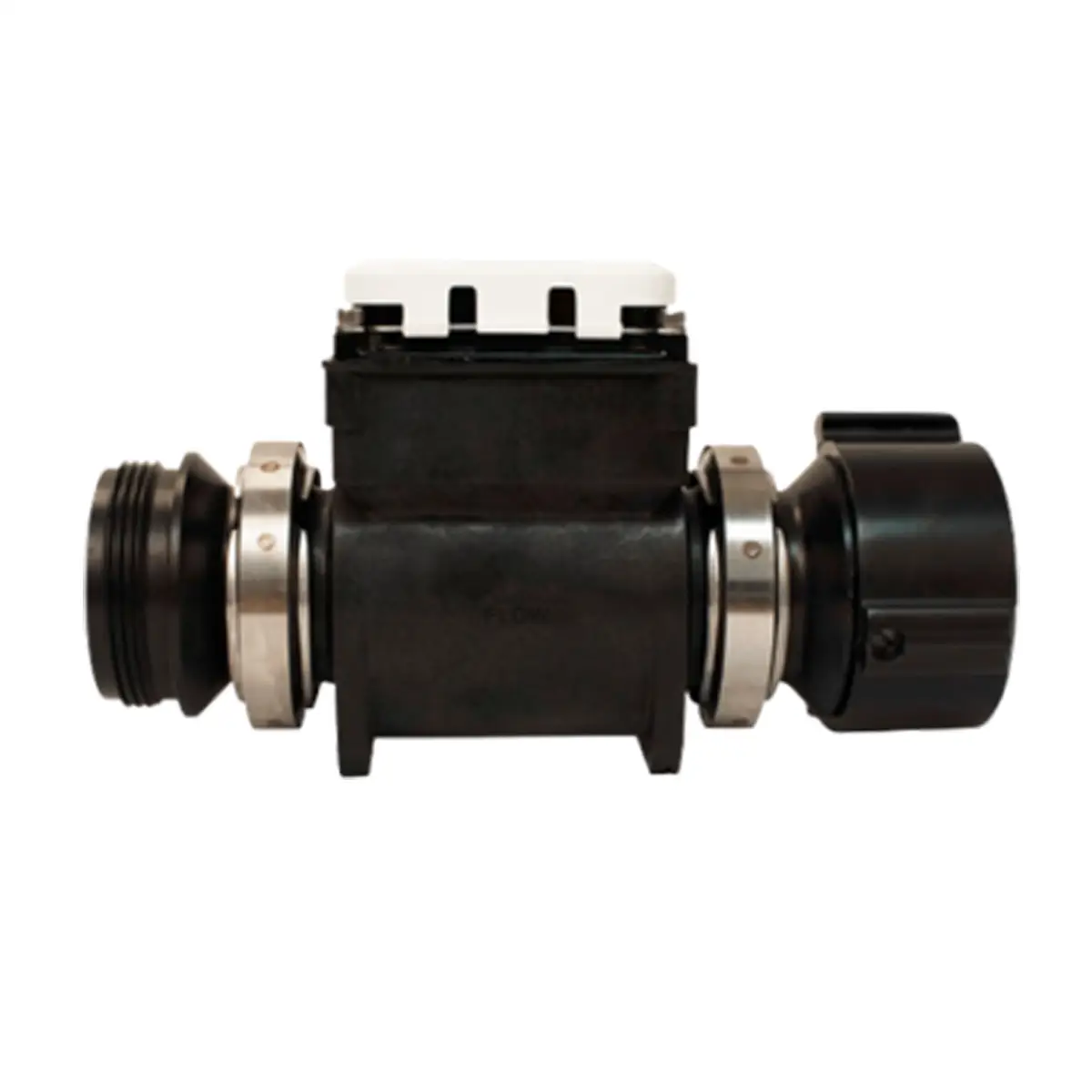

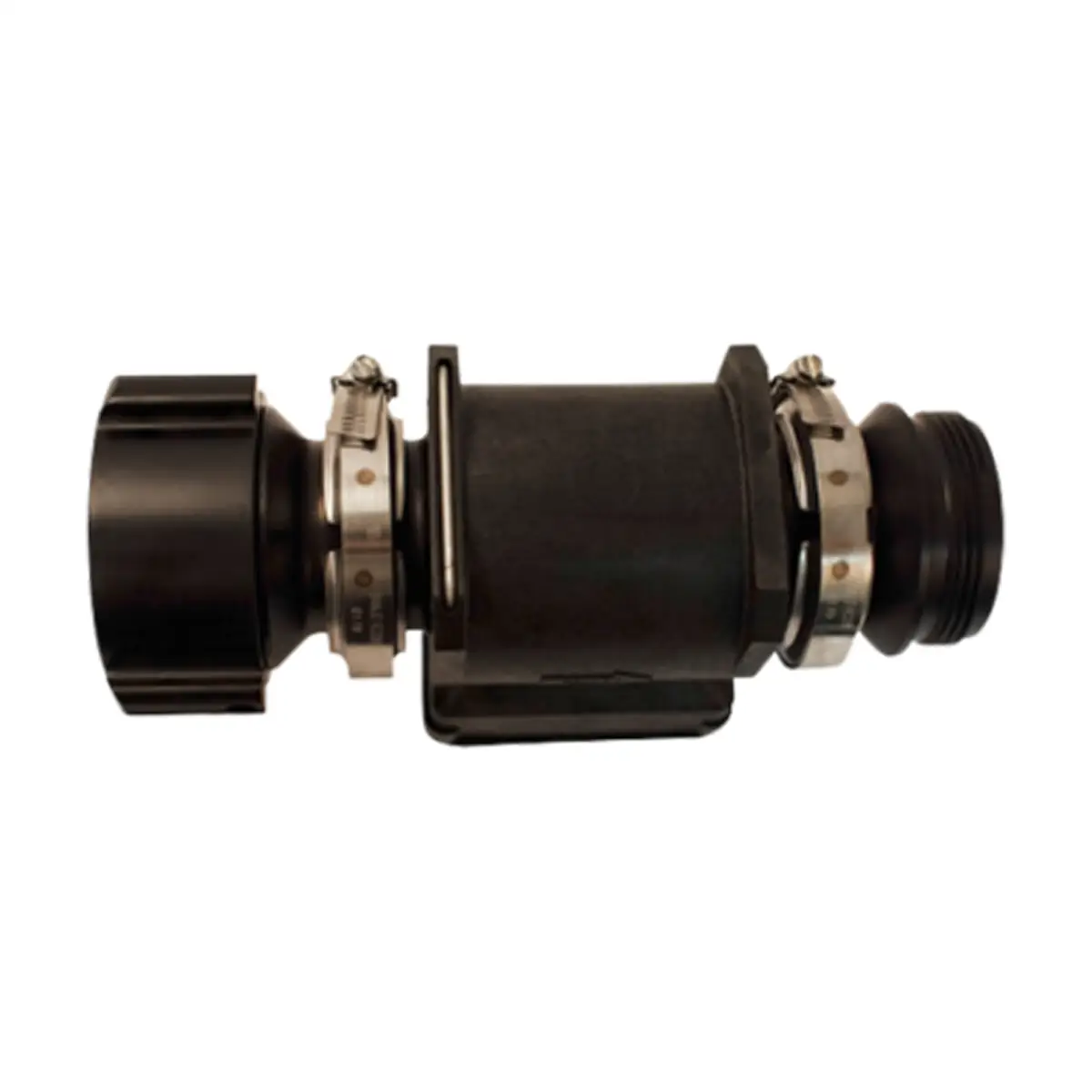

• Corrosion Resistant: Constructed with a composite body and stainless-steel electrodes and clamps.
• Lightweight and Compact: Weighs under 5 lbs. and measures 12 inches in length.
• No Calibration Required: Always ready to use without the need for calibration or charging.
• Power Efficient: Operates on 6 AA Lithium cells with a battery life of 1 year in use and 3 years dry.

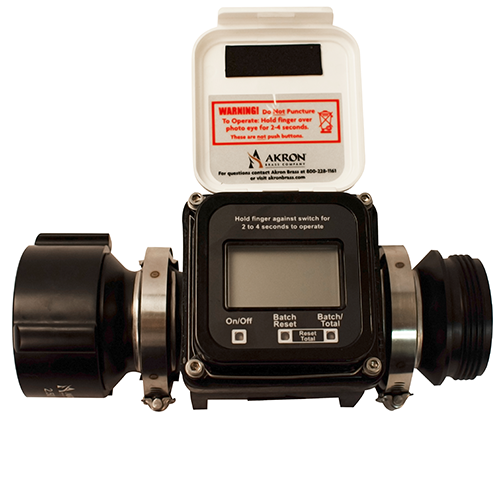

• Low Battery Indicator: Equipped with a "Lo Batt" indicator to alert users when the battery is low.
• NEMA Rating: Rated NEMA 4X standard, suitable for storage temperatures ranging from -40° to 176°F (-40° to 80°C).

How is it used?

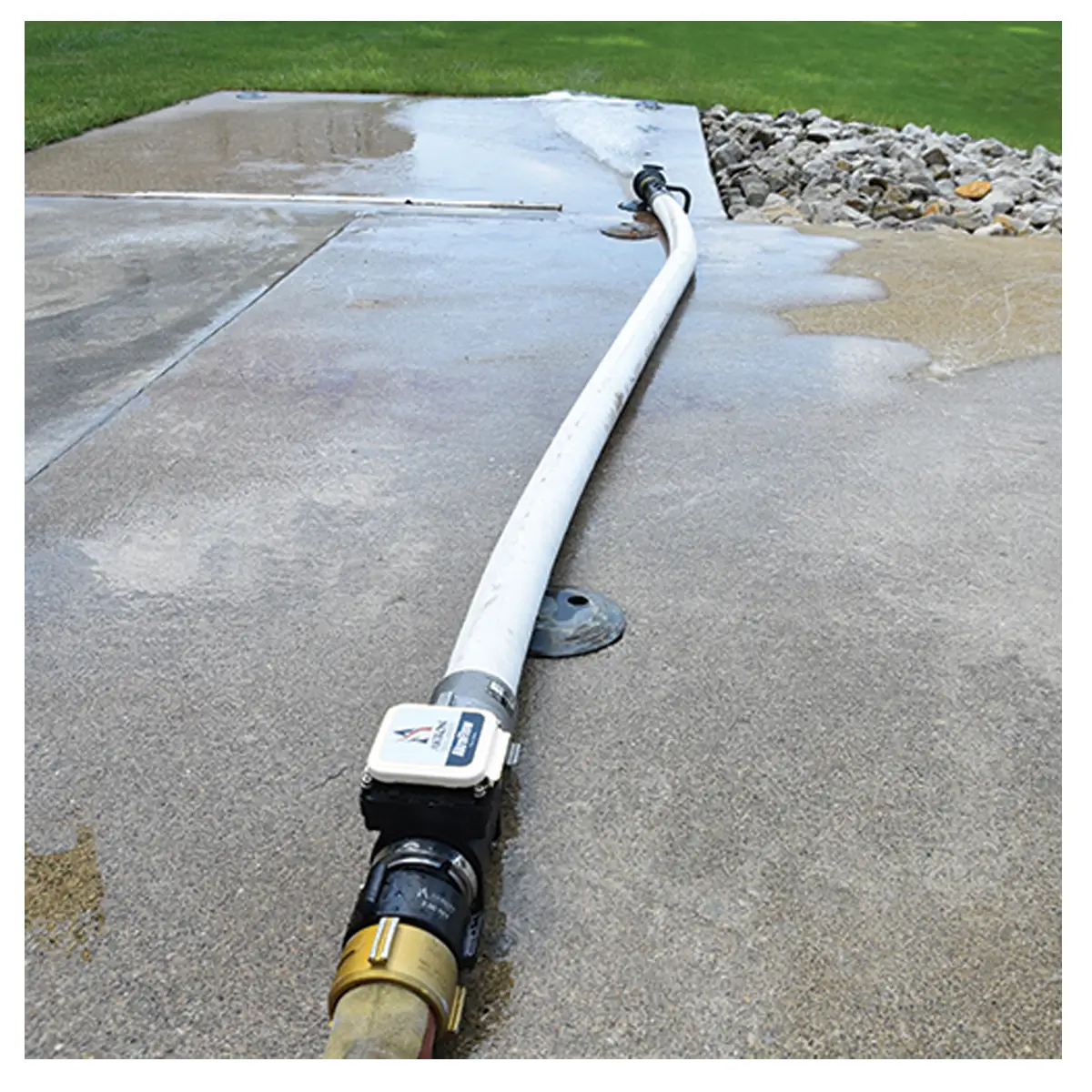

The AkroFlow™ Portable Flow Meter is used to measure the flow rate of water through fire hoses. It can be utilized for:

• Testing: Ensuring the effectiveness of fire suppression equipment.
• Training: Teaching hydraulics and proper flow management techniques.
• Active Operations: Monitoring flow rates during firefighting operations to ensure optimal performance.

Who uses it?

This flow meter is primarily used by firefighters, fire departments, and emergency response teams. It is also valuable for training academies and institutions that focus on firefighting techniques and equipment.

Installation and Tools

The AkroFlow™ Portable Flow Meter does not require any special tools for installation. It is designed for easy setup and use:

1. Attach to Hose: Connect the flow meter to the fire hose using the appropriate thread options (NH, BSP, NPSH).
2. Power On: Insert 6 AA Lithium cells to power the device.
3. Begin Measurement: Start measuring the flow rate immediately without the need for calibration.

Installation Tips

• Ensure the flow meter is securely attached to the hose to prevent leaks.
• Use the recommended hose lengths before and after the meter for accurate readings.
• Avoid mounting the flow meter directly to truck intake or discharge.

Maintenance Information

• Battery Replacement: Replace the 6 AA Lithium cells annually or as indicated by the low battery indicator.
• Cleaning: Regularly clean the composite body and stainless-steel electrodes to maintain accuracy.
• Storage: Store the flow meter in a dry, cool place when not in use. The device is rated for storage temperatures between -40° to 176°F (-40° to 80°C).

Storage Information

The AkroFlow™ Portable Flow Meter should be stored in a protective case to prevent damage. Although a storage case is not included, it is recommended to use one for added protection.

What is included?

• AkroFlow™ Portable Flow Meter, Model: 93012001
• User Manual
• 6 AA Lithium cells (for initial use)
