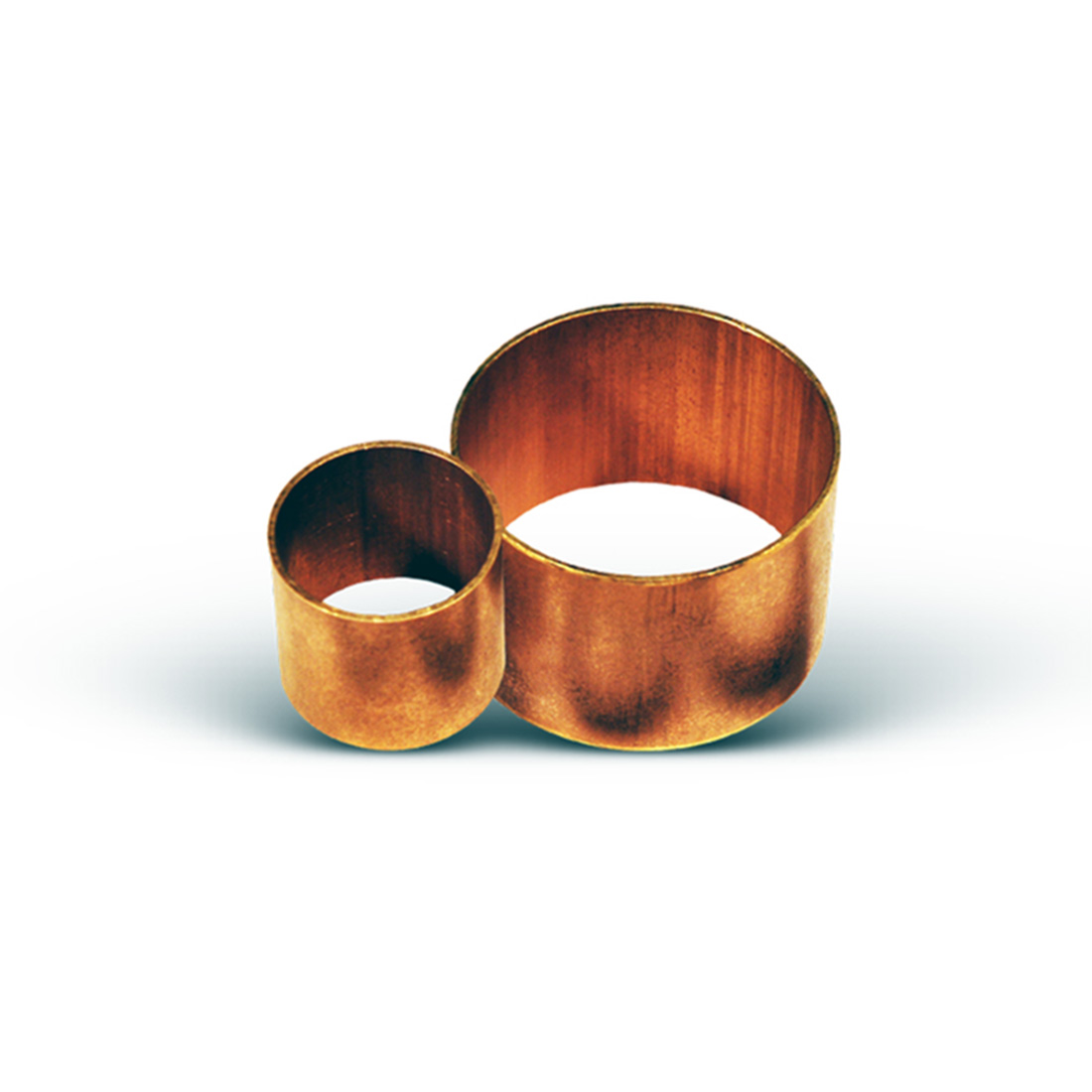

Action Coupling Expansion Ring

Features

• Seamless 85-15 Brass Construction: Provides maximum expansion capability and durability.
• Chamfered Edge Design: Helps reduce the risk of cutting or damaging hose liners during installation.
• Reliable Coupling Retention: Creates a secure mechanical connection between hose and coupling.
• Precision Manufactured: Designed for consistent expansion and fit.
• Corrosion Resistant Brass Material: Suitable for demanding fire service environments.
• Multiple Sizes Available: Accommodates a variety of hose diameters.
• Fire Hose Assembly Component: Commonly used when attaching or replacing hose couplings.
• Professional Grade Construction: Trusted by fire hose manufacturers and repair facilities.

What Is It?

Expansion rings are brass rings that are installed during the fire hose coupling attachment process. The ring is expanded inside the hose and coupling assembly to create a secure connection between the hose and fitting. These rings are commonly used in the manufacture, repair, and recoupling of fire hoses.

How Is It Used?

Expansion rings are installed using specialized expansion equipment during hose assembly or repair operations.

1. Insert the expansion ring into the hose end.
2. Position the coupling according to the manufacturer's assembly procedure.
3. Use expansion equipment to expand the ring inside the hose.
4. The ring compresses the hose against the coupling shank, creating a secure connection.
5. Verify proper installation before placing the hose into service.

Who Uses It?

• Fire Hose Manufacturers
• Fire Equipment Service Centers
• Municipal Fire Departments
• Industrial Fire Brigades
• Fire Equipment Dealers
• Fire Hose Repair Facilities
• Emergency Response Equipment Maintenance Personnel

Maintenance Information

• Inspect rings before installation for damage or deformation.
• Store in a clean, dry environment.
• Use only the correct size ring for the intended hose application.
• Follow hose and coupling manufacturer installation procedures.
• Replace damaged rings and do not reuse rings removed from service.

What Is It Used With?

• Fire Hose Couplings
• Fire Hose Expansion Equipment
• Attack Hose Assemblies
• Supply Hose Assemblies
• Hose Repair Equipment
• Fire Hose Manufacturing Systems

Material

• Material: Seamless 85-15 Brass
• Edge Design: Chamfered Edge

Notes

• Seamless 85-15 brass is used for all expansion rings to assure maximum expansion without danger of breakage.
• One edge is chamfered to lessen the danger of cutting the hose liner.
• Copper for this product is no longer available from U.S. sources and is sourced from the worldwide market.
