Avon Protection

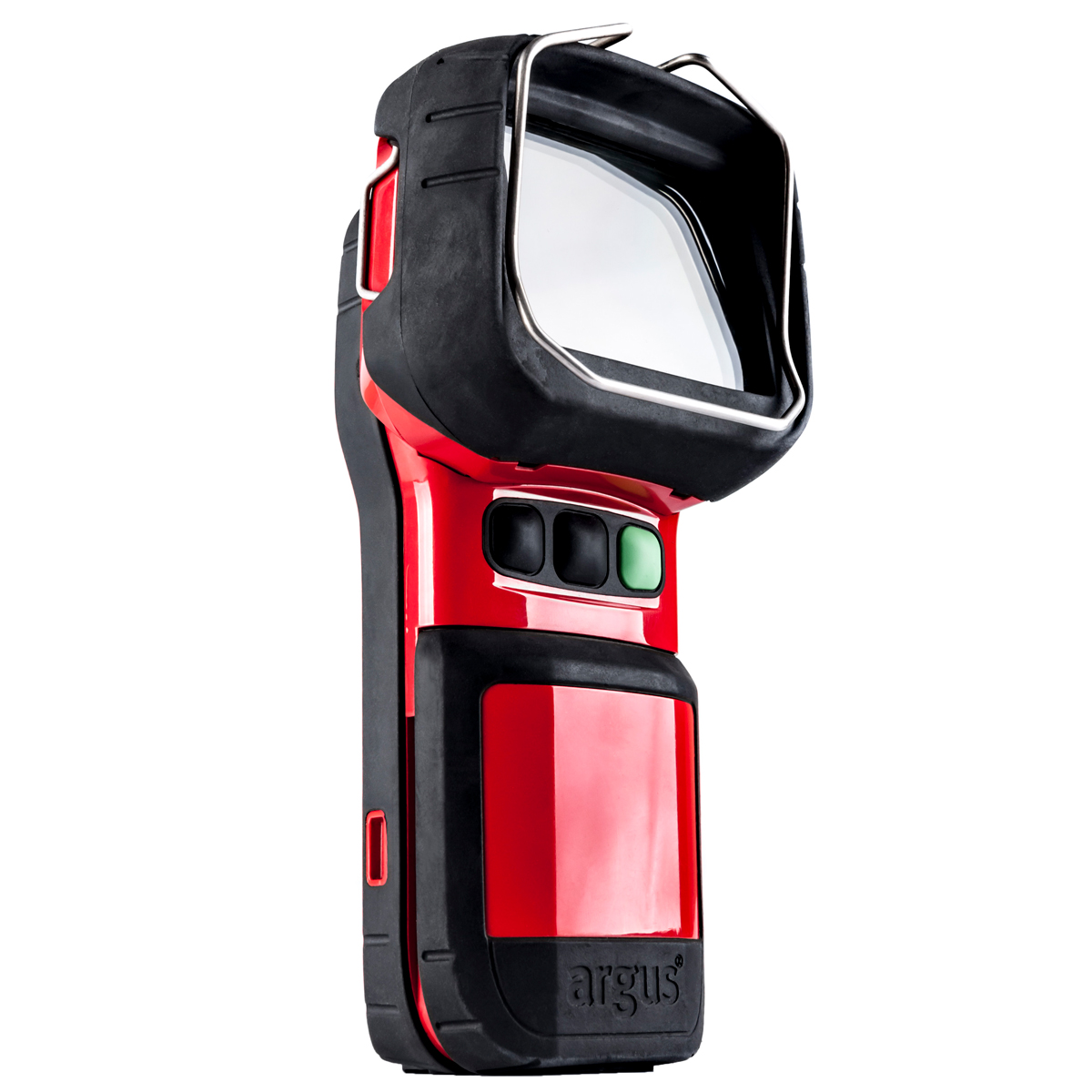

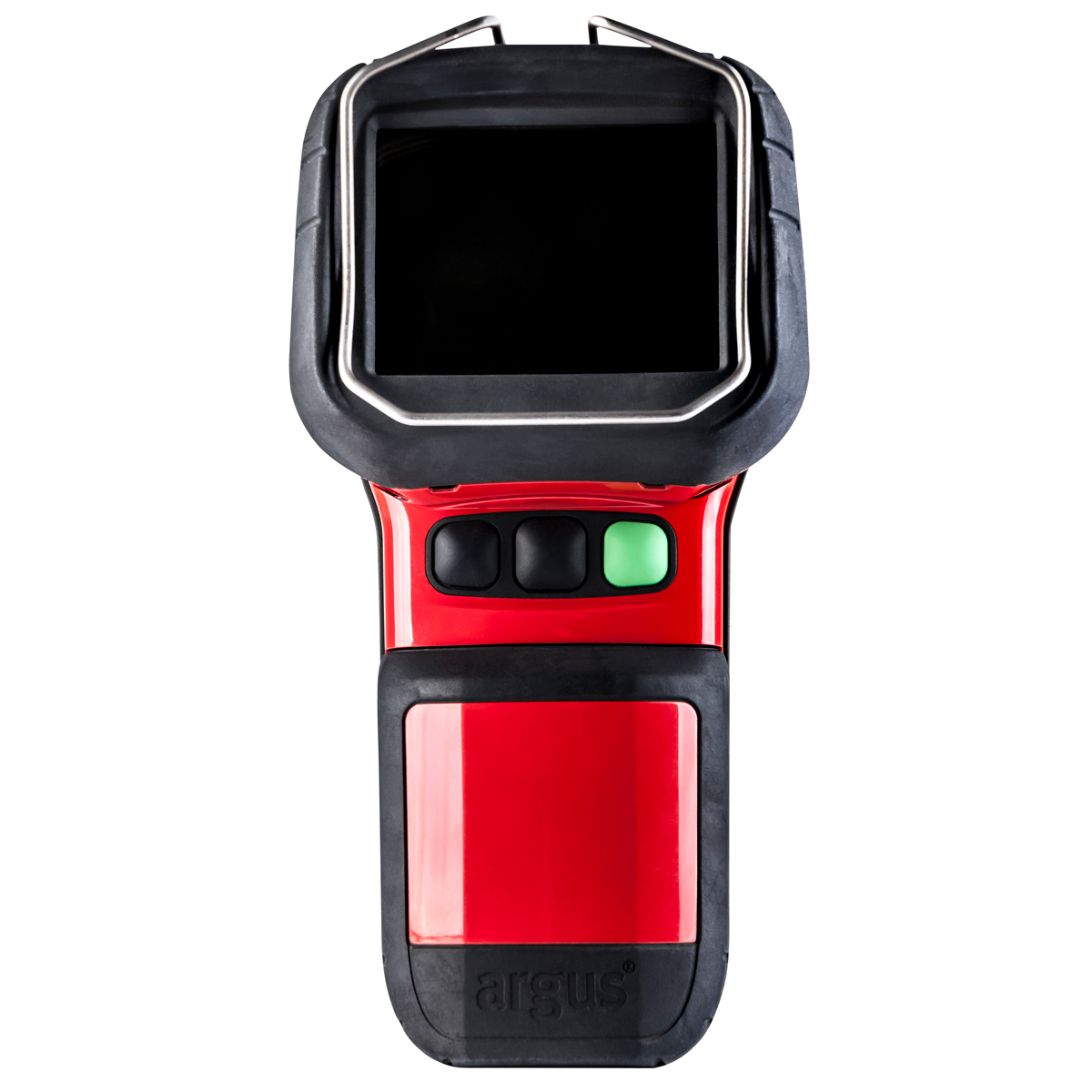

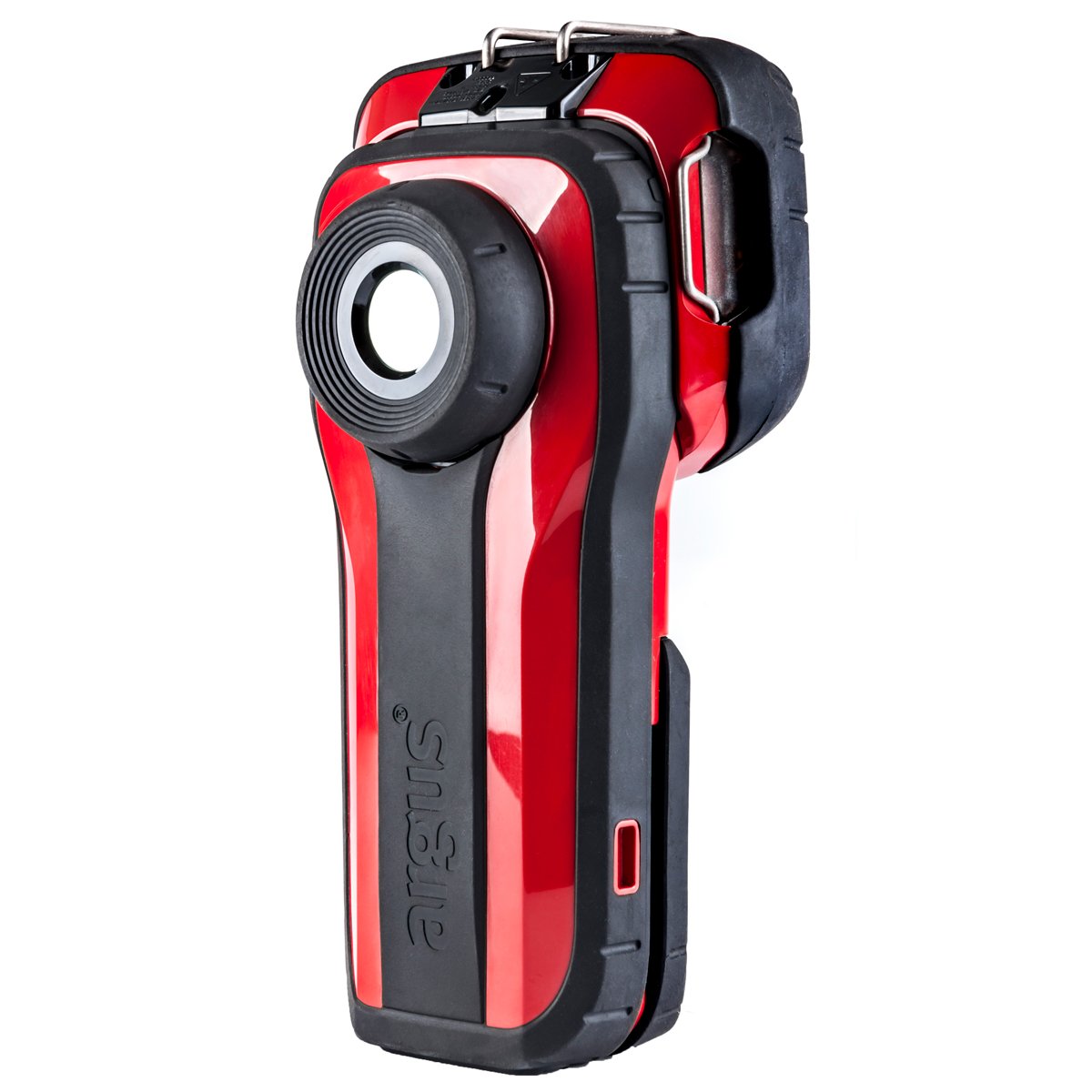

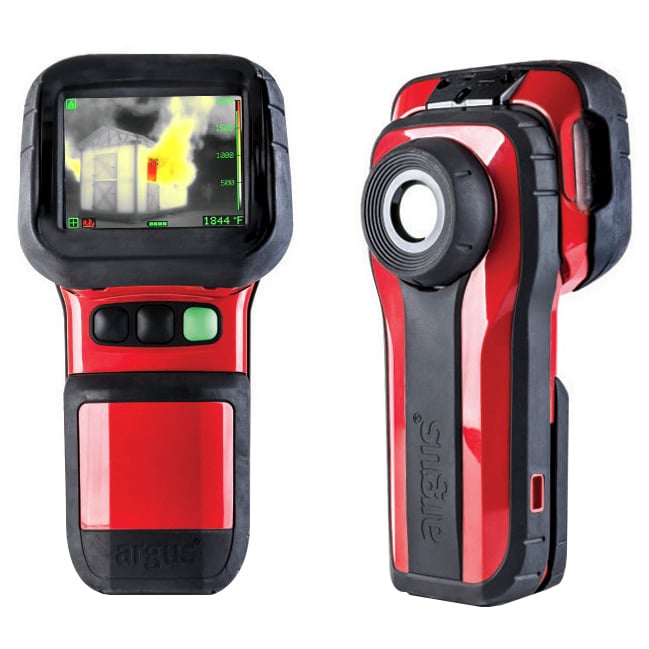

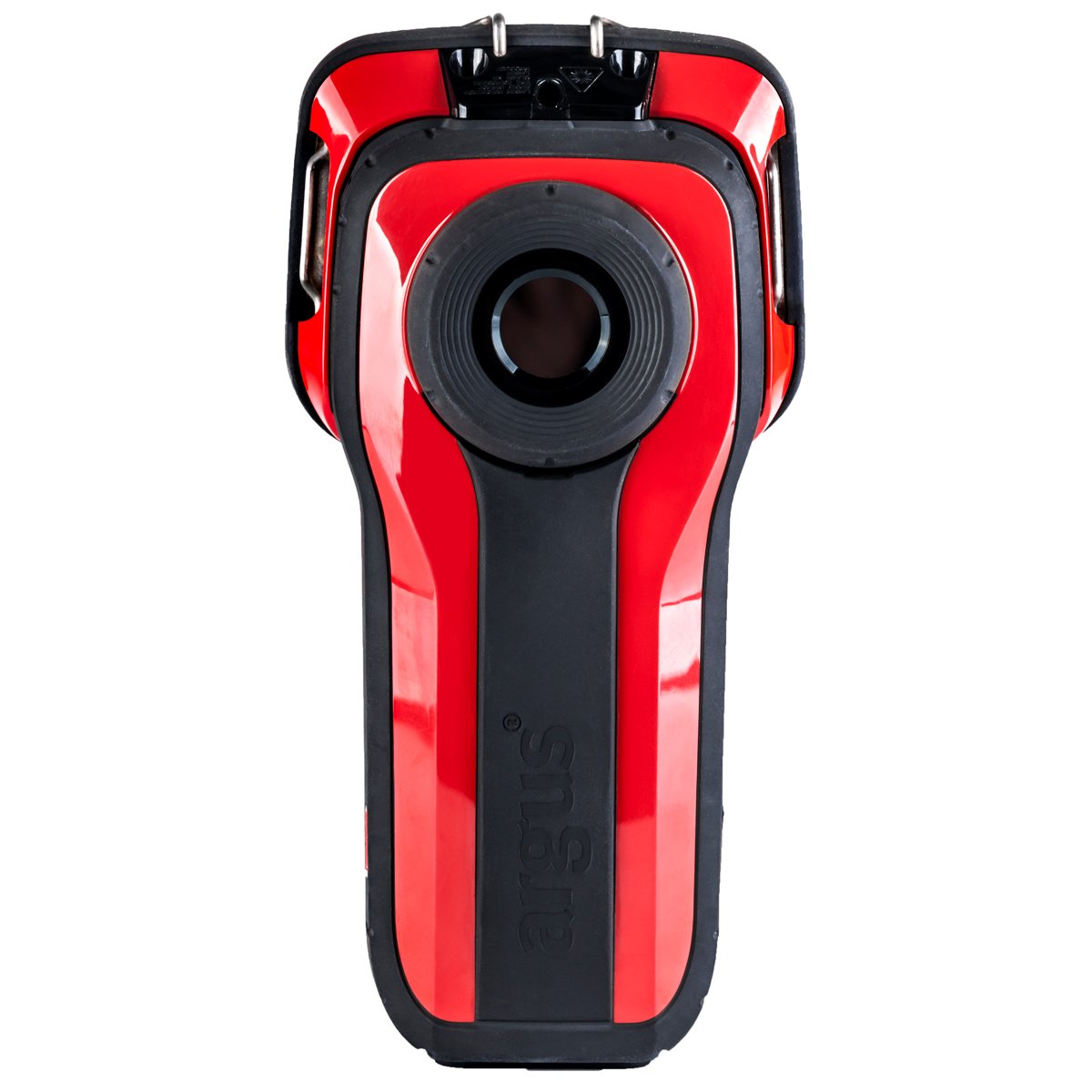

320 Mi-Tic S 3 Button 30 Hz Thermal Imager

SKU#: BN306

Typically ships in 5-6 weeks

Ships via Standard Ground

Argus 320Mi-TIC S 3 Button 30 Hz Thermal Imager is a premium light weight thermal imaging with industry leading dynamic range and oversized display for top performance in the most extreme firefighting environments. The most versatile thermal imager in the market.

Price:$8,552.95

Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.

Enter a value between 1 and 100000000 in increments of 1.

Earn Darley Dollars with this purchase

Questions? Contact Us

Introducing the most advanced thermal imager designed specifically for firefighting. This cutting-edge device features a larger 3.5″ display, providing a clearer view of the fire scene, and is lightweight at just 830g (1.8 lbs). With an extended dynamic temperature range up to 1100˚C (2000˚F), it offers greater scene detail in larger, hotter fire scenarios. The enhanced feature set includes a laser pointer to aid communication, an electronic compass for greater scene awareness, and heat/cold seeker technology.


Features

  • Image and Video Recording: Capture high-quality thermal images and videos for detailed analysis and documentation.
  • Multiple Application Specific Modes: Tailor the device settings to various firefighting scenarios for optimal performance.
  • Dynamic Scene Enhancement (DSE) Technology: Improve image clarity and detail in challenging environments.
  • Image Freeze: Freeze the thermal image for closer inspection and analysis.
  • Software Configuration Tool: Customize device settings and update firmware easily.
  • Space-Saving Truck Mountable Charger: Conveniently charge the device in your fire truck without taking up valuable space.

Applications

  • See Through Smoke: Navigate through smoke-filled environments with ease.
  • Detect and Display Fire Temperatures: Accurately measure and display the temperature of the fire.
  • Locate the Seat and Spread of the Fire: Identify the origin and spread of the fire quickly.
  • Navigate Safely During Search and Rescue Operations: Enhance visibility and safety during rescue missions.
  • Identify Residual Heat During Overhaul Operations: Detect remaining hot spots after the fire is extinguished.

Outfitted With

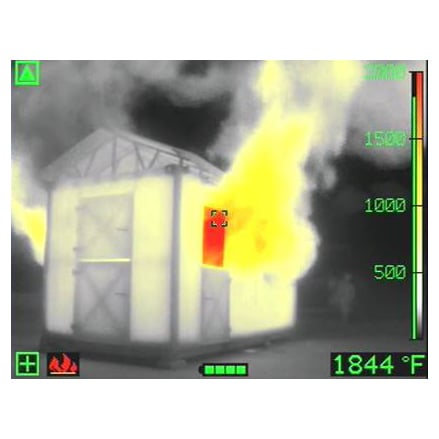

  • Fire Mode: High dynamic range and imaging for interior structural firefighting.
  • Size Up Mode: Easy colorization for size up from outside of the fire scene.
  • Overhaul Mode: Easily identify the hottest spots with red colorization.
  • Missing Person Mode: Optimized contrast and blue colorization to enhance search efforts in non-fire applications (wilderness, automobile accidents, etc.).
  • White Hot (Grey Scale Only) Mode: White hot for general applications with no heat colorization.
  • Inspection Mode: Full color scheme for preventative maintenance applications.

Additional Content

  • Durability and Reliability: Built to withstand the harsh conditions of firefighting, ensuring long-lasting performance.
  • User-Friendly Interface: Intuitive controls and easy-to-read display make operation straightforward, even in stressful situations.
  • Enhanced Connectivity: Share images and videos with team members and command centers in real-time for better coordination.
  • Ergonomic Design: Comfortable to hold and operate, reducing fatigue during extended use.
  • Training and Support: Comprehensive training programs and customer support to ensure you get the most out of your thermal imager.


Environmental Data

  • Thermal conditions:
    • Continuously between -20°C (-4°F) and +85°C (185°F)
    • At 150°C (300°F) for 15 minutes
    • At 260°C (500°F) for 5 minutes
  • Sealing: IP67; will withstand immersion in water
  • Impact: The camera will withstand a drop from a height of 2m (6.5ft) onto concrete
  • Storage: Recommended storage temperature between -20°C (-4°F) and +40°C (104°F) for maximum operational life

Detector

  • Sensor type: Un-cooled Microbolometer
  • Sensor material: Amorphous Silicon (ASi)
  • Resolution: 384 x 288px
  • Pixel size: 17µm
  • Spectral response: 7.5 – 14µm
  • MDTD (Full camera system sensitivity): 50mK (0.05°C) typical (Minimum Discernible Temperature Difference)
  • NETD (Sensor sensitivity): <50mK (<0.05°C)
  • Dynamic range: -40°C to 1100°C (-40°F to 2000°F)
  • Refresh rate: 60Hz
  • Direct Temperature Measurement (DTM): -40°C to 1100°C (-40°F to 2000°F)

Lens

  • Lens material: Germanium Composite
  • Focal length: 1m to infinity, optimized at 4m (3ft to infinity, optimized at 13ft)
  • Aperture: f/1.0
  • Field of view: 50° horizontal, 37.5° vertical, 62° diagonal

Display

  • Type: High-grade, industrial, color TFT active matrix LCD
  • Size: 90mm (3.5")
  • Pixel format: QVGA 320 x 240 (each pixel RGB format; total 230,400 pixels)
  • Video input: Sensor synchronized direct digital drive
  • Backlight: 350 cd/m²

Mechanical Data

  • Camera dimensions (H x W x D): 216mm x 110mm x 82mm (8.5" x 4.3" x 3.2")
  • Camera weight:
    • 695g (1.5lb) without battery
    • 870g (1.9lb) with standard battery
  • Standard Battery dimensions (H x W x D): 87mm x 76mm x 28mm (3.4" x 3.0" x 1.1")
  • Standard Battery weight: 175g (6oz)
  • Charger dimensions (H x W x D): 167mm x 112mm x 120mm (6.5" x 4.4" x 4.7")
  • Charger weight: 600g (1.3lb)
  • Main camera body: Radel® R-5100 and Santoprene®
  • LCD window: Ultrason® E 2010 HC
  • LCD bumper: Santoprene®
  • Ge Window collar: Radel® R-5100 and Santoprene®
  • Lens window: Germanium (2mm thick) with a durable coating

Electrical Data

  • Power consumption: <3 W typical
  • Start-up time: 5 seconds typical
  • Standard Battery type: Lithium Iron Phosphate Rechargeable Battery
  • Standard Battery capacity: 1800mAh, 6.4V
  • Standard Battery life: In excess of 4 hours @ ambient temperature (22°C / 72°F)
  • Standard Battery charge time: Less than 4 hours
  • Standard Battery recharge cycles: Over 2000 cycles
  • Standard Battery charging temperature: 5°C to 40°C (41°F to 104°F)
  • Charger input voltage: 11V – 30V DC (12V and 24V vehicle systems)
  • Charger operating temperature: 0°C to 40°C (32°F to 104°F)

Compliance Data

  • Performance: NFPA 1801:2021 Standard on Thermal Imagers for the Fire Service
  • Safety:
    • IEC 62368-1:2014 and related national standards
    • UL 121201 / CSA C22.2 No. 213:2017 Class I, Div 2 Groups C, D T4; Class II, Div 2 Groups F, G T4
  • Emissions RFI/EMC:
    • EN 55032:2015, Class A
    • EN 54098:2010
    • FCC CFR 47 subpart 15b, ICES 003:2017
    • AUS/NZ 4251.1
  • Immunity: EN 55103-2:2009
  • Vibration/Shock: BS EN 60721-3-2 Class 2M3
  • RoHS: All parts of the system are compliant with EU directive 2011/65/EC
  • Laser: IEC/EN 60825:2014 & 21 CFR 1040.10 & 1040.11 except for deviations pursuant of Laser Notice No. 50, dated June 24, 2007
  • Model: MI-TIC-S-3
