Darley

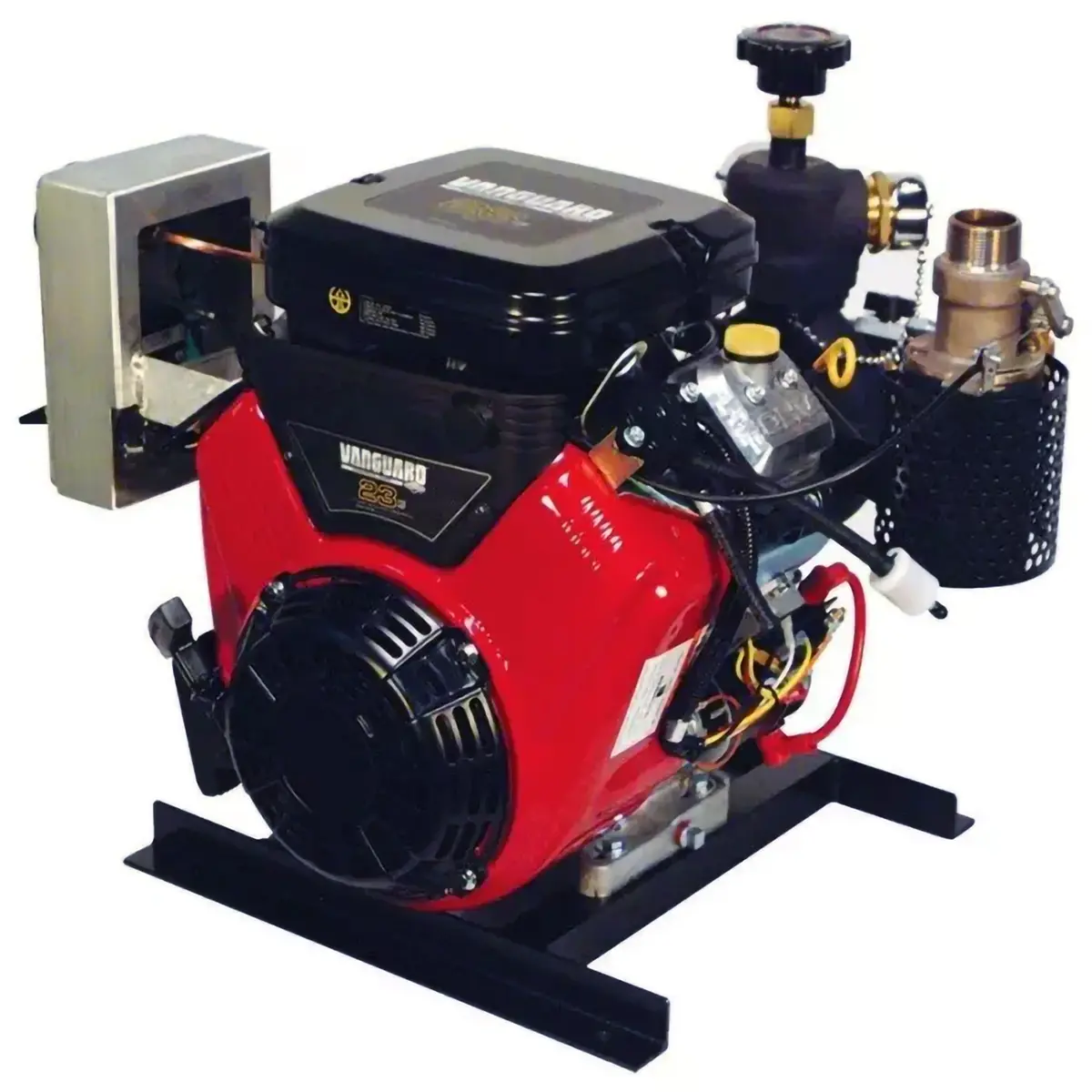

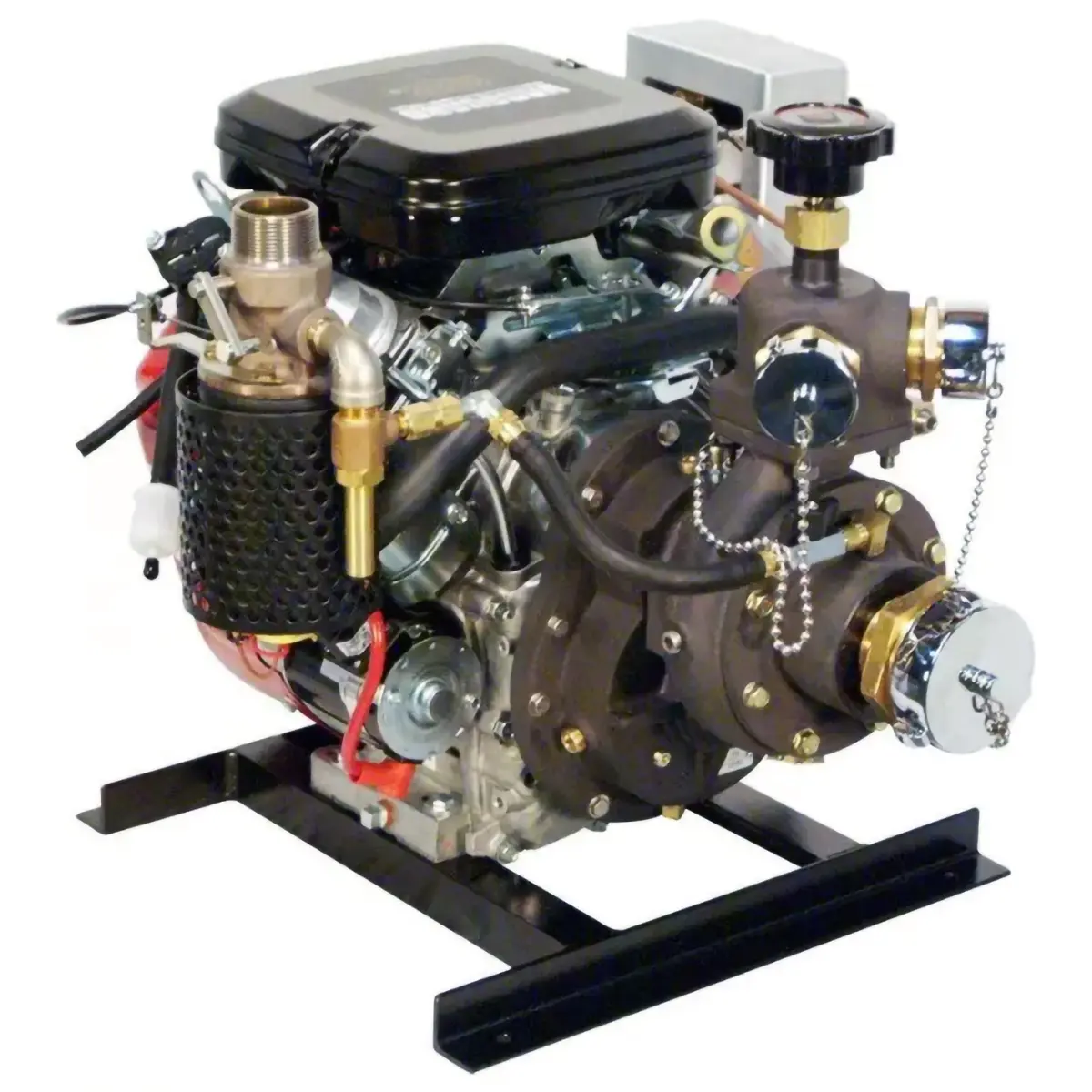

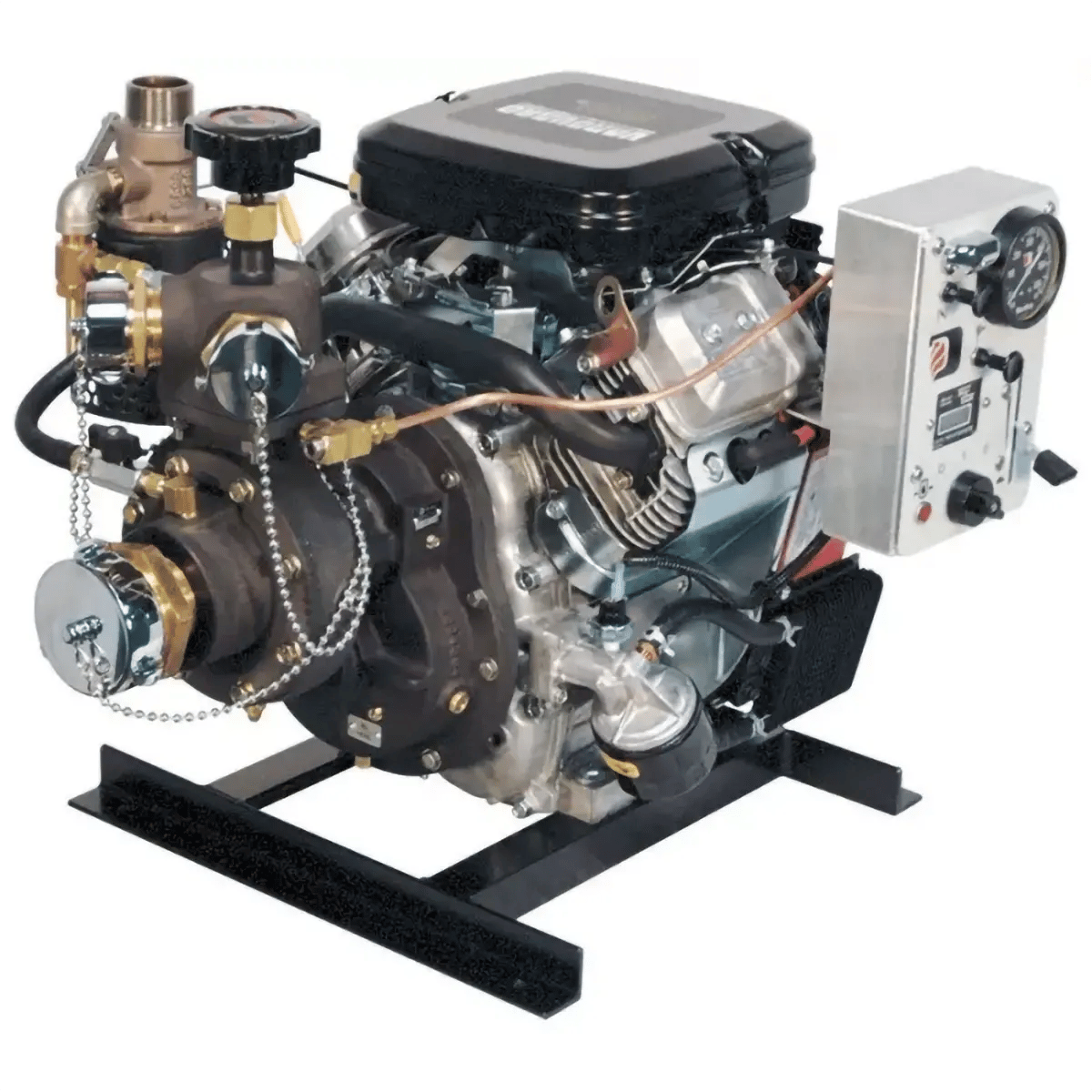

1.5AGE 23V Vanguard Portable Pump
SKU#: 1-1/2AGE 23V
The 1-1/2AGE 23V Vanguard Portable Pump is a high-pressure, medium-volume, gear-driven, engine-mounted pump designed for demanding fire suppression and emergency response applications. Engineered with precision and built to last, it delivers exceptional power and reliability in the most challenging environments.
Features
- Hard anodized aluminum alloy casing and discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Bronze impeller and wear ring
- Mechanical seal
- Heat-treated alloy steel helical gears
- Built-in discharge check valve
- Adjustable discharge valve
- Exhaust primer
- 2" NPT suction
- Two 1-1/2" NPT discharge
Applications
- Wildland/Attack Fire Suppression
- Multiple Hand Lines
Options
- Adapters
- Gauge
- Battery
- Caps
Contact Us for Price
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Performance
1-1/2 AGE23V
- 120 gpm (454 L/M) @ 145 psi (10.0 bar)
- 50 gpm (189 L/M) @ 255 psi (17.6 bar)
- 20 gpm (76 L/M) @ 265 psi (18.2 bar)
Optional 1-1/2 AGE23V High Pressure - Pressures up to 410
- 100 gpm (378 L/M) @ 150 psi (10 bar)
- 70 gpm (264 L/M) @ 215 psi (14 bar)
- 20 gpm (75 L/M) @ 365 psi (25 bar)
- 10 gpm (37 L/M) @ 390 psi (26 bar)
Engine
Briggs & Stratton Vanguard
- 4 cycle
- 23 HP
- V-twin
- OHV
- Replaceable oil filter
- 12-volt starter with recoil rope start back-up
- 16-amp regulated alternator
- 6 gal. fuel tank
- Hose and adapter
Weight
- 180 lbs. (82 kg)
Dimensions
- 24"L x 21"W x 24"H
PDF Drawings
- 1-1/2AGE 23V Drawing - dad071623V.pdf
- 1-1/2AGE 23V Drawing - dad1602.pdf
- 1-1/2AGE 23V Drawing - dad1603.pdf
