Darley

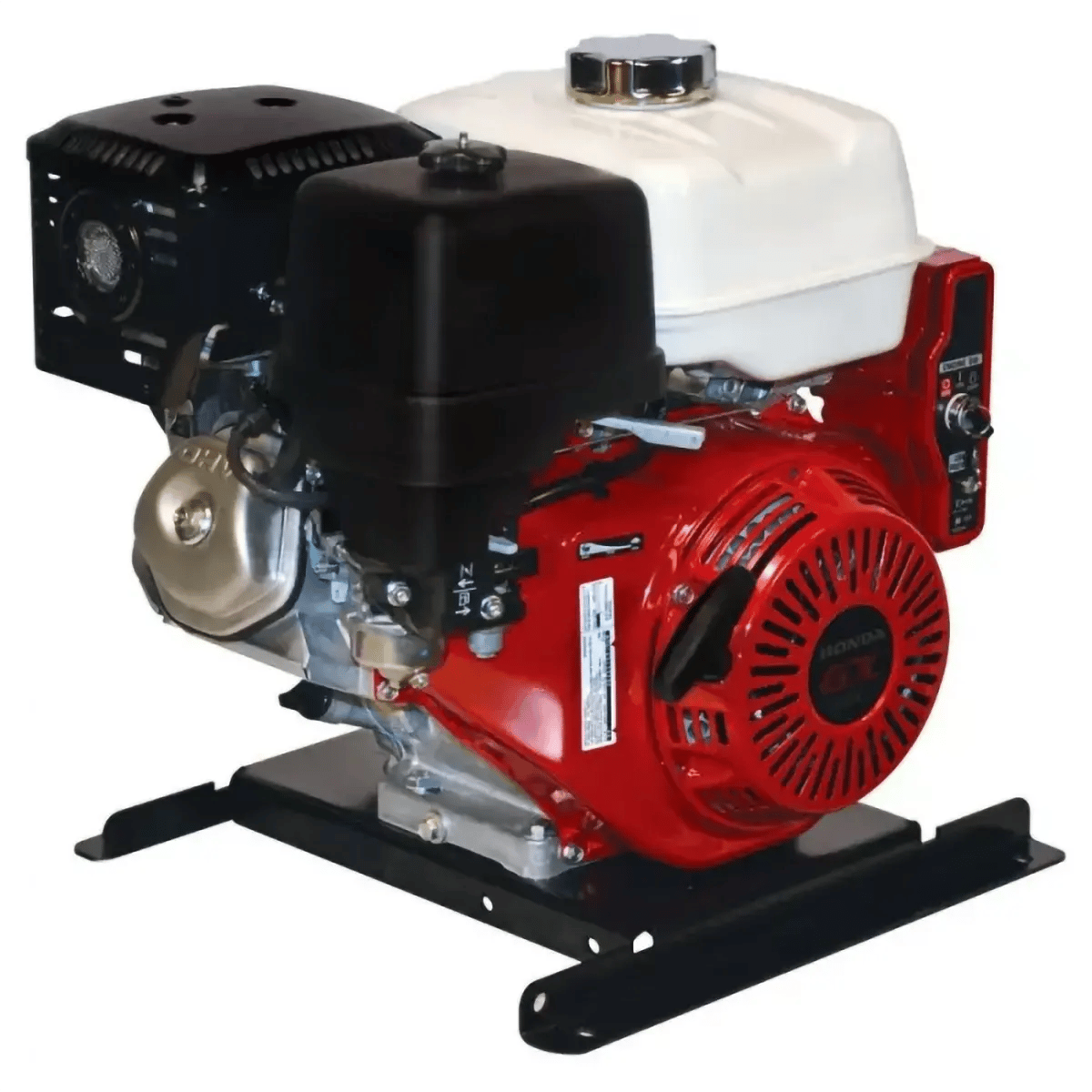

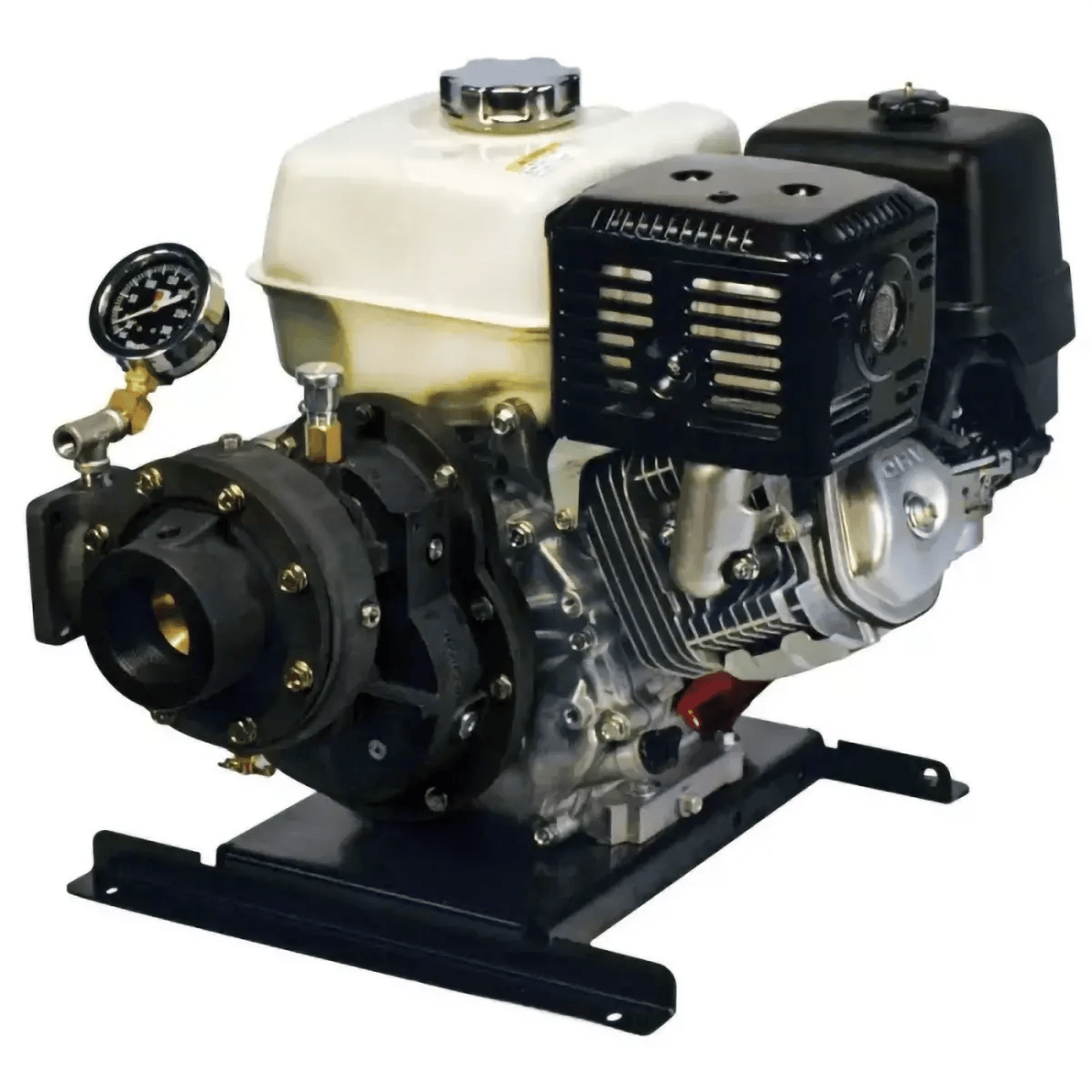

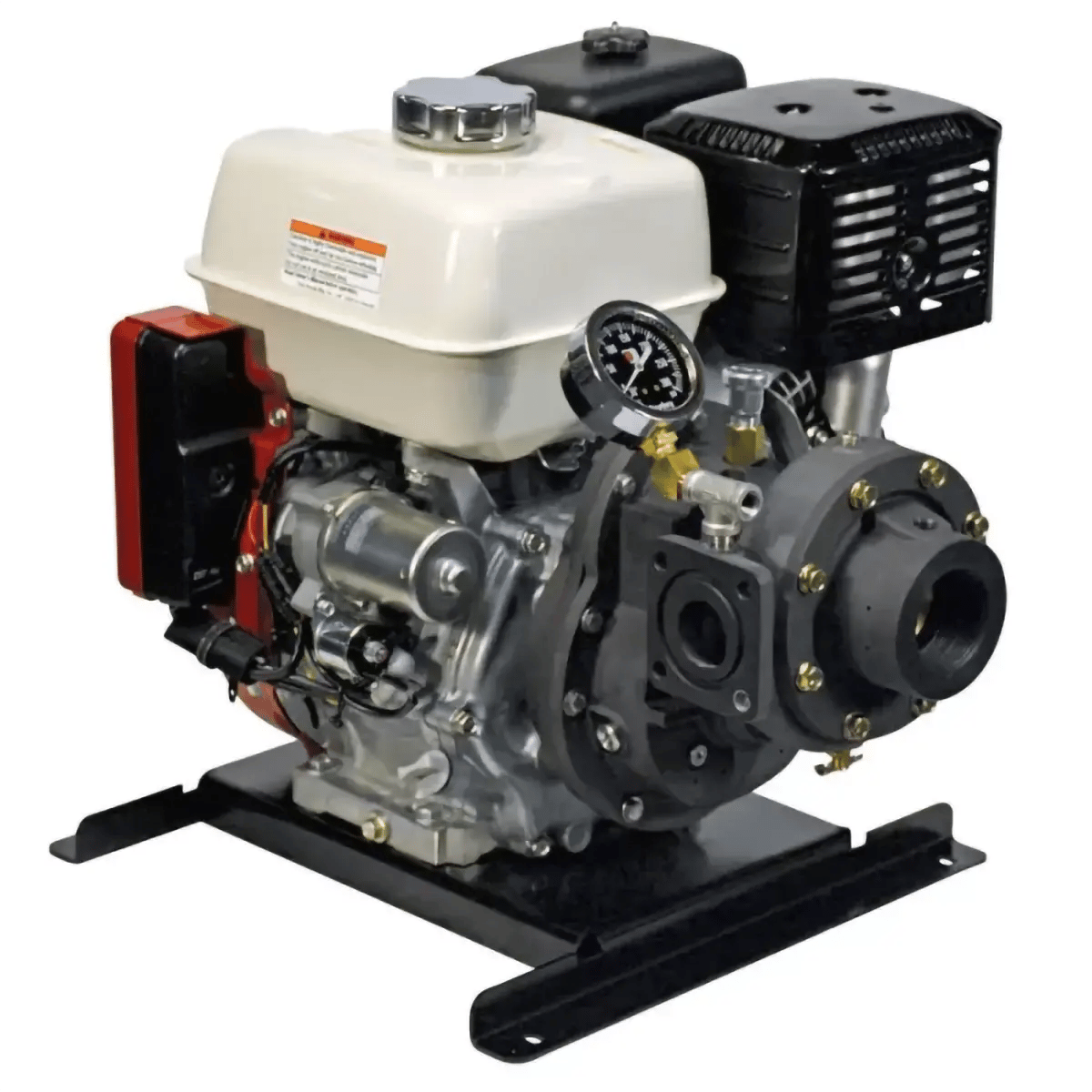

1.5AGE 13HX Portable Pump
SKU#: 1-1/2-AGE-13HX
The 1-1/2AGE 13HX Portable Pump is a high-performance, low-volume, gear-driven pump designed for demanding fire suppression tasks. Engine-mounted on brush trucks, this pump is ideal for wildland fire suppression operations.
Features
- Electric start with recoil rope backup
- Bronze impeller and wear rings
- Stainless steel shaft
- Mechanical seal
- Mounting base
- Hard-anodized aluminum alloy pump casing
- Aluminum alloy gear case and engine adapter
- Heat-treated alloy steel helical gears
- Ball bearing construction pump and engine
- 2" NPT suction
- 1-1/2" NPT flanged discharge
- 2+ hours of runtime per tankful of fuel at 23 GPM @ 175 psi
- 2.45:1 gear ratio
- Discharge pressure gauge
Applications
- Brush truck
- Wildland/attack fire suppression
- Booster reel
Contact Us for Price
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Performance
Standard Stock ratio 2.45:1 gear ratio performance
- 23 GPM @ 225 PSI
- 100 GPM @ 85 PSI
- 120 GPM @ 60 PSI
Also available with: 2.03:1 gear ratio performance:
- 23 GPM @ 175 PSI
- 100 GPM @ 105 PSI
- 120 GPM @ 75 PSI
Engine
Honda GX390
- 13 hp
- 4-stroke
- Single-cylinder OHV
- Ball bearing-supported crankshaft
- 6.4 qt. gas tank
- 12-volt starter
- electric start with recoil rope start back-up
- 3-amp regulated alternator
- electric start with recoil rope start back-up
Weight
- 150 lbs. (68 kg)
Dimensions
- 23.5"L x 20"W x 19.25"H
