Darley

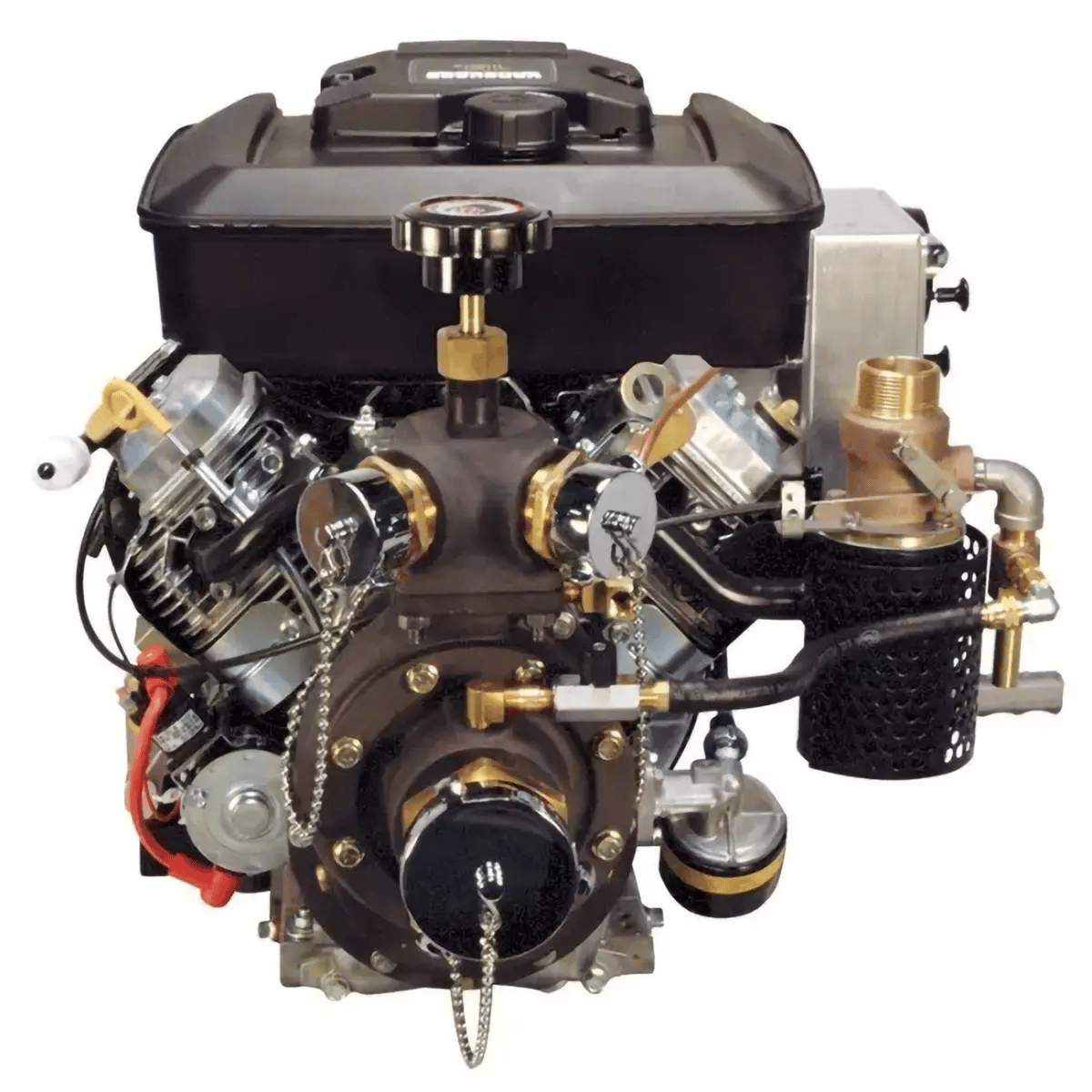

1.5 AGE 13V Twin Portable Pump
SKU#: 1-1/2AGE 13V-TWIN
The 1-1/2AGE 13V Twin Portable Pump is a medium-pressure, medium-volume, gear-driven pump designed for reliable performance in various applications. Engineered with precision, it is ideal for light-duty brush trucks and other demanding environments.
Fearutes
- Electric start with recoil rope backup
- Exhaust primer, bronze impeller, and wear rings
- Stainless steel shaft with mechanical seal
- Discharge head with a check valve
- Base with fold-away carrying handles
- Aluminum alloy gear case and engine adapter
- Heat-treated alloy steel helical gears
- 2″ NPT suction
- Two 1-1/2″ NPT or one 2-1/2″ NPT discharge
Applications
- Light-Duty Brush Trucks
Options
- Adapters
- Gauge
- Battery
- Caps
Contact Us for Price
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Performance
- 120 GPM (454 L/M) @ 80 PSI (5.5 bar)
- 100 GPM (378 L/M) @ 110 PSI (7.6 bar)
- 20 GPM (76 L/M) @ 185 PSI (12.8 bar)
Engine
Briggs & Stratton Vanguard
- 13 HP
- V-twin
- 8.35 qt. gas tank
- 12-volt starter with 16-amp regulated alternator
- Recoil rope start backup
Weight
- 145 lbs. (66 kg)
Dimensions
- 27"L x 21"W x 23"H
PDF Drawings
DWG Drawings
IGS 3D Files
Performance Curves
Repair Manual
Operation Manual
Order Form
