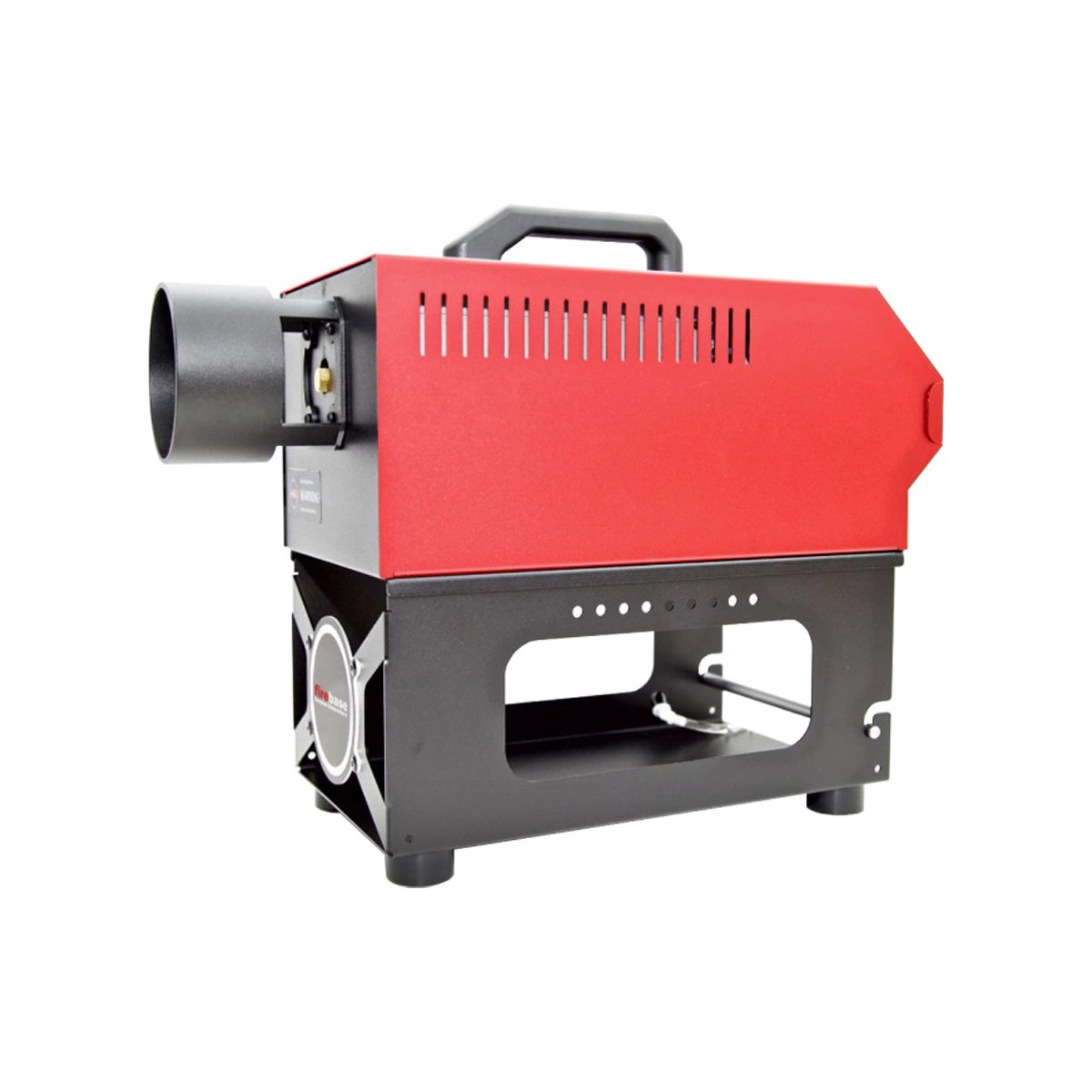

Firebase® SG-1700 Smoke Generator
SKU#: BR071
The Firebase® SG-1700 is a compact, high-output fog generator with continuous fogging, digital controls, and a 5L reservoir. Ideal for realistic training scenarios.
Price:$2,280.00
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Firebase® SG-1700 Smoke Generator is a compact and powerful fog machine designed for continuous output. Manufactured in Germany, it boasts high reliability and robustness, making it ideal for various applications. With a full 2-year warranty, this fog generator is built to last and perform under demanding conditions.
Features
- High Output: 1700W power, producing 50,000 CFM of fog.
- Compact Design: Easy to transport and set up, housed in a rugged custom flight case.
- Continuous Fogging: Capable of producing fog continuously.
- Integrated Timer: Allows for precise control over fog production.
- Adjustable Output: Digital technology enables variable output control from 0-100%.
- DMX Serial Production: Compatible with DMX512, RDM, Modbus RTU protocols.
- Highly Efficient: Extreme smoke to low power ratio.
- Versatile Mounting: Can be mounted standing or hanging, with orientation up to +/-40° from horizontal.
Fluid Compatibility
- While the Firebase® SG-1700 is optimized for water-based fluids, using other types of fluids (e.g., glycol-based, oil-based) is not recommended as it may affect performance and longevity.
Usage
- Training Environments: Ideal for small to large scale training scenarios.
- Industrial Applications: Used for testing and safety drills.
- Entertainment: Can be used for theatrical productions, concerts, and events.
Maintenance Information
- Fluid Reservoir: Check and refill the 5L drop-in reservoir as needed.
- Cleaning: Periodically clean the fluid pump and housing to prevent buildup.
- Inspection: Regularly inspect connections and controls for wear and tear.
Storage Information
- Store the Firebase® SG-1700 in a cool, dry place.
- Ensure the unit is securely housed in its flight case to protect it from damage during transportation and storage.
Included Items
- Firebase® SG-1700 Smoke Generator
- Fluid Reservoir: 5L tank.
- Power Input Cable: PowerCON TRUE1.
Physical Dimensions
- Length: 18.9"
- Width: 8.3"
- Height: 15.3"
- Net Weight: 30.8 lbs.
Performance
- Fluid Consumption: Up to 200 ml/min (full power mode), up to 40 ml/min (continuous fog).
- Ready Time: 12 minutes.
Control and Programming
- Control Options: DMX512, RDM, Modbus RTU, JT remote, Dial Cable remote control, radio remote control (optional), integrated timer, stand-alone.
- Fog Output: Variable control, 0-100%.
- DMX Channels: 1
Construction
- Housing: Metal.
- Color: Red and Black.
- Display: 1.3" OLED Display, Membrane Keyboard.
- Fluid Pump: Dual oscillating piston, high pressure.
- Fluid Reservoir: 5L drop-in reservoir.
Installation
- Mounting: Standing or hanging.
- Orientation: Up to +/-40° from horizontal.
Connections
- AC Power: PowerCON TRUE1.
- DMX, Link Mode In/Out: 5-pin locking.
Electrical
- US Model: AC power: 120 V, 60 Hz.
- Main Fuse: 15A, 250 V.
- Typical Power and Current: 1700 W.
