Rear View Safety Llc
Flagship Backup Camera System - FHD 1080P - 7"
SKU#: BL700
Ships via Standard Ground
The FHD 1080p Flagship Backup Camera System delivers high‑definition visibility, rugged IP69K durability, night vision performance, and multi‑camera support purpose‑built to enhance safety and situational awareness for First Responder vehicles.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- High-Definition Resolution: 1080p HD output at 1920×1080@30fps/25fps for clear situational awareness
- Low‑Light Capability: 18 IR LEDs providing 50 ft night vision for reliable nighttime operation
- Ultra‑Wide Viewing Angle: 130° lens (F2.5) captures broad rear coverage for emergency vehicle maneuvers
- Durability: IP69K waterproof rating, 20G vibration rating, and 100G shock resistance for rugged field environments
- Enhanced Audio: Built‑in microphone to record ambient sound for incident documentation
- 7" LED Monitor: Crisp LED color display with optional grid lines, mirror/normal view mode, and integrated speaker
- Expandable System: 3‑port power harness supports up to 3 cameras total
- Wide Power Range: Operates on 9V–32V for compatibility with emergency vehicle fleets
What Is It?

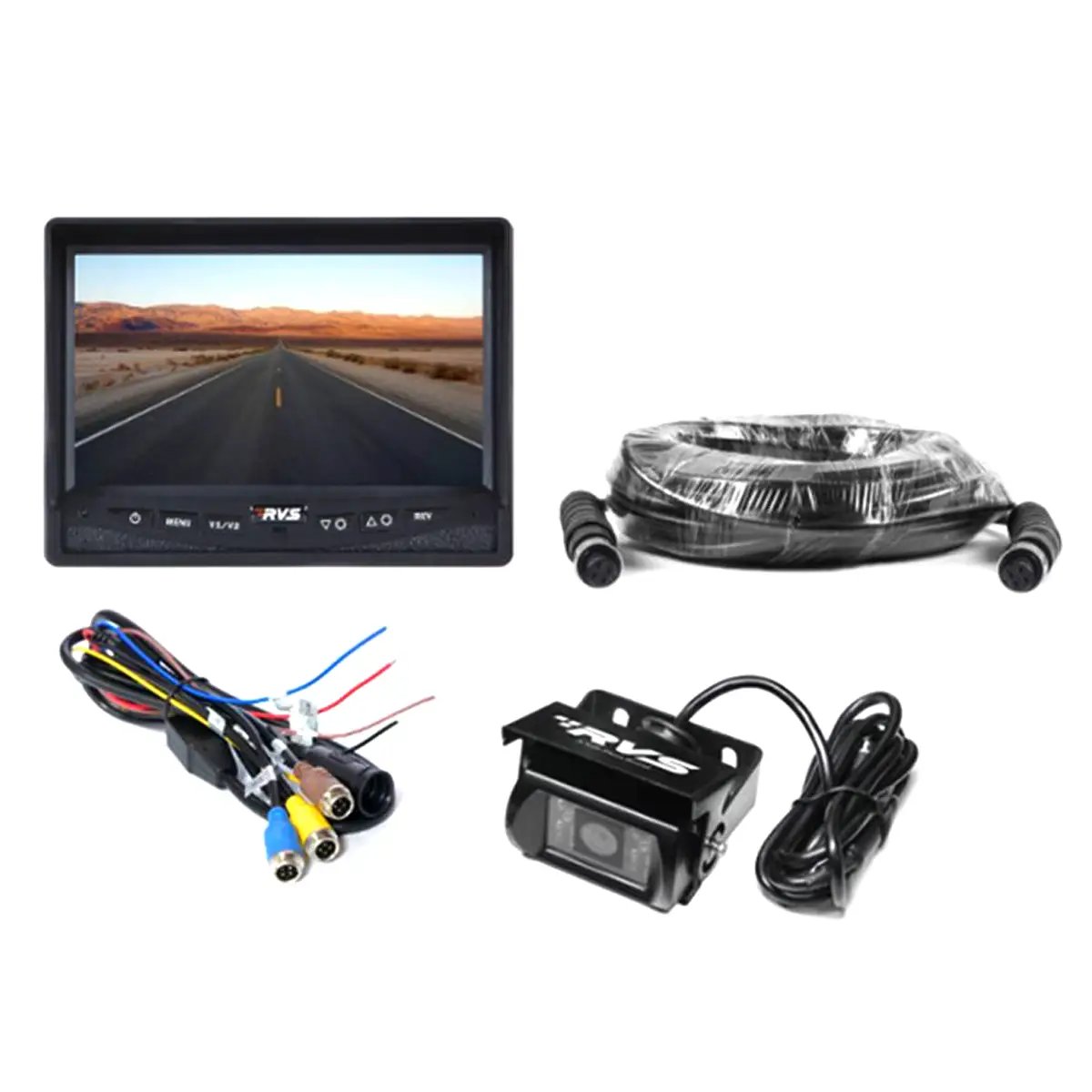

The FHD 1080p Flagship Backup Camera System (KT‑770M137D) is an advanced, high‑resolution rear camera and monitor system engineered to enhance visibility, documentation, and safety during emergency vehicle operations. It includes a rugged Sharp® CCD camera, infrared night vision, and a 7” LED monitor—optimized for demanding First Responder environments.
How Is It Used?
First Responders install the system on ambulances, fire apparatus, police units, and specialty response vehicles to:
- Improve rear situational awareness when navigating tight scenes
- Reduce collision risk during emergency response driving
- Document incidents with HD video and audio for review and reporting
- Enhance safety in low-light, smoke‑filled, or hazardous environments
Who Uses It?
This system is ideal for:
- Fire Departments
- EMS / Ambulance Fleets
- Law Enforcement
- Search & Rescue
- Municipal and Public Safety Agencies
Maintenance Information
- Inspect camera lens and monitor screen regularly for debris or damage.
- Verify IR illumination functionality during nighttime checks.
- Review cable connections and mounting hardware to ensure secure placement, especially after high‑vibration events (system rated to 20G vibration and 100G shock).
- Keep the IP69K housing clean to maintain waterproof integrity.
- Test audio recording and display modes during fleet PM intervals.
What Is It Used With?
- Compatible with up to two additional CVBS cameras via the included 3‑port harness
- Can integrate with onboard video systems commonly used in First Responder fleets (industry standard practice)
Camera
- Image sensor: Sharp® CCD
- Resolution output: 1920×1080 @ 30fps/25fps
- Lens (aperture): F2.5
- Field of view: 150° (ultra‑wide)
- Night vision: 18 infrared LEDs, 50 ft range
- LED control: Auto on/off via CDS sensor
- Audio: Built‑in microphone
- Waterproof rating: IP69K
- Shock rating: 100G
- Vibration rating: 20G
- S/N ratio: ≥ 50 dB (AGC off)
- Power input: 12V
- Power consumption: Max 180 mA (IR on), Max 90 mA (IR off)
- Operating temperature: −40°C to +70°C
- Storage temperature: −40°C to +85°C (humidity RH 85% max)
- Ambient humidity: RH 85% max
- Dimensions (with bracket): 3.25" (H) × 3" (L) × 1.5" (D)
- Dimensions (without bracket): 1.875" (H) × 2.625" (L)
- Net weight: 17.64 oz
Monitor (7" LED Digital Display)
- Screen size: 7"
- Display type: LED digital display
- Dot resolution: 1280 × 720
- Aspect ratio: 16:9
- Brightness: 400 cd/m²
- Contrast ratio: 500:1
- Field of view: Up 50°, Down 60°, Left/Right 70°
- Video system: Auto NTSC/PAL
- Camera inputs: 3‑channel CVBS
- Video source: 1 Vp‑p, 75 Ω
- Power supply: DC 9V–32V
- Power consumption: 5 W
- Operating temperature: −20°C to +70°C
- Storage temperature: −30°C to +85°C
- Impact rating: 5G
- Dot pitch: 0.1926 (H) × 0.1710 (V)
- Sync system: Internal
- Overall dimensions: 7" (L) × 5" (H) × 1" (D)
- Weight: 400 g
- Audio: Built‑in speaker
- Display options: Optional distance grid lines; normal/mirror image
System & Installation
- Upgrade note: FHD system upgrade to RVS‑770613‑NM
- Harness: 3‑port power harness (supports connection of two additional cameras; 3 total)
- Warranty: 1 year
- Model: KT‑770M137D
