Rear View Safety Llc
Backup Camera System with 3-Channel 5" LCD Monitor and Power Harness
SKU#: BL699
Ships via Standard Ground
Rugged IP69K backup camera system with a crystal‑clear 5" TFT LCD and 3‑channel power harness. Delivers a 130° wide view, 50 ft IR night vision, built‑in audio, and high shock/vibration ratings to withstand fire, EMS, and law enforcement duty cycles.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- 5" TFT LCD Monitor: Compact, digital color display with optional distance grid lines; supports up to 3 camera inputs via power harness.
- Ultra‑Wide View: Primary camera provides a 130° viewing angle to reduce blind spots around apparatus and utility vehicles.
- Night Vision: 18 infrared LEDs deliver up to 50 ft of IR night vision for low‑light operations.
- Ruggedized, Mission‑Ready: Rear camera is IP69K waterproof/dustproof and rated 20G vibration / 100G impact (industry‑leading). Monitor vibration rating 5G.
- Audio Built‑In: Integrated microphone (camera) and speaker (monitor) support situational awareness during backing and spotter comms.

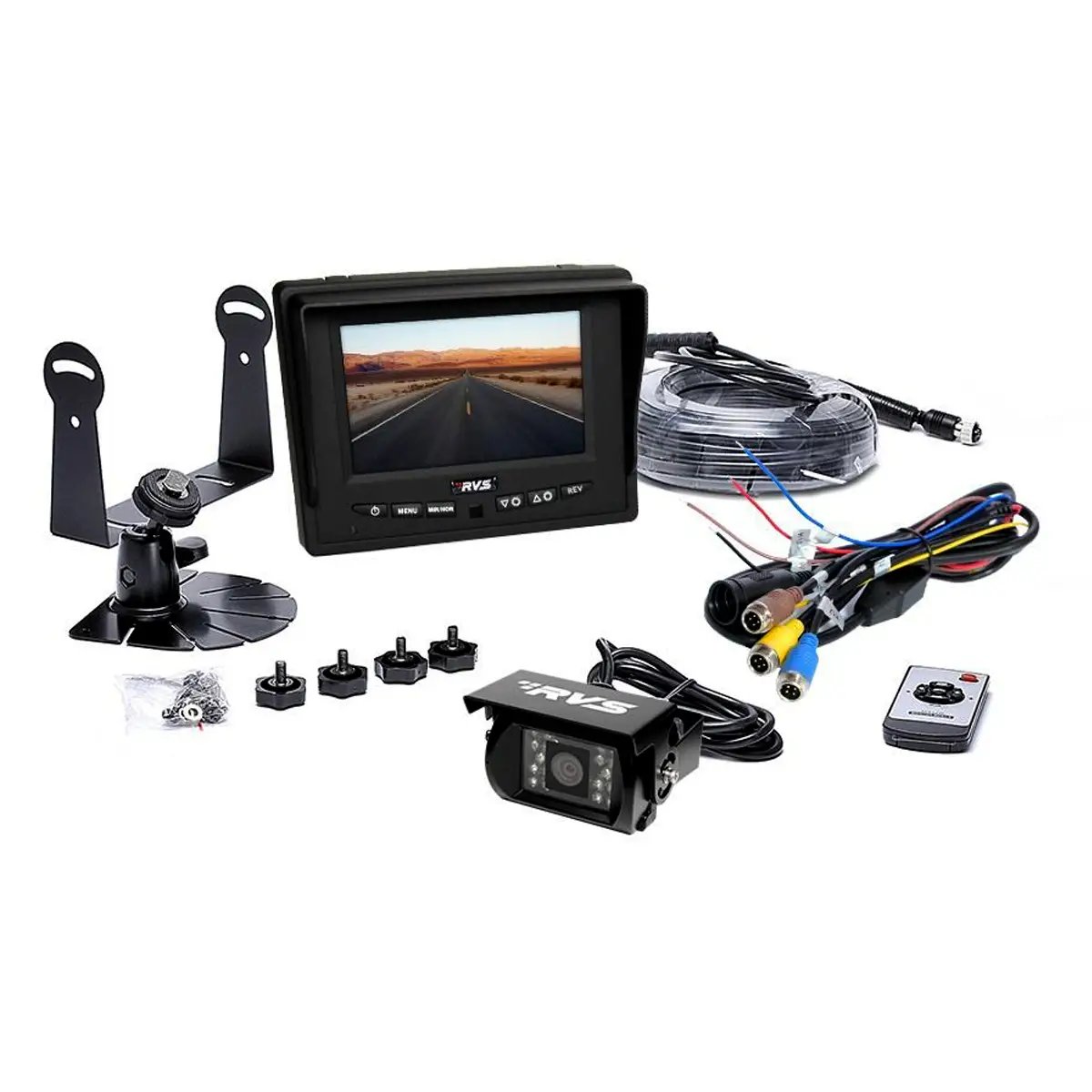

- All‑in‑One Kit: Includes one 130° CCD camera, 66' camera cable, power harness with 3 inputs, monitor mount, connectors, and hardware (per manual/in‑box)
- SKU & Cross‑Reference: Legacy designation RVS‑7706035.
What is it?
A commercial‑grade, wired backup camera system designed to enhance rear visibility and reduce backing incidents on emergency and fleet vehicles. It pairs a 5" TFT LCD, 3‑input monitor with a 130° color CCD camera engineered for harsh environments (IP69K, high shock/vibration).
How is it used?
Mount the weatherproof camera at the rear of the vehicle and install the 5" monitor on the dash or overhead using the included bracket. Connect via the provided power harness to enable up to three camera channels (e.g., rear + side views). Optional distance grid lines can be toggled on the monitor. The system auto‑switches when set up with reverse/trigger wiring, displaying the relevant view during backing.
Who uses it?
Built for First Responders and fleet operators who demand reliability under stress—fire apparatus, ambulances, law enforcement SUVs, utility trucks, public works, and vocational fleets—needing rugged, IP69K camera visibility with multi‑camera expandability.
Maintenance information
- Routine inspection: Check camera lens for debris; clean with non‑abrasive cloth. Verify connectors are fully seated and free of corrosion.
- Cable care: Secure and route away from heat/moving parts per the installation manual to prevent wear or electrical noise.
- Firmware/Settings: Periodically review monitor settings (grid lines, channel triggers) for operational needs after vehicle service.
What is it used with?
- Side cameras (left/right) and additional specialty views can be added to the 3‑channel monitor to create a broader surround‑view setup. Compatible ecosystem examples include RVS side cameras and accessory harnesses/cables.
- Standard automotive 12–32V DC systems; interfaces with CVBS video (1 Vp‑p, 75Ω).
What material is it made from?
The camera housing is described as heavy‑duty zinc metal with a Sharp® lens assembly; connectors are designed as sealed, “aircraft‑grade” style for durability in service.
- Model: CG-1B35D
Monitor (5" TFT LCD):
- Type: TFT LCD; Size: 5"
- Dot resolution: 480 × 3 (RGB) × 272
- Format/Contrast: 16:9 / 500:1
- Brightness: 300 cd/m²
- Viewing angle: U 40°, D 40°, L/R 70°
- Inputs: 3‑channel video
- Video source: 1 Vp‑p, 75Ω
- Video system: Auto NTSC/PAL
- Power: DC 9–32V, ~5 W
- Operating temp: −30°C to +70°C
- Storage: −30°C to +80°C
- Overall dimensions: 5" (L) × 5" (H) × 1" (D)
- Weight: 400 g
- Vibration rating: 5G
Camera (Rear):
- Sensor: 1/3" Sharp® Color CCD
- TV lines: 620
- Pixels: PAL 752(H)×582(V); NTSC 811(H)×507(V)
- Lens: F=2.5 mm
- View angle: 130°
- Night vision: 18 IR LEDs, 50 ft
- Usable illumination: 0 lux (IR on)
- Waterproof: IP69K
- Vibration/Impact: 20G / 100G
- Power: DC 9–32V
- S/N ratio: >48 dB
- Video output: 1 Vp‑p, 75Ω
- Electronic iris: 1/50,160–1/100,000
- IR switch: ACDS Automatic
- Operating temp: −40°C to +70°C (RH 95% max)
- Storage: −40°C to +85°C (RH 95% max)
